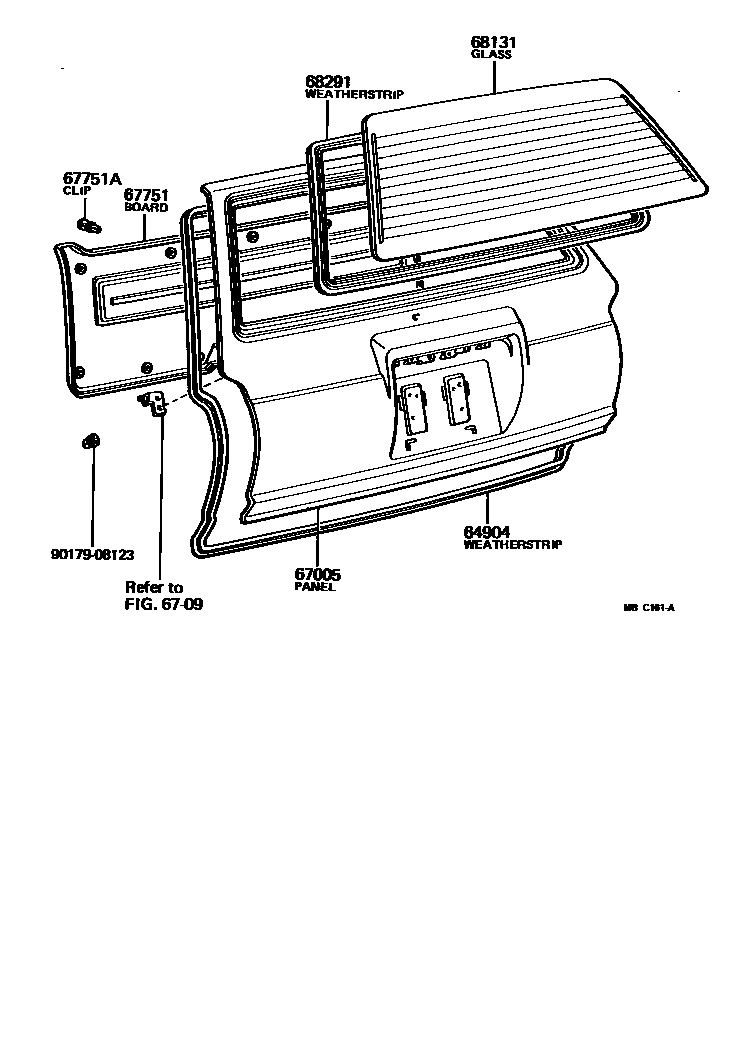

BACK DOOR PANEL & GLASS

64904WEATHERSTRIP SUB-ASSY, BACK DOOR

main67881-91255iMX62..WG198009-198407

67005PANEL SUB-ASSY, BACK DOOR

main67005-91686iMX62..WG198009-198208

main67005-91A09iMX62198208-198407

6709BACK DOOR LOCK & HANDLE

→ Go to FIG 67-09

67751BOARD, BACK DOOR TRIM

main67750-91601-01iMX62..WG198009-198208

BLACK,BLACK

main67750-91601-04iMX62..WG198009-198208

BLUE,BLUE

main67750-91601-06iMX62..WG198009-198208

D-BROWN,BROWN

main67750-91602-06iMX62198208-198407

D-BROWN,BROWN

main67750-91602-12iMX62198208-198407

DEEP MAROON,RED/MAROON

main67750-91602-14iMX62198208-198407

BLUE,BLUE

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-08114-11×13iMX62..WG198009-198208

BLACK,BLACK

main90467-08114-22×13iMX62198208-198407

DEEP MAROON,RED/MAROON

main90467-08114-24×13iMX62..WG198009-198208

BLUE,BLUE

main90467-08114-34×13iMX62198208-198407

BLUE,BLUE

main90467-08114-36×13iMX62..WG198009-198407

D-BROWN,BROWN

68131GLASS, BACK DOOR

main68105-91612iMX62..WG198009-198108

*EHTT,T=4.0

main68105-91627iMX62..WG198009-198108

*EHTT,T=4.0,COLD SPEC

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-91609iMX62..WG198009-198407

9017908123

main90179-08123

8 parts on this diagram · 1 diagram in section
