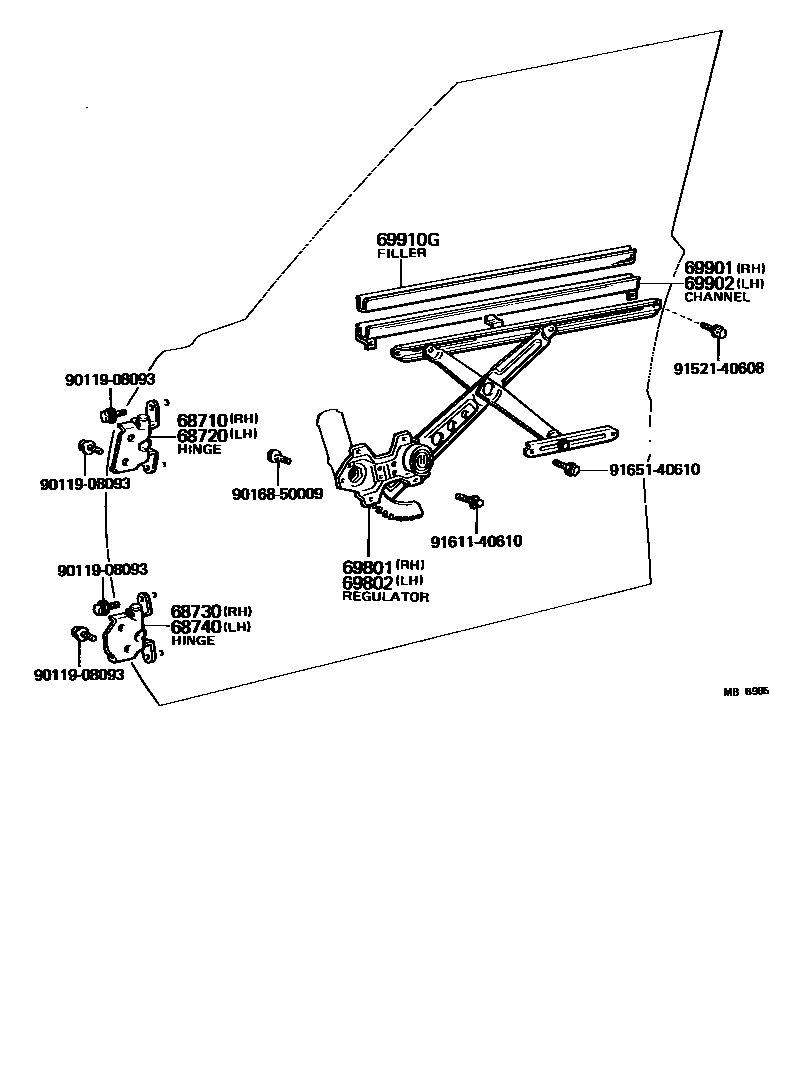

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-22040iMX6#198009-198407

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-22030iMX6#198009-198407

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-20070iMX6#198009-198407

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-20070iMX6#198009-198407

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-22070iMX62198009-198011

main69801-22071iMX6#198011-198407

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-22070iMX62198009-198011

main69802-22071iMX6#198011-198407

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-22060iMX6#198009-198407

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-22020iMX6#198009-198407

69910GFILLER, FRONT DOOR GLASS CHANNEL

main69971-22040×2iMX62198009-198407

9011908093

main90119-08093

9016850009

main90168-50009

9152140608

main91521-40608

9161140610

main91611-40610

9165140610

main91651-40610

14 parts on this diagram · 1 diagram in section
