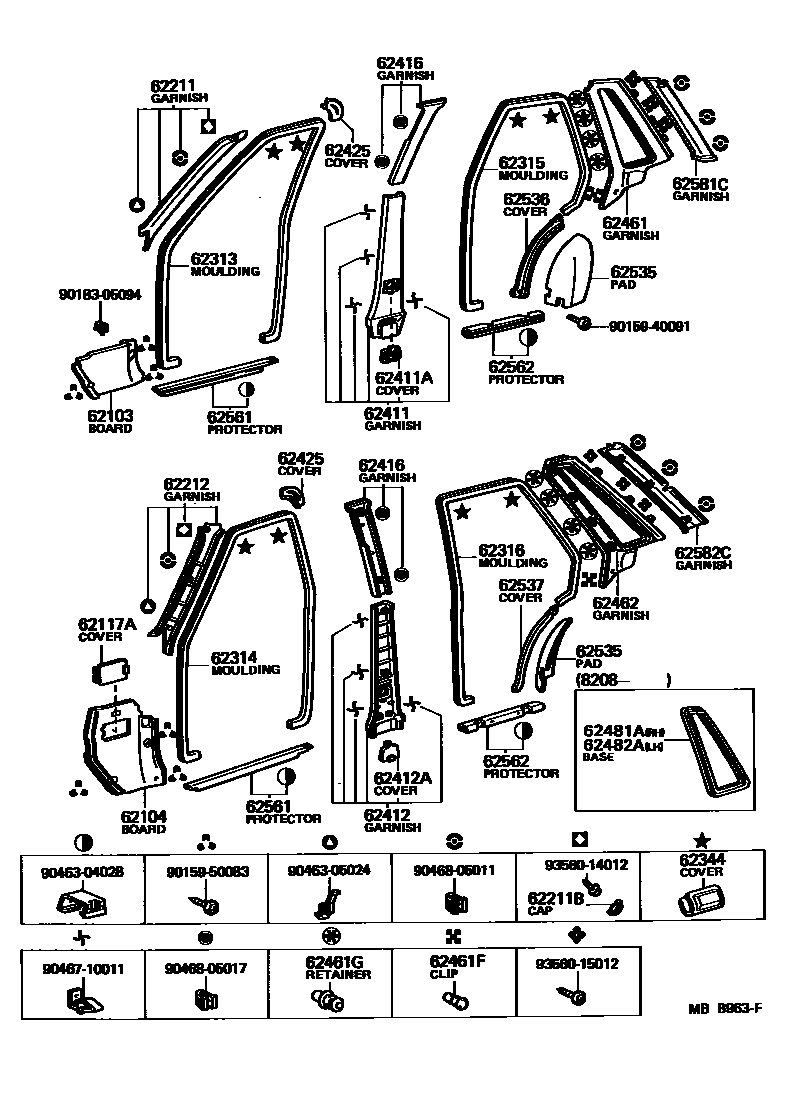

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62103BOARD SUB-ASSY, COWL SIDE TRIM, RH
BLACK,BLACK
BLUE,BLUE
D-BROWN,BROWN
DEEP MAROON,RED/MAROON
D-BROWN,BROWN
BLUE,BLUE
D-BROWN,BROWN
BLUE,BLUE
62104BOARD SUB-ASSY, COWL SIDE TRIM, LH
BLACK,BLACK
BLUE,BLUE
D-BROWN,BROWN
DEEP MAROON,RED/MAROON
D-BROWN,BROWN
BLUE,BLUE
D-BROWN,BROWN
BLUE,BLUE
62117ACOVER, COWL SIDE TRIM SERVICE HOLE
BLACK,BLACK
BLUE,BLUE
D-BROWN,BROWN
DEEP MAROON,RED/MAROON
D-BROWN,BROWN
BLUE,BLUE
62211GARNISH, FRONT PILLAR, RH
BLACK,BLACK
BLUE,BLUE
D-BROWN,BROWN
DEEP MAROON,RED/MAROON
BLUE,BLUE
D-BROWN,BROWN
62211BCAP, FRONT PILLAR GARNISH SETTING
BLACK,BLACK
BLUE,BLUE
D-BROWN,BROWN
DEEP MAROON,RED/MAROON
BLUE,BLUE
D-BROWN,BROWN
62212GARNISH, FRONT PILLAR, LH
BLACK,BLACK
BLUE,BLUE
D-BROWN,BROWN
DEEP MAROON,RED/MAROON
BLUE,BLUE
D-BROWN,BROWN
62313MOULDING, FRONT DOOR OPENING TRIM, RH
62314MOULDING, FRONT DOOR OPENING TRIM, LH
62315MOULDING, REAR DOOR OPENING TRIM, RH
BLACK,BLACK
DEEP MAROON,RED/MAROON
BLUE,BLUE
D-BROWN,BROWN
BLUE,BLUE
62316MOULDING, REAR DOOR OPENING TRIM, LH
BLACK,BLACK
DEEP MAROON,RED/MAROON
BLUE,BLUE
D-BROWN,BROWN
BLUE,BLUE
62344COVER, DOOR OPENING TRIM MOULDING
BLACK,BLACK
DEEP MAROON,RED/MAROON
BLUE,BLUE
D-BROWN,BROWN
BLUE,BLUE
62411GARNISH, CENTER PILLAR, RH
BLACK,BLACK
DEEP MAROON,RED/MAROON
BLUE,BLUE
D-BROWN,BROWN
BLUE,BLUE
62411ACOVER, CENTER PILLAR GARNISH BELT HOLE, RH
BLACK,BLACK
DEEP MAROON,RED/MAROON
BLUE,BLUE
D-BROWN,BROWN
BLUE,BLUE
62412GARNISH, CENTER PILLAR, LH
BLACK,BLACK
DEEP MAROON,RED/MAROON
BLUE,BLUE
D-BROWN,BROWN
BLUE,BLUE
62412ACOVER, CENTER PILLAR GARNISH BELT HOLE, LH
BLACK,BLACK
DEEP MAROON,RED/MAROON
BLUE,BLUE
D-BROWN,BROWN
BLUE,BLUE
62416GARNISH, CENTER PILLAR, UPPER
RH,BLACK,BLACK
RH,DEEP MAROON,RED/MAROON
RH,BLUE,BLUE
RH,D-BROWN,BROWN
RH,BLUE,BLUE
RH,BLACK,BLACK
RH,DEEP MAROON,RED/MAROON
RH,BLUE,BLUE
RH,D-BROWN,BROWN
RH,BLUE,BLUE
LH,BLACK,BLACK
LH,DEEP MAROON,RED/MAROON
LH,BLUE,BLUE
LH,D-BROWN,BROWN
LH,BLUE,BLUE
LH,BLACK,BLACK
LH,DEEP MAROON,RED/MAROON
LH,BLUE,BLUE
LH,D-BROWN,BROWN
LH,BLUE,BLUE
62425COVER, CENTER PILLAR GARNISH
BLACK,BLACK
DEEP MAROON,RED/MAROON
BLUE,BLUE
D-BROWN,BROWN
BLUE,BLUE
62461GARNISH, ROOF SIDE TRIM, RH
BLACK,BLACK
BLUE,BLUE
D-BROWN,BROWN
DEEP MAROON,RED/MAROON
BLUE,BLUE
D-BROWN,BROWN
DEEP MAROON,RED/MAROON
BLUE,BLUE
D-BROWN,BROWN
62461FCLIP (FOR ROOF SIDE TRIM GARNISH)
62461GRETAINER, DOOR TRIM
62462GARNISH, ROOF SIDE TRIM, LH
DEEP MAROON,RED/MAROON
BLUE,BLUE
D-BROWN,BROWN
BLACK,BLACK
BLUE,BLUE
D-BROWN,BROWN
62481ABASE, ROOF SIDE INNER GARNISH, RH
62482ABASE, ROOF SIDE INNER GARNISH, LH
62535PAD, QUARTER WHEEL HOUSE TRIM
62536COVER, QUARTER WHEEL HOUSE TRIM FRONT, RH
ROSE BEIGE,RED/MAROON
GRAY,GRAY
BLUE,BLUE
GREIGE,BEIGE
L-BROWN,BROWN
BLUE,BLUE
L-BROWN,BROWN
BLUE,BLUE
62537COVER, QUARTER WHEEL HOUSE TRIM FRONT, LH
ROSE BEIGE,RED/MAROON
GRAY,GRAY
BLUE,BLUE
GREIGE,BEIGE
L-BROWN,BROWN
BLUE,BLUE
L-BROWN,BROWN
BLUE,BLUE
62561PROTECTOR, ROCKER PANEL, INNER FRONT
RH
RH
LH
LH
62562PROTECTOR, ROCKER PANEL, INNER REAR
62581CGARNISH, REAR WINDOW SIDE, RH
BLACK,BLACK
DEEP MAROON,RED/MAROON
BLUE,BLUE
D-BROWN,BROWN
BLUE,BLUE
DEEP MAROON,RED/MAROON
BLUE,BLUE
D-BROWN,BROWN
62582CGARNISH, REAR WINDOW SIDE, LH
BLACK,BLACK
DEEP MAROON,RED/MAROON
BLUE,BLUE
D-BROWN,BROWN
BLUE,BLUE
DEEP MAROON,RED/MAROON
BLUE,BLUE
D-BROWN,BROWN
9015940091
main90159-40091
9015950083
main90159-50083
9018305094
main90183-05094
9046304028
main90463-04028
9046305024
main90463-05024
9046710011
main90467-10011
9046805011
main90468-05011
9046805017
main90468-05017
9356014012
main93560-14012
9356015012
main93560-15012
40 parts on this diagram · 3 diagrams in section
