Toyota CRESSIDA — FLOOR INSULATOR

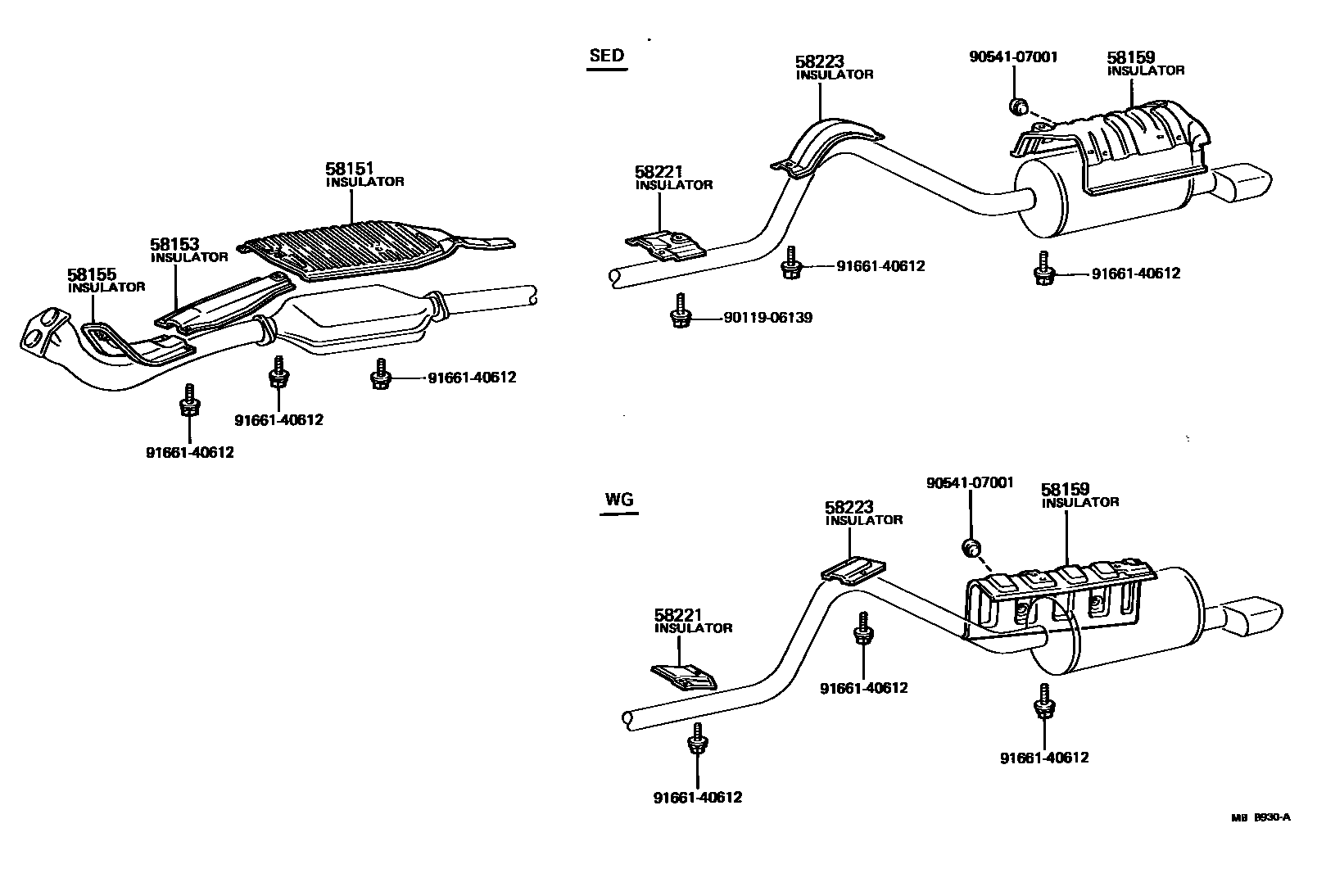

Parts diagram

58151INSULATOR, FRONT FLOOR HEAT, NO.1

58153INSULATOR, FRONT FLOOR HEAT, NO.2

58155INSULATOR, FRONT FLOOR HEAT, NO.3

58159INSULATOR, MAIN MAFFLAR HEAT

58221INSULATOR, CENTER FLOOR HEAT, NO.1

58223INSULATOR, CENTER FLOOR HEAT, NO.2

9011906139

9054107001

9166140612

9 parts on this diagram · 1 diagram in section

FLOOR INSULATOR for Toyota CRESSIDA

This section contains 9 genuine Toyota parts for the FLOOR INSULATOR system of the Toyota CRESSIDA. Key components include: INSULATOR, FRONT FLOOR HEAT, NO.1, INSULATOR, FRONT FLOOR HEAT, NO.2, INSULATOR, FRONT FLOOR HEAT, NO.3, INSULATOR, MAIN MAFFLAR HEAT, INSULATOR, CENTER FLOOR HEAT, NO.1.
