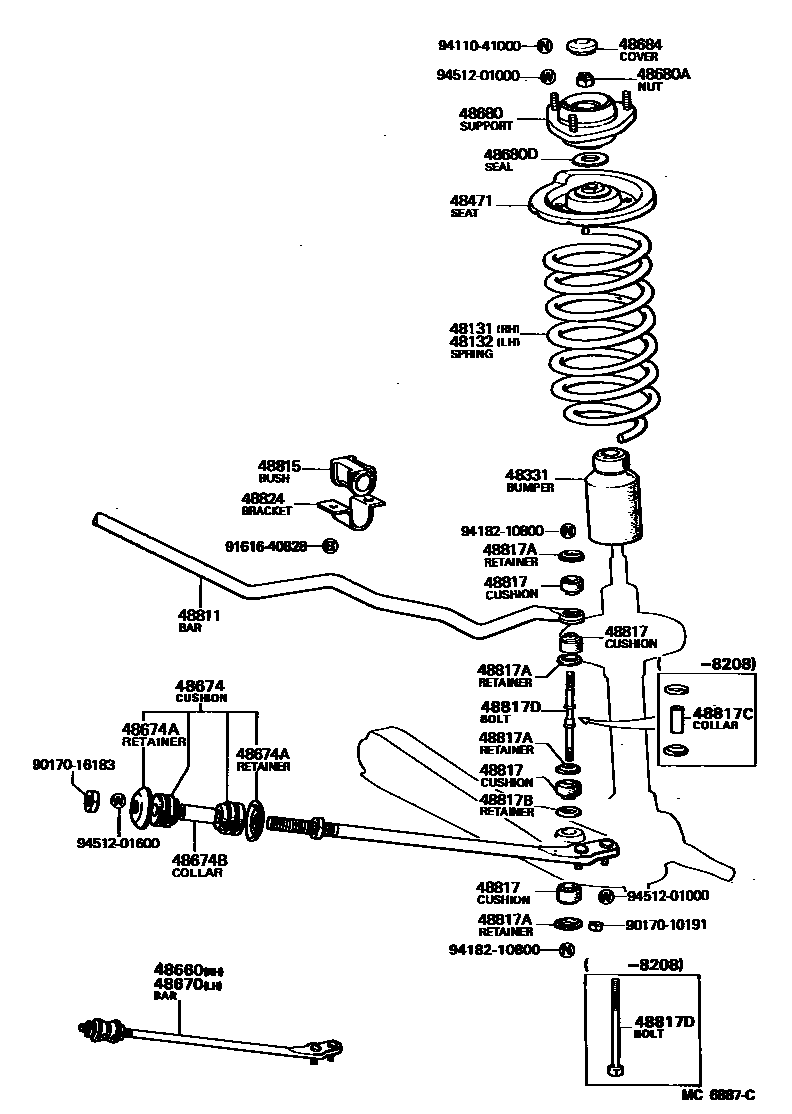

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48331BUMPER, FRONT SPRING, NO.1
48471SEAT, FRONT SPRING, UPPER
48660BAR ASSY, STRUT, RH
48670BAR ASSY, STRUT, LH
48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)
48674BCOLLAR(FOR STRUT BAR CUSHION)
48680SUPPORT ASSY, FRONT SUSPENSION
RH
LH
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
48684COVER, BEARING DUST
48815BUSH, FRONT STABILIZER BAR, NO.1
48817CUSHION, FRONT STABILIZER
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
48817CCOLLAR(FOR STABILIZER BAR)
48817DBOLT(FOR FRONT STABILIZER)
48824BRACKET, STABILIZER, FRONT
9017010191
main90170-10191
9017016183
main90170-16183
9161640828
main91616-40828
9411041000
main94110-41000
9418210800
main94182-10800
9451201000
main94512-01000
9451201600
main94512-01600
28 parts on this diagram · 2 diagrams in section
