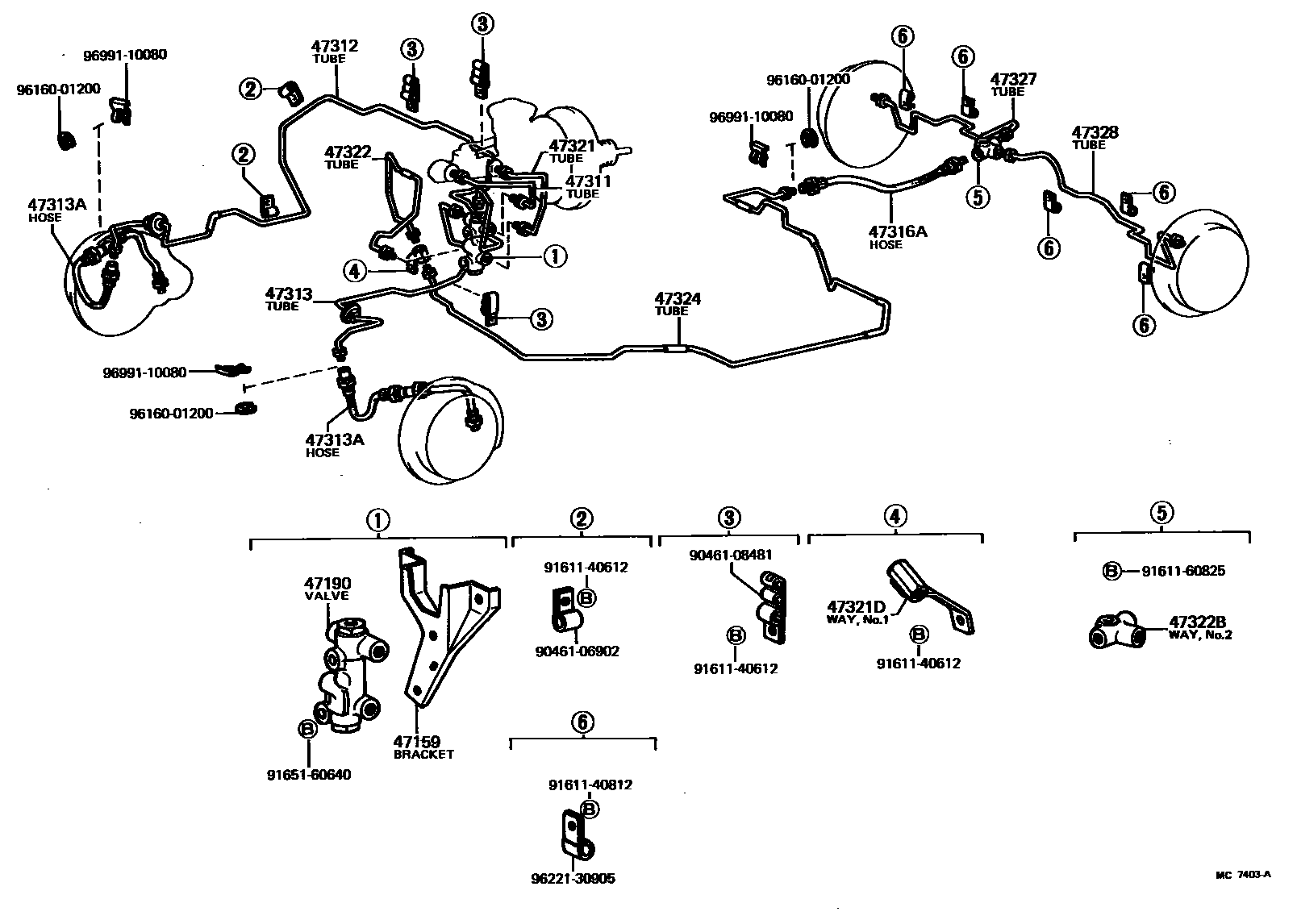

BRAKE TUBE & CLAMP

0001 1 0002 1

47159BRACKET, PROPORTIONING VALVE

main47159-22110iMX6#198009-198407

47190VALVE ASSY, PROPORTIONING & BY-PASS

main47190-22030iMX63198208-198407

main47190-22040iMX62198009-198407

47311TUBE, FRONT BRAKE, NO.1

main47311-22190iMX6#198009-198407

47312TUBE, FRONT BRAKE, NO.2

main47312-22070iMX62198009-198208

main47312-22100iMX6#198208-198407

47313TUBE, FRONT BRAKE, NO.3

main47313-22200iMX6#198009-198407

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02407×2iMX6#198009-198407

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96940-32855iMX62..SED198009-198208

main96940-33055iMX62..WG198009-198407

47321TUBE, REAR BRAKE, NO.1

main47321-22040iMX6#198009-198407

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10017iMX62198009-198101

main90412-10093iMX6#198101-198407

47322TUBE, REAR BRAKE, NO.2

main47322-22050iMX6#198009-198407

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10076iMX63198208-198407

main90413-10098iMX62198009-198407

47324TUBE, REAR BRAKE, NO.4

main47324-22110iMX62..SED198009-198208

main47324-22160iMX63198208-198407

main47324-23070iMX62..WG198009-198407

47327TUBE, REAR BRAKE, NO.7

main47327-22020iMX63198208-198407

main47327-22070iMX62..SED198009-198208

main47327-23040iMX62..WG198009-198407

47328TUBE, REAR BRAKE, NO.8

main47328-22020iMX63198208-198407

main47328-22070iMX62..SED198009-198208

main47328-23040iMX62..WG198009-198407

9046106902

main90461-06902

9046108481

main90461-08481

9161140612

main91611-40612

9161140812

main91611-40812

9161160825

main91611-60825

9165160640

main91651-60640

9616001200

main96160-01200

9622130905

main96221-30905

9699110080

main96991-10080

23 parts on this diagram · 2 diagrams in section
