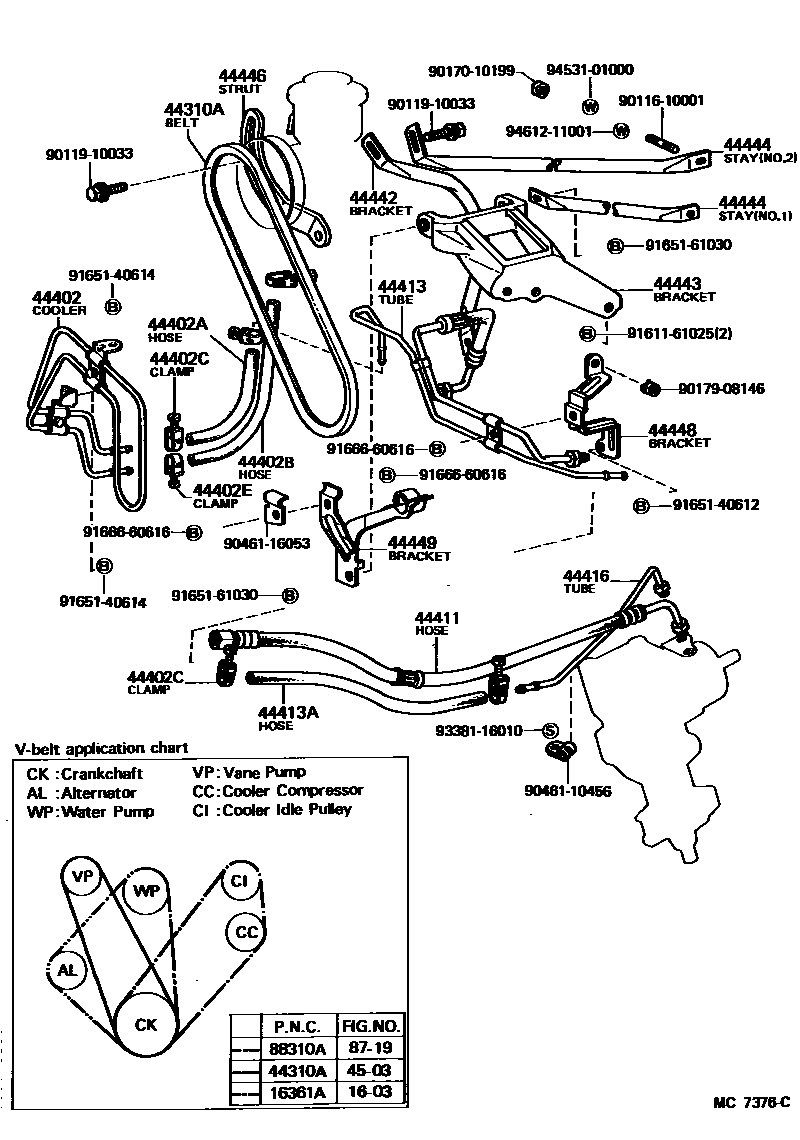

POWER STEERING TUBE

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02085i5M#..MX6#198009-198308

DOUBLE V BELTS,L=925

main99367-00920i5MGE..MX6#198308-198407

44310ABELT, V(FOR VANE PUMP)

main90916-02088iMX62198009-198208

main90916-02104iMX6#198208-198407

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-22060iMX62198009-198208

main44402-22090iMX6#198208-198407

44402AHOSE, POWER STEERING OIL COOLER INLET

main44412-22030iMX62198009-198208

main44412-22080iMX6#198208-198407

44402BHOSE, POWER STEERING OIL COOLER OUTLET

main44412-22030iMX62198009-198208

main44412-22070iMX6#198208-198407

44402CCLAMP, POWER STEERING OIL COOLER INLET HOSE

main90460-01001×4iMX62198009-198208

44402ECLAMP, POWER STEERING OIL COOLER OUTLET HOSE

main90460-01001×2iMX6#198009-198407

44411HOSE, PRESSURE FEED

main44411-22200iMX62198009-198208

44413TUBE, PRESSURE FEED, NO.1

main44410-22110iMX6#198208-198407

GEAR HOUSING SIDE

main44410-22120iMX6#198208-198407

VANE PUMP SIDE

main44413-22090iMX62198009-198208

44413AHOSE(FOR RETURN TUBE OUTLET)

main44412-22020iMX6#198208-198407

main90445-18094iMX62198009-198208

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-22031iMX62198009-198208

main44416-22140iMX6#198208-198407

44442BRACKET, PUMP, REAR

main44442-22030iMX62198009-198208

main44442-24010iMX6#198208-198308

main44442-24020iMX6#198308-198407

44443BRACKET, PUMP

main44443-24010iMX6#198208-198407

main44443-30051iMX62198009-198208

44444STAY, PUMP, REAR

main44444-22030iMX62198009-198208

NO.2

main44444-24010iMX6#198208-198407

main44444-30061iMX62198009-198208

NO.1

44446STRUT, ADJUSTING

main44446-24010iMX6#198208-198407

main44446-30040iMX62198009-198208

44448BRACKET, PRESSURE FEED HOSE SUPPORT, NO.1

main44447-22070iMX6#198208-198407

main44447-30031iMX62198009-198208

44449BRACKET, PRESSURE FEED HOSE SUPPORT, NO.2

main44449-22020iMX6#198208-198407

main44449-30040iMX62198009-198208

4503POWER STEERING TUBE

→ Go to FIG 45-03

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99332-00910iMX62198009-198208

main99332-00980iMX6#198208-198407

L=980

9011610001

main90116-10001

9011910033

main90119-10033

9017010199

main90170-10199

9017908146

main90179-08146

9046110456

main90461-10456

9046116053

main90461-16053

9161161025

main91611-61025

9165140612

main91651-40612

9165140614

main91651-40614

9165161030

main91651-61030

9166660616

main91666-60616

9338116010

main93381-16010

9453101000

main94531-01000

9461211001

main94612-11001

35 parts on this diagram · 2 diagrams in section
