Toyota CRESSIDA — OIL COOLER & TUBE (ATM)

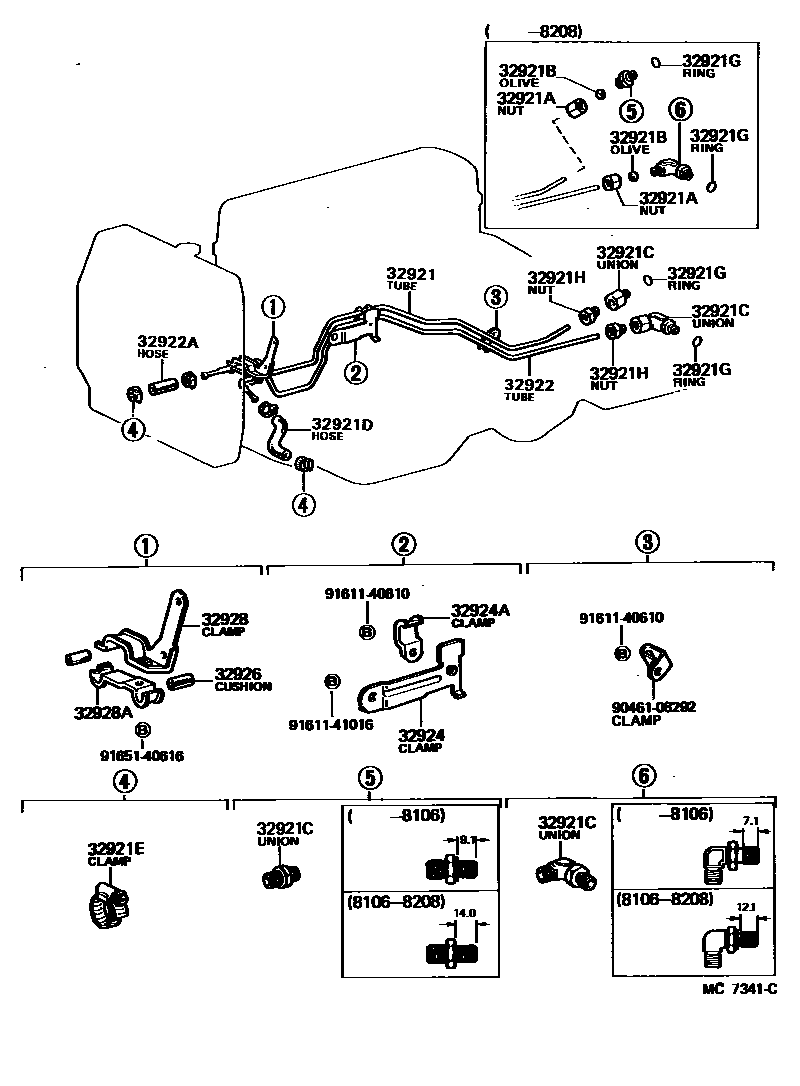

Parts diagram
32921TUBE, OIL COOLER INLET, NO.1
90407-13002
90407-14003
90404-13003
90402-14004
90407-13005
90404-14007
90402-13041
90460-14085
32921-22180
90301-10189
90445-14259
90404-13265
32921-22280
96395-71400
32921ANUT, UNION(FOR OIL COOLER TUBE)
32921BOLIVE(FOR OIL COOLER TUBE)
32921CUNION(FOR OIL COOLER TUBE)
32921DHOSE(FOR OIL COOLER INLET)
32921ECLAMP, HOSE(FOR OIL COOLER)
32921GRING, O(FOR OIL COOLER TUBE UNION)
32921HNUT, FLARE(FOR OIL COOLER TUBE)
32922TUBE, OIL COOLER OUTLET, NO.1
32942-22030
32922-22220
32922-22310
90445-14407
32922AHOSE(FOR OIL COOLER OUTLET)
32924CLAMP, OIL COOLER TUBE, NO.2
32924-22040
32929-30060
32924ACLAMP(FOR OIL COOLER TUBE, NO.2)
32926CUSHION, OIL COOLER TUBE(ATM)
32926-22010
32926-30011
32928CLAMP, FLEXIBLE HOSE, NO.1
15781-41010
90462-10019
32928ACLAMP(FOR FLEXIBLE HOSE CLAMP)
9046108292
90461-08292
9161140610
91611-40610
9161141016
91611-41016
9165140616
91651-40616

19 parts on this diagram · 1 diagram in section

OIL COOLER & TUBE (ATM) for Toyota CRESSIDA

This section contains 19 genuine Toyota parts for the OIL COOLER & TUBE (ATM) system of the Toyota CRESSIDA. Key components include: TUBE, OIL COOLER INLET, NO.1, NUT, UNION(FOR OIL COOLER TUBE), OLIVE(FOR OIL COOLER TUBE), UNION(FOR OIL COOLER TUBE), HOSE(FOR OIL COOLER INLET).
