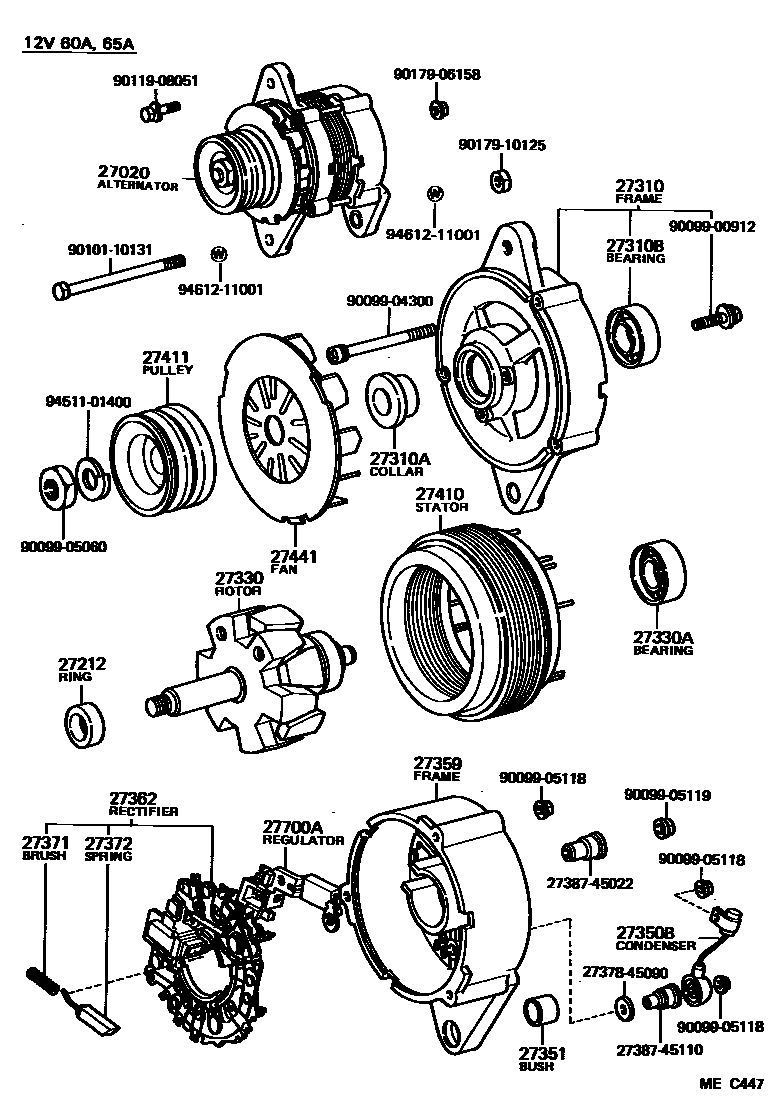

ALTERNATOR

0001 1 0002 1

27020ALTERNATOR ASSY

main27060-43020i5ME..MX62..USA198009-198010

12V 60A,12V 60A

main27060-43030i5M#..MX6#198009-198308

12V 65A,12V 65A

main27060-43060i5MGE..MX6#198308-198407

12V 60A,12V 60A

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27412-45070i5M#..MX6#198009-198308

12V 60A,65A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-43040i5M#..MX6#198009-198308

12V 65A

main27310-61070i5ME..MX62..USA198009-198010

12V 60A

main27310-72010i5MGE..MX6#198308-198309

12V 60A

main27310-72050i5MGE..MX6#198309-198407

12V 60A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-31040i5M#..MX6#198009-198308

12V 60A,65A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10125i5M#..MX6#198009-198308

12V 60A,65A

main90099-10141i5MGE..MX6#198308-198309

12V 60A,OD=42

main90099-10152i5MGE..MX6#198309-198407

12V 60A,OD=43

27330ROTOR ASSY, ALTERNATOR

main27330-15070i5ME..MX62..USA198009-198010

12V 60A

main27330-43040i5M#..MX6#198009-198308

12V 65A

main27330-63021i5MGE..MX6#198308-198407

12V 60A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10116i5M#..MX6#198009-198308

12V 60A,65A

main90099-10140i5MGE..MX6#198308-198407

12V 60A

27350BCONDENSER, ALTERNATOR

main90099-52065i5M#..MX6#198009-198308

12V 60A,65A

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i5M#..MX6#198009-198308

12V 60A,65A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16010i5MGE..MX6#198308-198404

12V 60A

main27359-43020i5M#..MX6#198009-198308

12V 60A,65A

main27359-43050i5MGE..MX6#198404-198407

12V 60A

27362RECTIFIER ASSY, W/BRUSH

main27362-43040i5M#..MX6#198009-198308

12V 60A,65A

27371BRUSH, ALTERNATOR

main27371-31011i5M#..MX6#198009-198308

12V 60A,65A

main27371-63020i5MGE..MX6#198308-198407

12V 60A

27372SPRING, ALTERNATOR BRUSH

main27372-31011i5M#..MX6#198009-198308

12V 60A,65A

main27372-63020i5MGE..MX6#198308-198407

12V 60A

27410STATOR ASSY, ALTERNATOR

main27410-43040i5M#..MX6#198009-198308

12V 65A

main27410-45120i5ME..MX62..USA198009-198010

12V 60A

27411PULLEY, ALTERNATOR

main27411-41071i5M#..MX6#198009-198308

12V 60A,65A

main27411-43050i5MGE..MX6#198308-198407

12V 60A

27441FAN, ALTERNATOR

main27441-44050i5M#..MX6#198009-198308

12V 65A

main27441-45110i5ME..MX62..USA198009-198010

12V 60A

27700AREGULATOR ASSY, GENERATOR

main27700-43010i5M#..MX6#198009-198308

12V 60A,65A

main27700-63021i5MGE..MX6#198308-198407

12V 60A

2737845090INSULATOR, ALTERNATOR, NO.1

main27378-45090

2738745022INSULATOR, TERMINAL

main27387-45022

2738745110INSULATOR, TERMINAL

main27387-45110

9009900912

main90099-00912

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9010110131

main90101-10131

9011908051

main90119-08051

9017906158

main90179-06158

9017910125

main90179-10125

9451101400

main94511-01400

9461211001

main94612-11001

31 parts on this diagram · 2 diagrams in section
