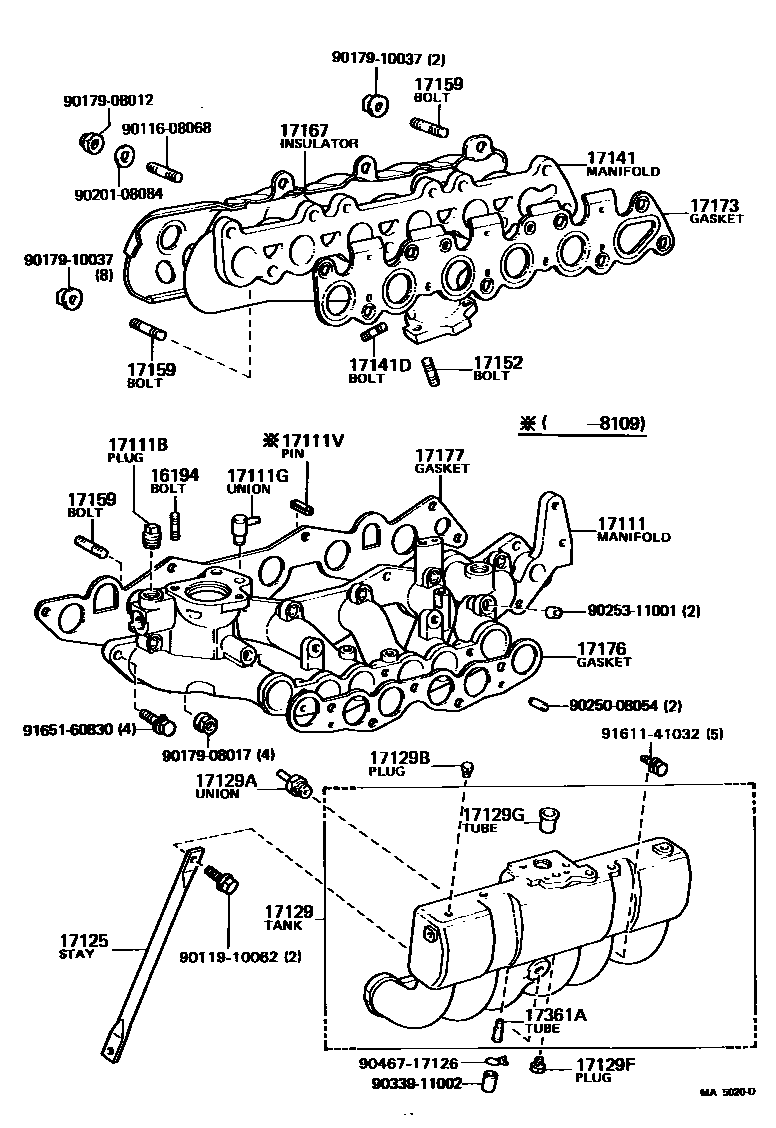

MANIFOLD

0001 1 0002 1

16194BOLT, STUD(FOR WATER OUTLET SETTING)

main90116-08025×2i5ME..MX62198009-198208

17111MANIFOLD, INTAKE

main17111-43010i5MGE..MX6#198208-198407

main17111-45080i5ME..MX62198009-198208

17111BPLUG, NO.2

main90345-53030i5ME..MX62198009-198208

17111GUNION(FOR INTAKE MANIFOLD WATER)

main90407-52005i5ME..MX62198009-198208

17111VPIN, STRAIGHT(FOR INTAKE MANIFOLD SETTING)

main90254-08001×2i5ME..MX62198009-198109

17125STAY, SURGE TANK, NO.1

main17125-41020i5ME..MX62198009-198208

main17125-43011i5MGE..MX6#198208-198407

17129TANK, INTAKE AIR SURGE

main17109-41050i5ME..MX62198009-198208

main17109-43020i5MGE..MX6#198208-198407

17129AUNION, NO.1

main90404-53029i5ME..MX62198009-198208

17129BPLUG

main90072-34107i5ME..MX62198009-198208

main96411-11600×2i5MGE..MX6#198208-198407

17129FPLUG, INTAKE MANIFOLD SUCTION HOLE

main90072-34107i5ME..MX62198009-198208

17129GTUBE, EGR INLET

main25619-43010i5MGE..MX6#198208-198407

main25619-45010i5ME..MX62198009-198208

17141MANIFOLD, EXHAUST

main17141-43010i5MGE..MX6#198208-198407

main17141-45040i5ME..MX62198009-198208

17141DBOLT, STUD(FOR OXYGEN SENSOR)

main90116-08045×2i5ME..MX62198009-198208

L=28,S=8&14

main90116-08168×2i5MGE..MX6#198208-198407

L=28,S=8&17

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10017×3i5ME..MX62198009-198102

L=41,S=14&20

main90116-10058×3i5M#..MX6#198102-198407

L=46.5,S=14&20

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08020×4i5ME..MX62198009-198208

INTAKE,L=44,S=12&8

main90116-08201×2i5MGE..MX6#198208-198407

INTAKE MANIFOLD

main90116-10024×3i5ME..MX62198009-198208

EXHAUST LWR,L=53,S=15&29

main90116-10025×7i5ME..MX62198009-198208

EXHAUST UPR,L=57,S=15&31

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17107-45010i5ME..MX62198009-198208

main17167-43010i5MGE..MX6#198208-198407

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-43010i5MGE..MX6#198208-198308

main17173-43020i5MGE..MX6#198308-198407

main17173-45030i5ME..MX62198009-198208

17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD

main17176-41030i5ME..MX62198009-198208

main17176-43010i5MGE..MX6#198208-198407

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-41030i5ME..MX62198009-198109

main17177-41040i5ME..MX62198109-198208

main17177-43010i5MGE..MX6#198208-198407

17361ATUBE, AIR(FOR EFI)

main17361-41010i5ME..MX62198009-198208

9011608068

main90116-08068

9011910062

main90119-10062

9017908012

main90179-08012

9017908017

main90179-08017

9017910037

main90179-10037

9020108084

main90201-08084

9025008054

main90250-08054

9025311001

main90253-11001

9033911002

main90339-11002

9046717126

main90467-17126

9161141032

main91611-41032

9165160830

main91651-60830

32 parts on this diagram · 2 diagrams in section
