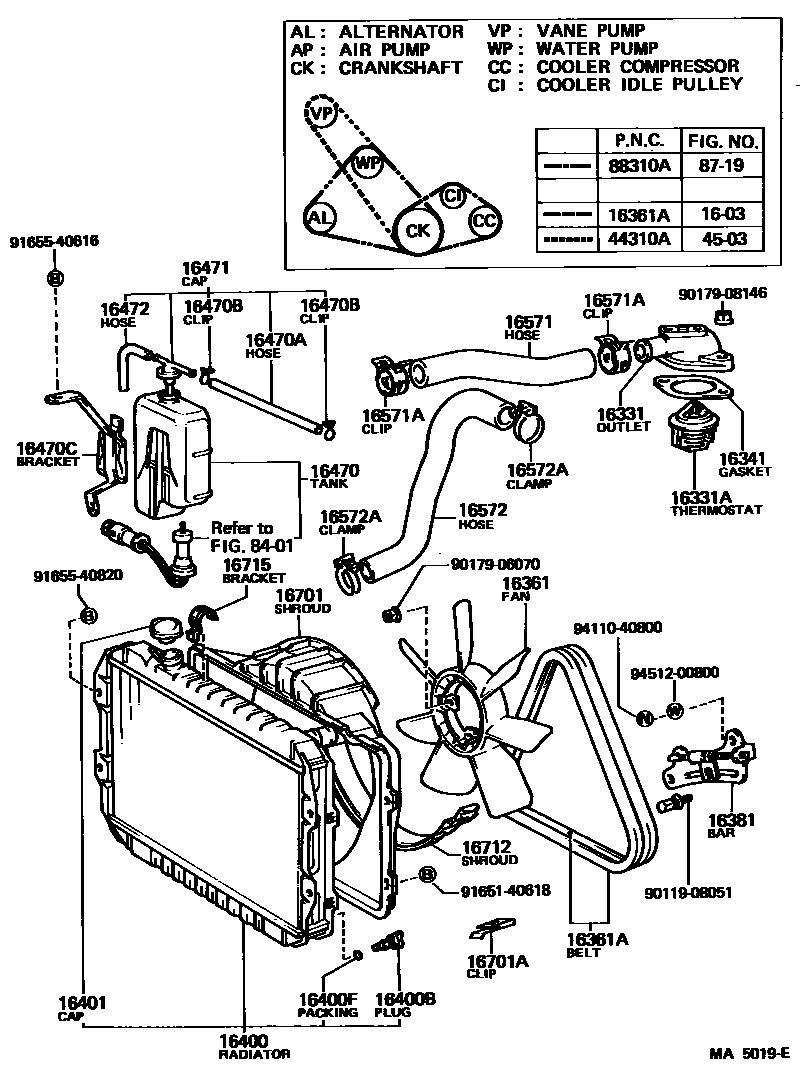

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16331OUTLET, WATER

main16331-43010i5MGE..MX6#198208-198407

main16331-45030i5ME..MX62198009-198208

16331ATHERMOSTAT

main90916-03036i5ME..MX62198009-198208

*WAX 88-100,FUJI-THOMSON

main90916-03040i5ME..MX62198009-198208

*WAX 88-100,KUZEH

main90916-03055i5MGE..MX6#198208-198407

*WAX 88-100,*WAX 88-100

16341GASKET, WATER OUTLET

main16341-38010i5ME..MX62198009-198208

main16341-43010i5MGE..MX6#198208-198407

16361FAN

main16361-41090i5M#..MX6#198009-198407

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02085i5M#..MX6#198009-198308

DOUBLE V BELTS,L=925

main99367-00920i5MGE..MX6#198308-198407

16381BAR, FAN BELT ADJUSTING

main16381-43010i5MGE..MX6#198308-198407

main16381-45011i5M#..MX6#198009-198308

16400RADIATOR ASSY

main16400-41280i5ME..MX62198009-198208

main16400-43060i5MGE..MX63..MTM198208-198407

main16400-43070i5MGE..MX6#..ATM198208-198407

16400BPLUG, RADIATOR DRAIN COCK

main90910-09054i5M#..MX6#198009-198407

16400FPACKING(FOR RADIATOR DRAIN COCK)

main96710-01007i5ME..MX62198009-198110

main96711-19007i5M#..MX6#198110-198407

16401CAP SUB-ASSY, RADIATOR

main16401-36011i5M#..MX6#198009-198407

16470TANK ASSY, RADIATOR RESERVE

main16480-43020i5ME..MX62198009-198208

main16480-43030i5MGE..MX6#198208-198407

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12097i5ME..MX62198009-198208

L=600(*H,L=250)

main90445-12115i5MGE..MX6#198208-198407

L=600(*H,L=280)

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085×2i5M#..MX6#198009-198407

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16402-70010i5ME..MX62198009-198208

main16402-70020i5MGE..MX6#198208-198407

16471CAP SUB-ASSY, RESERVE TANK

main16405-70010i5ME..MX62198009-198208

main16405-70020i5MGE..MX6#198208-198407

16472HOSE, BREATHER

main85338-22020i5ME..MX62198009-198208

main85338-22030i5MGE..MX6#198208-198407

16571HOSE, RADIATOR, INLET

main16571-41090i5ME..MX62198009-198208

main16571-43030i5MGE..MX6#198208-198407

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37001i5ME..MX62198009-198208

WATER OUTLET SIDE

main96111-10430i5ME..MX62198009-198208

RADIATOR SIDE

16572HOSE, RADIATOR, OUTLET

main16572-41080i5ME..MX62198009-198208

main16572-43030i5MGE..MX6#198208-198407

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main96111-10430×2i5ME..MX62198009-198208

ID=43

main96111-10460×2i5MGE..MX6#198208-198407

ID=46

16701SHROUD SUB-ASSY, FAN

main16711-43010i5M#..MX6#198009-198304

main16711-43011i5MGE..MX6#198304-198407

16701ACLIP(FOR FAN SHROUD)

main90468-06013×2i5MGE..MX6#198208-198407

16712SHROUD, FAN, NO.2

main16712-43010i5M#..MX6#198009-198407

16715BRACKET, FAN SHROUD

main16715-43010i5M#..MX6#198009-198407

44310ABELT, V(FOR VANE PUMP)

main90916-02088iMX62198009-198208

main90916-02104iMX6#198208-198407

4503POWER STEERING TUBE

→ Go to FIG 45-03

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99332-00910iMX62198009-198208

main99332-00980iMX6#198208-198407

L=980

9011908051

main90119-08051

9017906070

main90179-06070

9017908146

main90179-08146

9165140618

main91651-40618

9165540616

main91655-40616

9165540820

main91655-40820

9411040800

main94110-40800

9451200800

main94512-00800

38 parts on this diagram · 3 diagrams in section
