HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

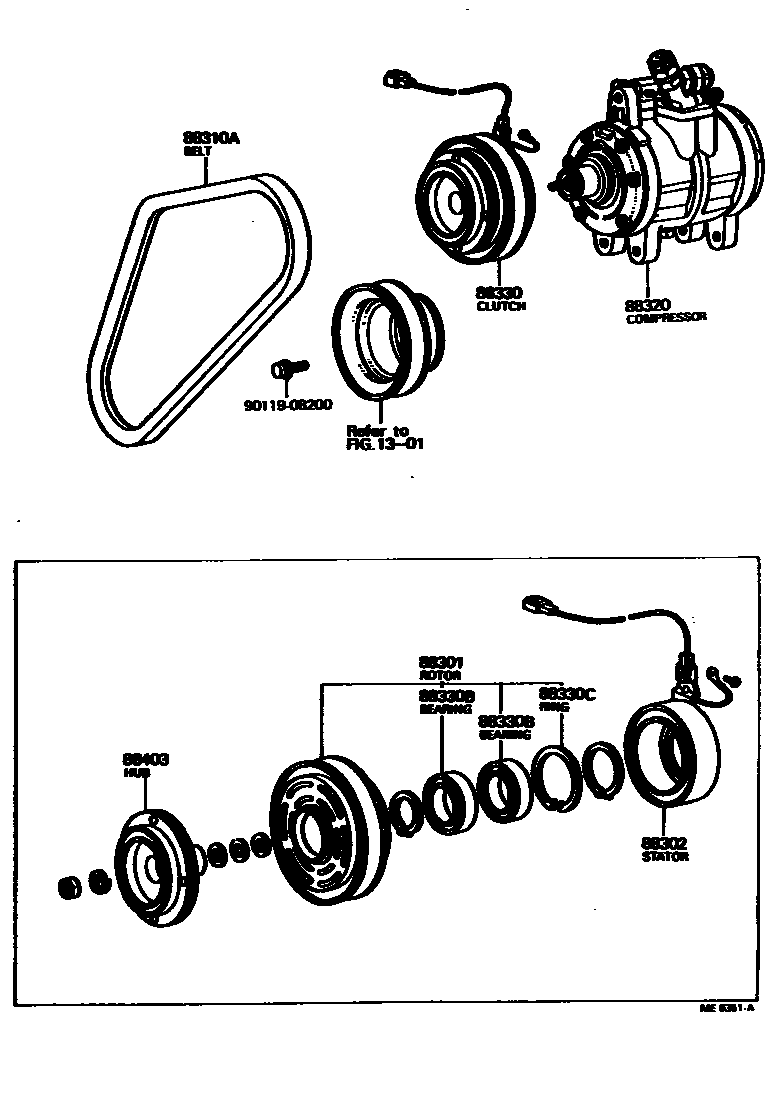

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-26010iMX32..LG..CBR197708-198008

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-22020iMX32..LG..CBR197708-198008

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99332-00885iMX32..LG197708-197908

L=885

main99332-10885iMX3#197908-198008

88320COMPRESSOR ASSY, COOLER

main88320-22140iMX32..LG..CBR197708-198008

88330CLUTCH ASSY, MAGNET

main88410-22030iMX32..LG..CBR197708-198008

88330BBEARING, MAGNET CLUTCH

main90099-10117×2iMX32..LG..CBR197708-198008

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07113iMX32..LG..CBR197708-198008

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-22010iMX32..LG..CBR197708-198008

9011908200

main90119-08200

10 parts on this diagram · 3 diagrams in section
