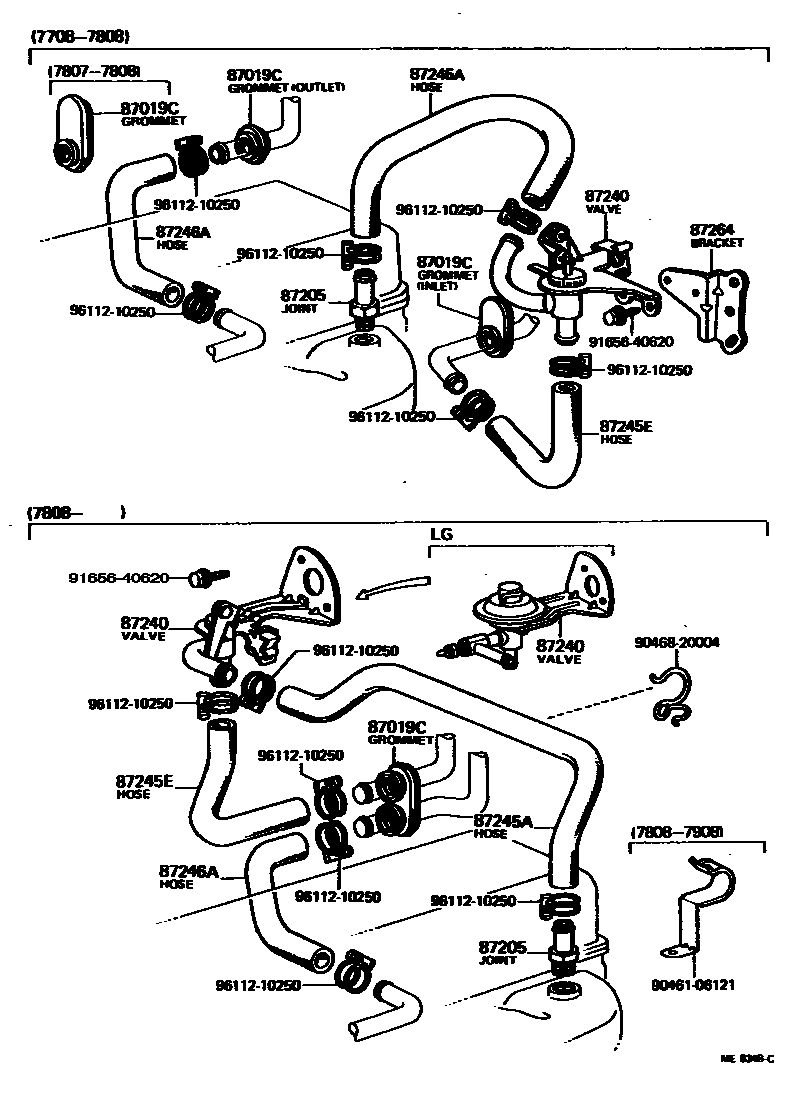

HEATING & AIR CONDITIONING - WATER PIPING

87019CGROMMET, HEATER HOSE

main90480-01016iMX3#197708-197808

INLET

main90480-01017iMX32..LG..CBR197808-198008

main90480-01078iMX32..LG..CBR197808-198008

main90480-36498iMX3#197708-197807

OUTLET

87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE

main87251-30200iMX32..LG..CBR197708-198008

87240VALVE ASSY, HEATER WATER

main87240-22080iMX3#197708-197808

main87240-22120iMX32..LG..CBR197808-198008

main87240-22130iMX32..LG..CBR197808-198008

87245AHOSE, HEATER WATER, INLET A

main87245-22160iMX3#197708-197808

main87245-22270iMX32..LG197808-197908

main87245-22300iMX3#197908-198008

87245EHOSE, HEATER WATER, INLET E

main87245-22200iMX3#197708-197808

main87245-22280iMX32..LG..CBR197808-198008

87246AHOSE, HEATER WATER, OUTLET A

main87245-22180iMX3#197708-197808

main87245-22290iMX32..LG..CBR197808-198008

87264BRACKET, HEATER WATER HOSE

main87263-22030iMX3#197708-197808

9046106121

main90461-06121

9046820004

main90468-20004

9165640620

main91656-40620

9611210250

main96112-10250

11 parts on this diagram · 1 diagram in section
