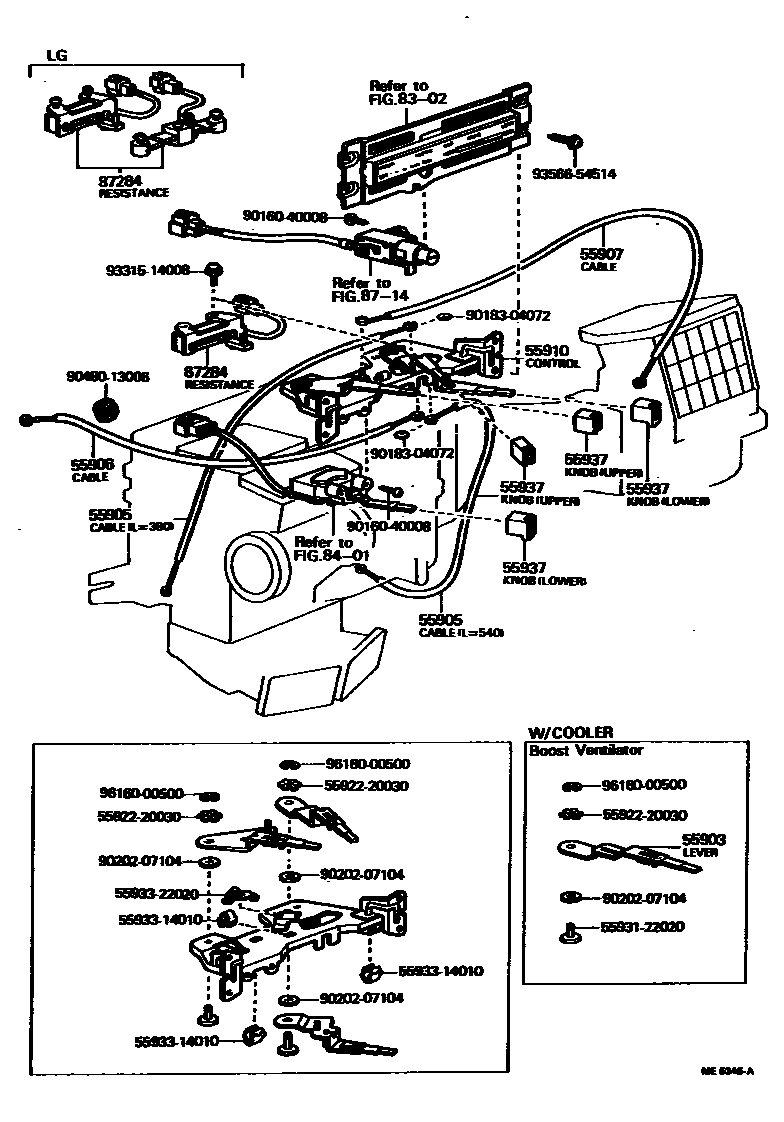

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1

55903LEVER SUB-ASSY, HEATER CONTROL

main55917-22040iMX32..LG..CBR197708-198008

W/BOOST VENTILATOR

55905CABLE SUB-ASSY, DEFROST CONTROL

main55906-22040iMX32..LG..CBR197708-198008

L=380

main55907-22040iMX32..LG..CBR197708-198008

L=540, W/HEATER

55906CABLE SUB-ASSY, HEATER CONTROL

main55907-22051iMX32..LG..CBR197808-198008

L=490, W/HEATER

main55907-22060iMX3#197708-197808

L=690, W/HEATER

55907CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY

main55908-22020iMX32..LG..CBR197708-198008

L=820

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-22918iMX3#197708-197808

W/HEATER

main55910-22921iMX32..LG..CBR197708-198008

W/BOOST VENTILATOR

main55910-22922iMX32..LG..CBR197808-198008

W/HEATER

main55910-22923iMX32..LG..CBR197808-198008

55937KNOB, HEATER CONTROL LEVER

main55905-22050×2iMX32..LG..CBR197708-198008

FOR LOWER

main55905-22060×2iMX32..LG..CBR197708-198008

FOR UPPER

8302INDICATOR

→ Go to FIG 83-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87284RESISTOR SUB-ASSY, VARIABLE

main88032-22020iMX32..LG..CBR197808-198008

main88622-22040iMX32..LG..CBR197708-198008

W/BOOST VENTILATOR

5592220030BRACKET, HEATER CONTROL BASE

main55922-20030

5593122020CLAMP, HEATER CONTROL WIRE

main55931-22020

5593314010GUIDE, LEVER, NO.2

main55933-14010

5593322020GUIDE, LEVER, NO.2

main55933-22020

9016040008

main90160-40008

9018304072

main90183-04072

9020207104

main90202-07104

9048013006

main90480-13006

9331514008

main93315-14008

9356654514

main93566-54514

9616000500

main96160-00500

21 parts on this diagram · 2 diagrams in section
