WIRING & CLAMP

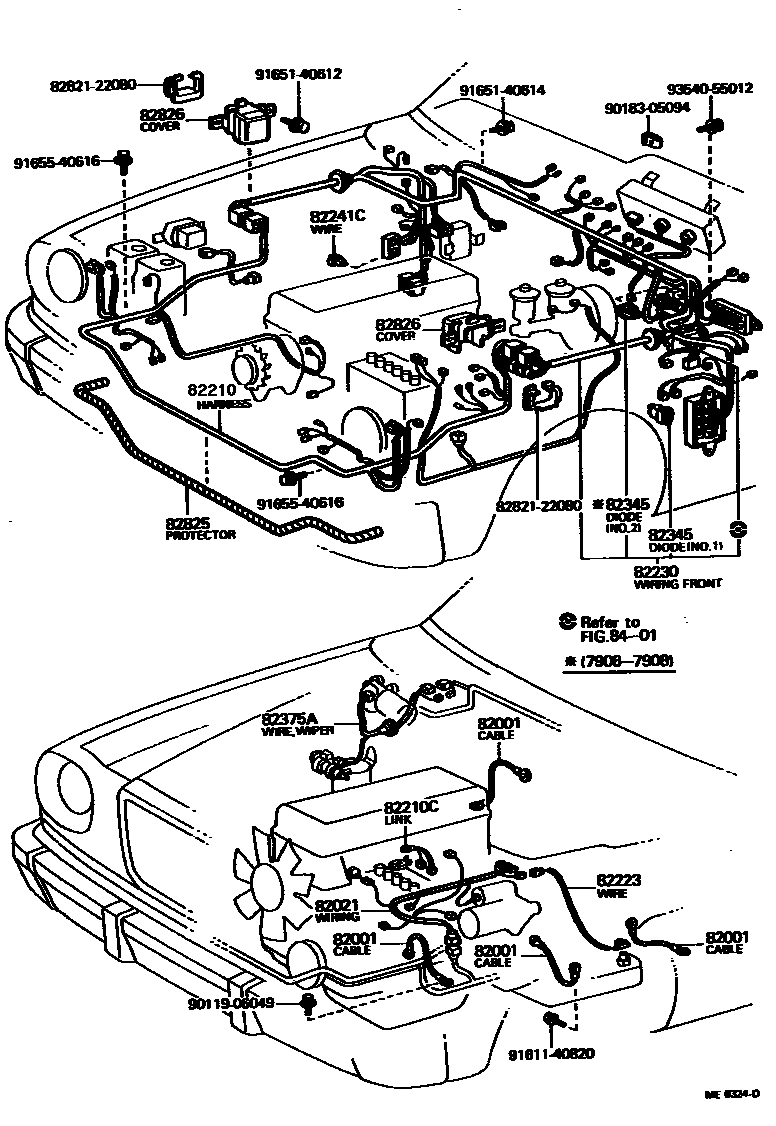

Parts diagram

82001CABLE, BOND, NO.1

main90980-07118i197708-198008

L=220

main90980-07119×2i197708-198008

L=300

main90982-02125i197708-198008

L=350 FOR ENGINE MOUNTING

82021WIRING ASSY, STARTER

main82021-22090i197708-197711

main82021-22091i197711-197808

main82021-22092i197808-197908

82210HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1

main82270-22290i197708-197711

60A ALTERNATOR

main82270-22291i197711-197808

60A ALTERNATOR

main82270-22292i197808-197908

main82270-22293i197908-198008

main82270-22370i197708-197711

55A ALTERNATOR

main82270-22371i197711-197808

55A ALTERNATOR

82210CFUSIBLE LINK

main90982-08048i197708-197908

main90982-08089i197908-198008

82223WIRE, SWITCH

main82224-22010i197708-197710

82230WIRING ASSY, FRONT SIDE

main82230-22160i197708-197711

main82230-22162i197711-197808

main82230-22163i197808-197904

main82230-22164i197908-198008

main82230-22370i197808-197904

main82230-22371i197908-198008

main82230-22440i197908-198008

AUTO DRIVE

main82230-22450i197904-197908

main82230-22460i197904-197908

82241CWIRE, RELAY

main82241-22020i197808-198008

L/COOLER

82345DIODE

main82345-22010i197710-197808

2-PIECE DIODE

main82345-22020i197710-198008

1-PIECE DIODE,NO1

main82345-22030i197906-198008

1-PIECE DIODE,N02

82375AWIRE, WIPER MOTOR

main82375-22030i197708-197808

main82375-22031i197808-197902

main82375-22032i197902-197903

main82375-22033i197903-197908

82825PROTECTOR, WIRING HARNESS

main82817-22160i197708-197912

L=1440

82826COVER, WIRING HARNESS HOLE

main82821-22070×2i197708-198008

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8282122080RETAINER, HEADLAMP HARNESS

main82821-22080

9011906049

main90119-06049

9018305094

main90183-05094

9161140820

main91611-40820

9165140612

main91651-40612

9165140614

main91651-40614

9165540616

main91655-40616

9354055012

main93540-55012

20 parts on this diagram · 9 diagrams in section
