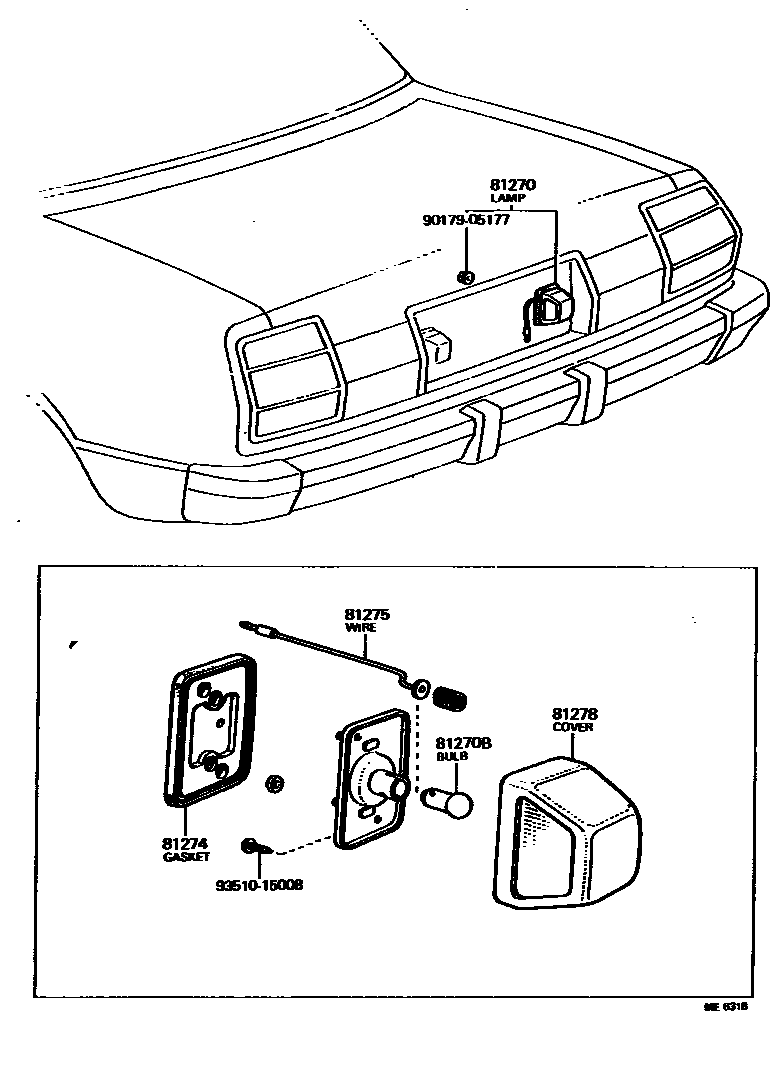

REAR LICENSE PLATE LAMP

0001 1 0002 1

81270LAMP ASSY, LICENSE PLATE

main81270-19226iMX36197708-197808

main81270-19276iMX32..LG..CBR197708-198008

RH.

main81270-29365iMX32..LG..CBR197808-198008

main81690-19056iMX32..LG..CBR197708-198008

LH.

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-11075×2iMX32..LG..CBR197708-198008

12V 7.5W,12V 7.5W

81274GASKET, LICENSE PLATE LAMP BODY

main81274-12081iMX32..LG..CBR197708-198008

RH.

main81274-13070iMX36197708-197808

main81274-23070iMX32..LG..CBR197808-198008

main81694-12031iMX32..LG..CBR197708-198008

LH.

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-12081×2iMX32..LG..CBR197708-198008

81278COVER, LICENSE PLATE LAMP

main81271-12110×2iMX32..LG..CBR197708-198008

9017905177

main90179-05177

9351015008

main93510-15008

7 parts on this diagram · 2 diagrams in section
