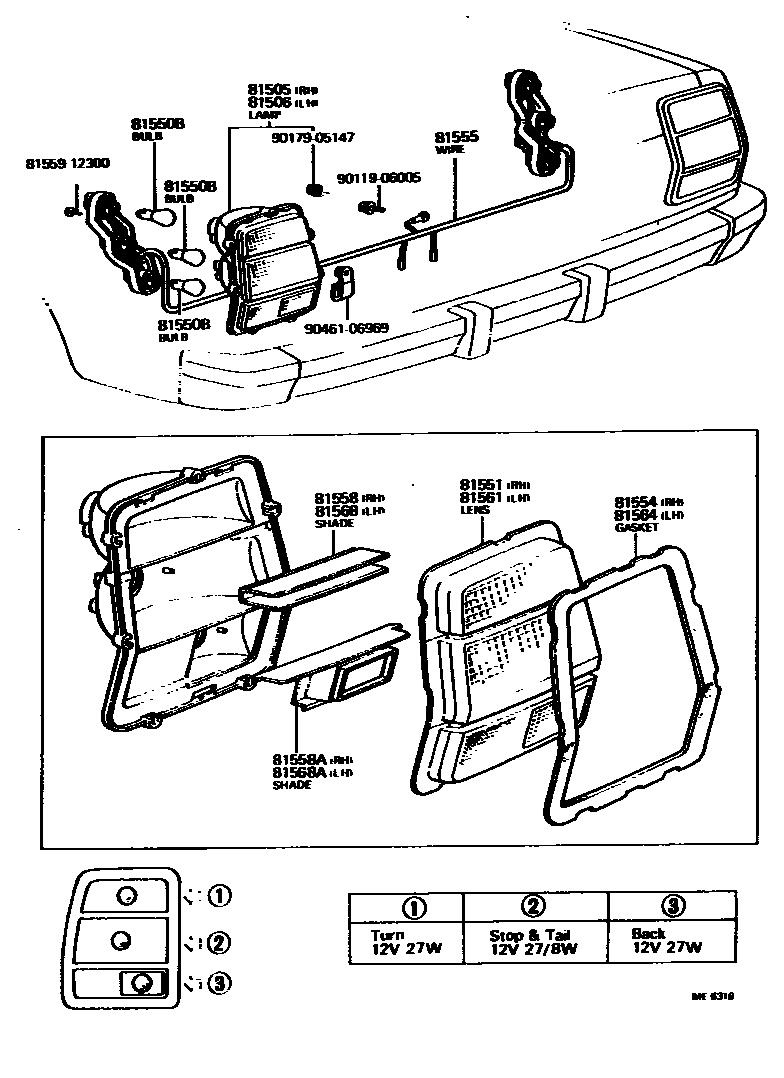

REAR COMBINATION LAMP
81505LAMP SUB-ASSY, REAR COMBINATION, RH
81506LAMP SUB-ASSY, REAR COMBINATION, LH
81550LAMP ASSY, REAR COMBINATION, RH
81550BBULB(FOR REAR COMBINATION LAMP)
12V 27W,12V 27W
12V 27/8W,12V 27/8W
81551LENS, REAR COMBINATION LAMP, RH
81554GASKET, REAR COMBINATION LAMP BODY, RH
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81558SHADE, REAR COMBINATION LAMP, NO.1 RH
81558ASHADE, REAR COMBINATION LAMP, NO.2 RH
81561LENS, REAR COMBINATION LAMP, LH
81564GASKET, REAR COMBINATION LAMP BODY, LH
81568SHADE, REAR COMBINATION LAMP, NO.1 LH
81568ASHADE, REAR COMBINATION LAMP, NO.2 LH
8155912300MOULDING, REAR COMBINATION LAMP, RH
main81559-12300
9011906005
main90119-06005
9017905147
main90179-05147
9046106969
main90461-06969
17 parts on this diagram · 4 diagrams in section
