Toyota 311430 — FRONT TURN SIGNAL LAMP

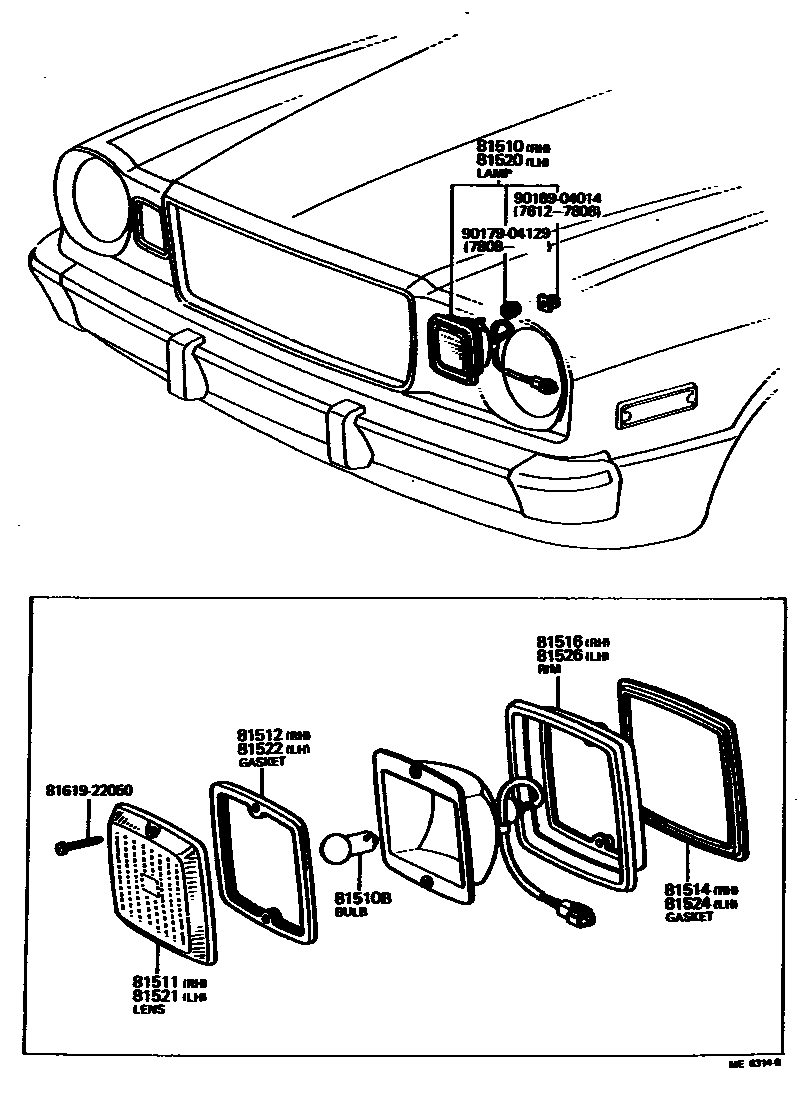

Parts diagram

81510LAMP ASSY, FRONT TURN SIGNAL, RH

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

81511LENS, FRONT TURN SIGNAL LAMP, RH

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

81514GASKET, FRONT TURN SIGNAL LAMP BODY, RH

81516RIM, FRONT TURN SIGNAL LAMP, RH

81520LAMP ASSY, FRONT TURN SIGNAL, LH

81521LENS, FRONT TURN SIGNAL LAMP, LH

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

81524GASKET, FRONT TURN SIGNAL LAMP BODY, LH

81526RIM, FRONT TURN SIGNAL LAMP, LH

8161922050

9017904129

9018904014

14 parts on this diagram · 1 diagram in section

FRONT TURN SIGNAL LAMP for Toyota 311430

This section contains 14 genuine Toyota parts for the FRONT TURN SIGNAL LAMP system of the Toyota 311430. Key components include: LAMP ASSY, FRONT TURN SIGNAL, RH, BULB (FOR FRONT TURN SIGNAL LAMP), LENS, FRONT TURN SIGNAL LAMP, RH, GASKET, FRONT TURN SIGNAL LAMP LENS, RH, GASKET, FRONT TURN SIGNAL LAMP BODY, RH.
