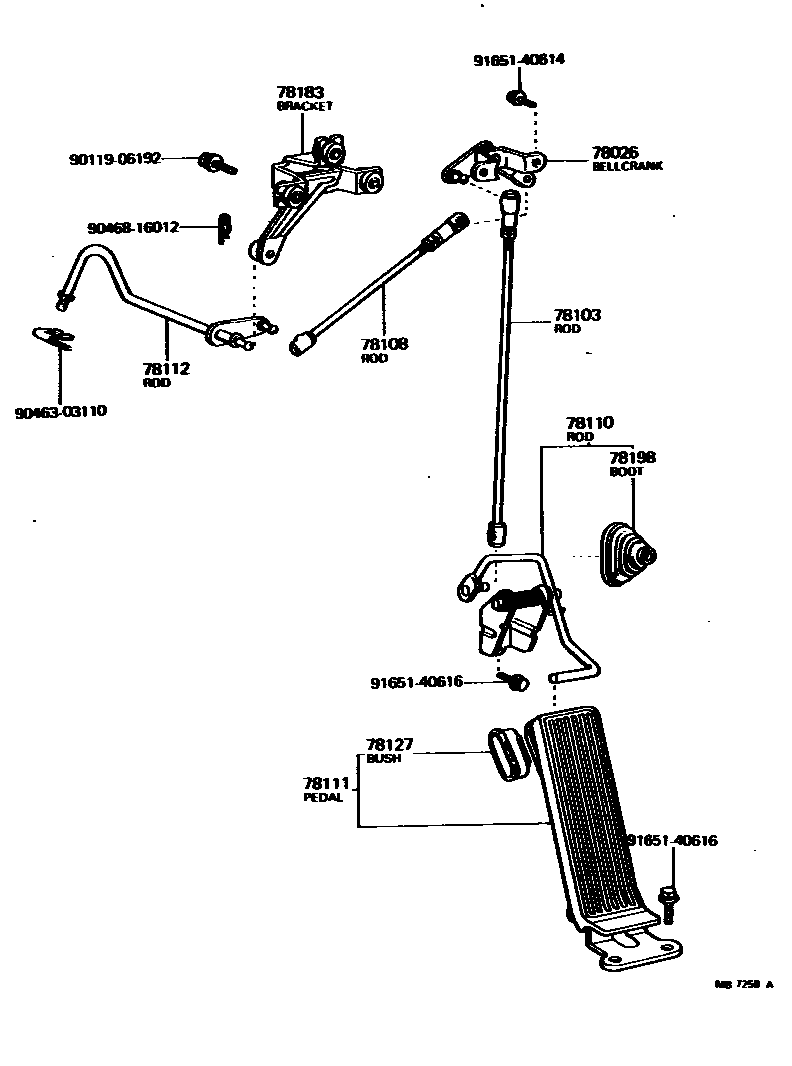

ACCELERATOR LINK

0001 1 0002 1

78026BELLCRANK SUB-ASSY, ACCELERATOR, NO.2

main78160-22020iMX32..LG197708-197908

78103ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1

main78103-22070iMX32..LG197708-197908

78108ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.4

main78105-22180iMX3#197908-198008

main78105-22240iMX32..LG197708-197908

78110ROD ASSY, ACCELERATOR PEDAL

main78120-22010iMX32..LG..CBR197708-198008

78111PEDAL, ACCELERATOR

main78010-22050iMX32..LG..CBR197708-198008

78112ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.4

main78106-22090iMX32..LG197708-197908

main78106-22091iMX3#197908-198008

78127BUSH, ACCELERATOR PEDAL, NO.2

main78127-22010iMX32..LG..CBR197708-198008

78183BRACKET, ACCELERATOR LINK ROD

main78170-22040iMX32..LG197708-197908

main78170-22041iMX3#..L197908-198008

main78170-22080iMX3#197908-198008

FOR AUTO DRIVE

78198BOOT, ACCELERATOR CONNECTING ROD

main78199-20030iMX32..LG..CBR197708-198008

9011906192

main90119-06192

9046303110

main90463-03110

9046816012

main90468-16012

9165140614

main91651-40614

9165140616

main91651-40616

14 parts on this diagram · 2 diagrams in section
