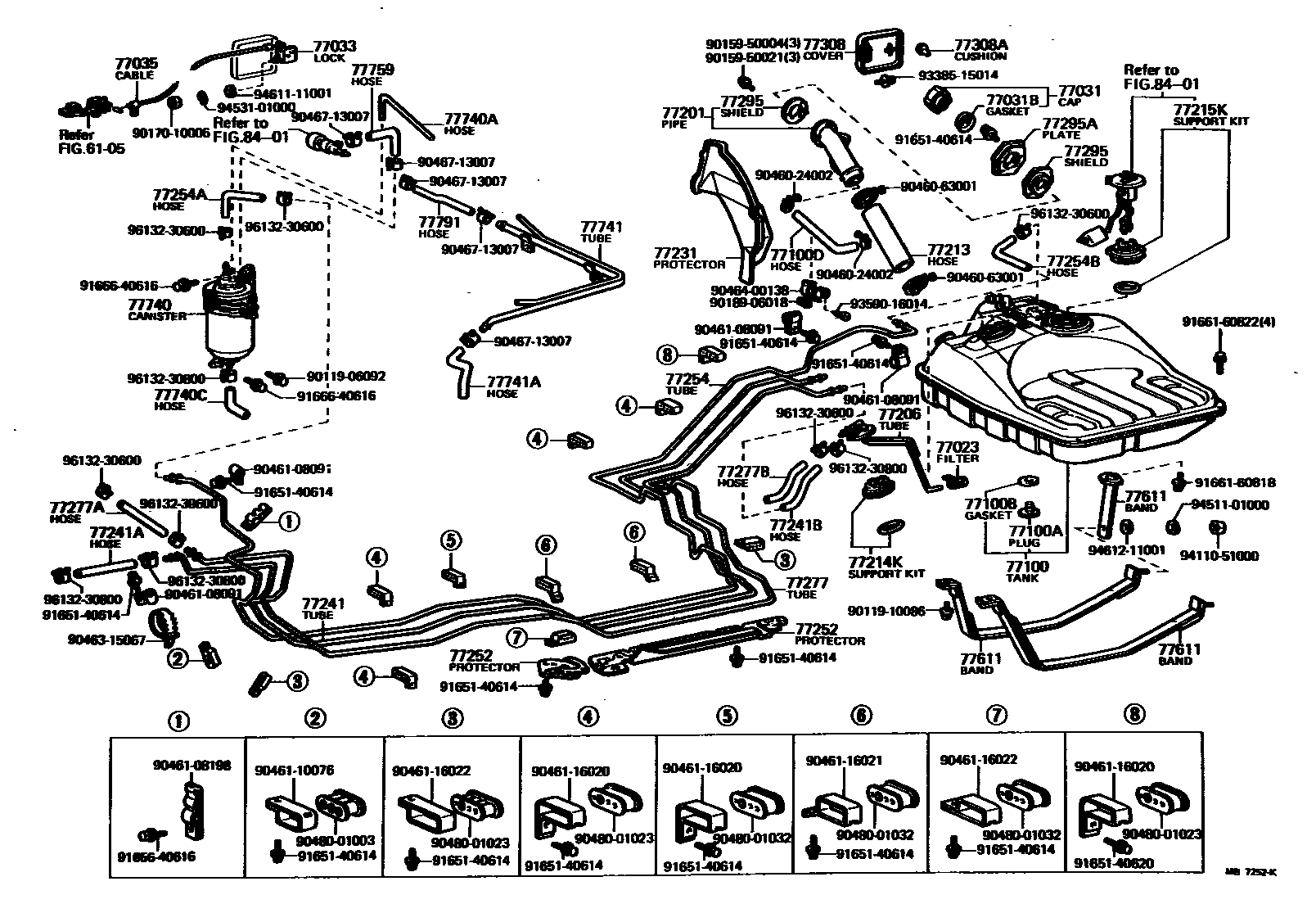

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1

6105

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-22040iMX32..LG197801-197908

main77023-30010iMX3#197908-198008

77031CAP ASSY, FUEL TANK

main77310-12090iMX3#197908-198008

sub77310-12100

main77310-14070iMX32..LG197808-197908

main77310-30050iMX3#197708-197808

sub77310-14070

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iMX32..LG..CBR197808-198008

main77316-12060iMX3#197708-197808

77033LOCK SUB-ASSY, FUEL TANK CAP

main77037-22030iMX32..LG..CBR197808-198008

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-22040iMX32..LG..CBR197808-198008

main77035-91601iMX32..LG..CBR197808-198008

77100TANK ASSY, FUEL

main77001-22140iMX32197708-197801

sub77001-22141

main77001-22141iMX32..LG197801-197908

sub77100-22360

sub77100-22370

sub77100-22380

sub77100-22390

sub77100-22400

main77001-22142iMX32197908-198008

sub77100-22350

sub77100-22410

main77001-91616iMX36197708-197801

sub77001-91619

main77001-91619iMX32..LG197801-197904

sub77001-91621

main77001-91621iMX32..LG197904-197908

sub77001-91645

main77001-91622iMX36197908-198008

sub77001-91646

77100APLUG(FOR FUEL TANK)

main90105-12018iMX32..LG..CBR197708-198008

main90341-24036iMX32..LG..CBR197708-198008

77100BGASKET(FOR FUEL TANK)

main90430-12245iMX32..LG..CBR197708-198008

main90430-24047iMX32..LG..CBR197708-198008

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main90445-22007iMX32..LG..CBR197708-198008

L=520

main90445-22009iMX32..LG..CBR197708-198008

L=360

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-22080iMX32..LG197708-197908

main77201-22082iMX32197908-198008

main77201-91607iMX32..LG197708-197908

main77201-91609iMX36197908-198008

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77017-22010iMX32197708-197801

sub77017-22011

main77017-22011iMX32..LG197801-197908

main77017-22021iMX32197908-198008

main77017-91603iMX32..LG197801-197908

main77017-91604iMX36197908-198008

77213HOSE, FUEL TANK SUB INLET

main77213-22040iMX32..LG..CBR197708-198008

sub77408-22010

main77213-91605iMX32..LG197708-197905

sub77213-91606

main77213-91606iMX32..LG..CBR197905-198008

77214KSUPPORT KIT, FUEL TANK TUBE

main04772-12010iMX32..LG..CBR197708-198008

77215KSUPPORT KIT, FUEL TANK GAGE

main04772-12020iMX32..LG..CBR197708-198008

77231PROTECTOR, INLET TUBE

main77277-22010iMX32..LG197708-197908

main77277-22011iMX32197908-198008

77241TUBE, FUEL MAIN, NO.1

main77205-91605iMX36197908-198008

sub77251-91617

sub90402-14004

main77251-22140iMX32197708-197808

sub77251-22180

main77251-22180iMX32..LG197808-197908

main77251-22181iMX32197908-198008

main77251-91614iMX36197708-197808

main77251-91616iMX32..LG197808-197908

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main95332-08017iMX32..LG197904-197908

L=200(*H,L=170)

sub95332-08020

main95332-08018iMX32..LG197708-197904

L=200(*H,L=180)

sub95332-08020

77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

main95332-08022iMX36197708-197804

L=300(*H,L=220)

sub95333-08030

main95332-08024iMX3#197708-197908

L=300(*H,L=240)

sub95332-08030

77252PROTECTOR, FUEL TUBE

main77266-22020iMX32..LG..CBR197708-198008

FOR REAR

main77267-22010iMX32..LG..CBR197708-198008

FOR FRONT

77254TUBE, FUEL EMISSION, NO.1

main77261-22030iMX32197708-197711

main77261-22031iMX32..LG197711-197908

main77261-22032iMX32197908-198008

main77261-91602iMX32..LG197808-197908

main77261-91603iMX36197708-197808

main77261-91606iMX36197908-198008

77254AHOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)

main95332-06017iMX32197711-197908

L=200(*H,L=170)

sub95332-06020

main95332-06020iMX3#197908-198008

L=200(*H,L=170)

sub95333-06020

main95332-06022iMX36197708-197808

L=300(*H,L=220)

sub95332-06030

77254BHOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)

main95332-06016iMX32..LG197708-197903

L=200(*H,L=160)

sub95332-06020

main95332-06017iMX32..LG197903-197908

L=200(*H,L=170)

sub95332-06020

main95332-06020iMX32197908-198008

L=200(*H,L=170)

sub95333-06020

77277TUBE, FUEL RETURN, NO.1

main77255-22050iMX32197708-197808

main77255-22080iMX32..LG197808-197908

sub77255-22050

main77255-22081iMX32197908-198008

main77255-91600iMX36197708-197808

main77255-91602iMX32..LG197808-197908

main77255-91603iMX36197908-198008

77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

main95332-06030iMX32..LG197708-197908

L=300

sub95333-06030

main95335-08030iMX36197908-198008

L=300

sub95336-08030

77277BHOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)

main95332-06022iMX36197708-197804

L=300(*H,L=220)

sub95332-06030

main95332-06024iMX32197708-197908

L=300(*H,L=240)

sub95332-06030

main95332-08020iMX32197908-198008

L=200

sub95333-08020

main95332-08030iMX36197908-198008

L=300(*H,L=240)

sub95333-08030

77295SHIELD, FUEL FILLER PIPE

main77291-22010iMX32..LG197708-197908

FOR LOWER

main77291-22011iMX32197908-198008

FOR LOWER

main77292-22010iMX32..LG197708-197908

FOR UPPER

main77292-22011iMX32197908-198008

FOR UPPER

77295APLATE, FUEL FILLER PIPE SHIELD SUPPORT

main77294-22010iMX32..LG197708-197908

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-22010iMX32197708-197808

main77350-22011iMX32..LG..CBR197808-198008

main77350-91600iMX36197708-197808

sub77350-91601

main77350-91601iMX32..LG..CBR197808-198008

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-03001iMX32..LG197708-197907

main90541-08003iMX32..LG..CBR197907-198008

77611BAND, FUEL TANK

main77601-22040iMX32..LG..CBR197708-198008

FOR FRONT RH.

main77602-22030iMX32..LG..CBR197708-198008

FOR FRONT LH.

sub77602-22060

main77603-22020iMX32..LG..CBR197708-198008

FOR REAR

77740CANISTER ASSY, CHARCOAL

main77740-22120iMX32..LG197708-197908

main77740-22160iMX3#197908-198008

77740AHOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

main95411-19930iMX3#197708-197808

*H,L=300,MARK=#*

sub90999-92002

main95411-19995iMX32..LG..CBR197808-198008

*H,L=650,MARK=#*

sub90999-92004

77740CHOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)

main95332-08017iMX32..LG197708-197908

L=200(*H,L=170)

sub95332-08020

77741TUBE, FUEL VAPOR FEED

main23818-45010iMX32..LG197708-197908

77741AHOSE, FUEL, (FOR VAPOR FEED)

main23829-45010iMX32..LG197708-197908

77759HOSE, CHARCOAL CANISTER

main77759-20011iMX32..LG197708-197908

77791HOSE, OUTER VENT VALVE TO CARBURETOR

main77791-22011iMX32..LG197708-197908

8401

9011906092

main90119-06092

9011910086

main90119-10086

9015950004

main90159-50004

9015950021

main90159-50021

9017010006

main90170-10006

9018906018

main90189-06018

9046024002

main90460-24002

9046063001

main90460-63001

9046108091

main90461-08091

9046108198

main90461-08198

9046110076

main90461-10076

9046116020

main90461-16020

9046116021

main90461-16021

9046116022

main90461-16022

9046315067

main90463-15067

9046400138

main90464-00138

9046713007

main90467-13007

9048001003

main90480-01003

9048001023

main90480-01023

9048001032

main90480-01032

9165140614

main91651-40614

9165140620

main91651-40620

9165640616

main91656-40616

9166160818

main91661-60818

9166160822

main91661-60822

9166640616

main91666-40616

9338515014

main93385-15014

9359016014

main93590-16014

9411051000

main94110-51000

9451101000

main94511-01000

9453101000

main94531-01000

9461111001

main94611-11001

9461211001

main94612-11001

9613230600

main96132-30600

9613230800

main96132-30800

74 parts on this diagram · 4 diagrams in section
