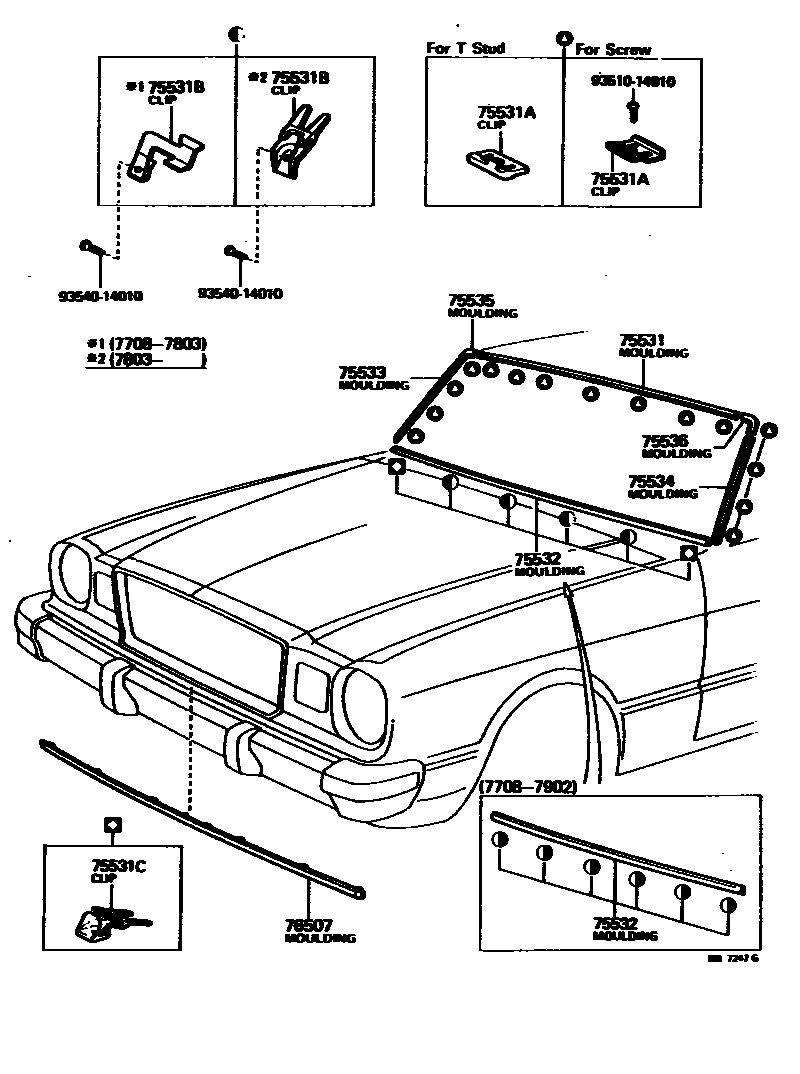

FRONT MOULDING

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-22050iMX32..LG..CBR197708-198008

75531ACLIP, WINDSHIELD MOULDING SET, NO.1

main75545-30021×15iMX32..LG..CBR197708-198008

FOR T STUD

main75545-30040×15iMX32..LG..CBR197708-198008

FOR SCREW

75531BCLIP, WINDSHIELD MOULDING SET, NO.2

main75546-22020×6iMX3#197708-197803

main75546-22021×6iMX32..LG197803-197902

75531CCLIP, WINDSHIELD MOULDING SET, NO.3

main75547-22010×2iMX32..LG..CBR197902-198008

75532MOULDING, WINDSHIELD, LOWER

main75504-22010iMX32..LG..CBR197708-198008

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-22070iMX32..LG..CBR197708-198008

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75534-22060iMX32..LG..CBR197708-198008

75535MOULDING, WINDSHIELD CORNER, UPPER RH

main75541-22010iMX32..LG..CBR197708-198008

75536MOULDING, WINDSHIELD CORNER, UPPER LH

main75542-22010iMX32..LG..CBR197708-198008

76507MOULDING SUB-ASSY, FRONT END PANEL

main76507-22010iMX32..LG..CBR197808-198008

9351014010

main93510-14010

9354014010

main93540-14010

12 parts on this diagram · 1 diagram in section
