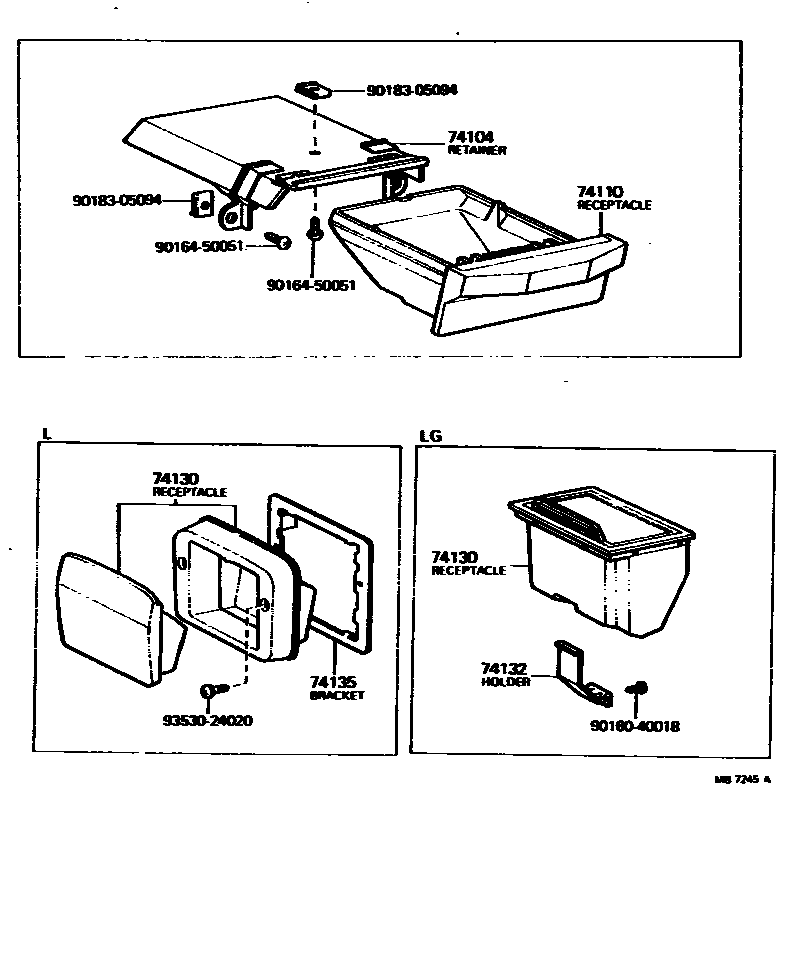

ASH RECEPTACLE

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-22050iMX32..LG..CBR197708-198008

74110RECEPTACLE ASSY, INSTRUMENT PANEL ASH

main74102-22010-03iMX3#197708-197808

GRAY M.,GRAY

main74102-22010-13iMX3#197708-197808

SILVER M.,GRAY

main74102-22010-23iMX32..LG..CBR197808-198008

SILVER,GRAY

74130RECEPTACLE ASSY, REAR ASH

main74130-22020-01×2iMX32..LG..CBR197708-198008

BLACK,BLACK

main74130-22020-02×2iMX32..LG..CBR197808-198008

DARK WINE,RED/MAROON

main74130-22020-03×2iMX3#197708-197808

GRAY,GRAY

main74130-22020-05×2iMX32..LG..CBR197708-198008

BEIGE,BEIGE

main74130-22030×2iMX32..LG..CBR197808-198008

74132HOLDER, REAR ASH RECEPTACLE

main74239-30020×2iMX32..LG..CBR197808-198008

74135BRACKET, REAR ASH RECEPTACLE

main67641-30010×2iMX32..LG..CBR197708-198008

9016040018

main90160-40018

9016450051

main90164-50051

9018305094

main90183-05094

9353024020

main93530-24020

9 parts on this diagram · 1 diagram in section
