SEAT TRUCK

71305KNOB SUB-ASSY, FRONT SEAT ADJUSTING

main72457-14020-01iMX3#197908-198008

BLACK,BLACK

main72457-14020-02iMX3#197908-198008

DARK WINE,RED/MAROON

main72457-14020-05iMX3#197908-198008

BEIGE,BEIGE

main72457-20020-01iMX32..LG197808-197908

BLACK

main72457-20020-02iMX32..LG197808-197908

DARK WINE

main72457-20020-05iMX32..LG197808-197908

BEIGE

72031ADJUSTER ASSY, FRONT SEAT VERTICAL

main72310-22020iMX32..LG197808-197908

main72310-22021iMX3#197908-198008

72031ASPRING, TENSION (FOR VERTICAL ADJUSTER)

main90506-18025iMX32..LG..CBR197808-198008

72110ESPRING, TENSION, NO.1 (FOR SEAT TRACK)

main90506-18008×2iMX32..LG..CBR197708-198008

72110STRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

main72110-22150iMX3#197708-197808

main72110-22210iMX32..LG..CBR197808-198008

72120STRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)

main72120-22150iMX3#197708-197808

main72120-22170iMX32..LG..CBR197808-198008

72130TRACK ASSY, RH SEAT, INNER

main72130-22050iMX3#197708-197808

main72130-22080iMX32..LG..CBR197808-198008

72137COVER, SEAT TRACK, OUTER RH

main72137-22010-01iMX3#197708-197808

BLACK,BLACK

main72137-22010-05iMX3#197708-197808

BEIGE,BEIGE

main72137-22020-01iMX32..LG..CBR197808-198008

BLACK,BLACK

main72137-22020-05iMX32..LG..CBR197808-198008

BEIGE,BEIGE

72138COVER, SEAT TRACK, OUTER LH

main72138-22010-01iMX3#197708-198001

BLACK,BLACK

main72138-22010-05iMX3#197708-198001

BEIGE,BEIGE

main72138-22011-01iMX3#198001-198008

BLACK,BLACK

main72138-22011-05iMX3#198001-198008

BEIGE,BEIGE

72140TRACK ASSY, LH SEAT, INNER

main72140-22050iMX3#197708-197808

main72140-22070iMX32..LG..CBR197808-198008

72157COVER, SEAT TRACK BRACKET, INNER

main72157-22030-01×2iMX3#197708-197808

BLACK,BLACK

main72157-22030-05×2iMX3#197708-197808

BEIGE,BEIGE

main72157-22040-01×2iMX32..LG..CBR197808-198008

BLACK,BLACK

main72157-22040-05×2iMX32..LG..CBR197808-198008

BEIGE,BEIGE

72301WIRE SUB-ASSY, SEAT TRACK EQUALIZING

main72301-20130iMX32..LG..CBR197808-198008

72404LINK SUB-ASSY, VERTICAL SEAT

main72404-20020iMX3#197912-198005

main72404-20021iMX3#198005-198008

7246720010PIN, VERTICAL ADJUSTER

main72467-20010

9011910035

main90119-10035

9011910185

main90119-10185

9017910018

main90179-10018

9020110180

main90201-10180

9020208005

main90202-08005

9038608009

main90386-08009

9052306019

main90523-06019

9161160814

main91611-60814

9324954005

main93249-54005

9616000600

main96160-00600

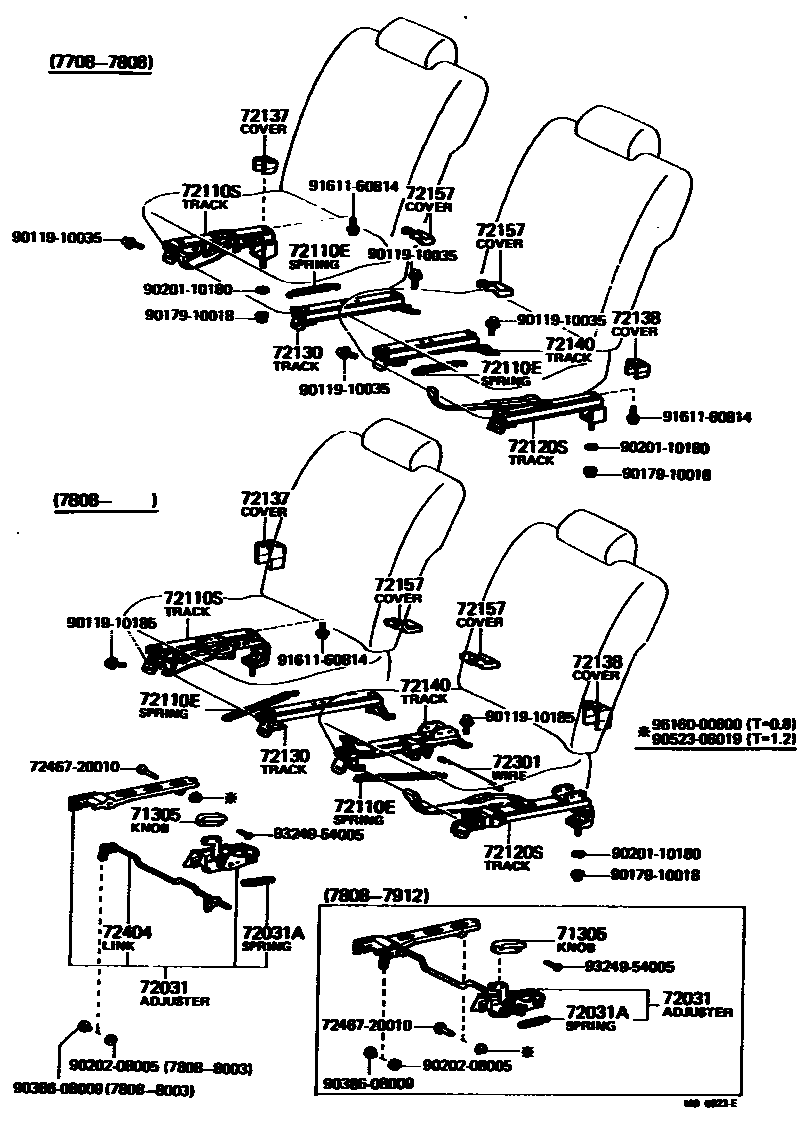

24 parts on this diagram · 1 diagram in section
