71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-22320-01i197708-197808

FB.BLACK,BLACK

main71071-22320-03i197708-197808

FB.GRAY,GRAY

main71071-22320-05i197708-197808

FB.BEIGE,BEIGE

main71071-22321-01i197808-198008

FB.BLACK,BLACK

main71071-22321-02i197808-198008

FB.DARK WINE,RED/MAROON

main71071-22321-05i197808-198008

FB.BEIGE,BEIGE

main71071-22410-01i197708-197808

PF.BLACK,BLACK

main71071-22410-03i197708-197808

PF.GRAY,GRAY

main71071-22410-05i197708-197808

PF.BEIGE,BEIGE

main71071-22411-01i197808-198008

PF.BLACK,BLACK

main71071-22411-02i197808-198008

PF.DARK WINE,RED/MAROON

main71071-22411-05i197808-198008

PF.BEIGE,BEIGE

main71071-22500-02i197808-198008

FB.DARK WINE,RED/MAROON

main71071-22500-03i197808-198008

FB.GRAY,GRAY

main71071-22500-05i197808-198008

FB.BEIGE,BEIGE

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-22120-01i197708-197808

FB.BLACK,BLACK

main71072-22120-03i197708-197808

FB.GRAY,GRAY

main71072-22120-05i197708-197808

FB.BEIGE,BEIGE

main71072-22121-01i197808-198008

FB.BLACK,BLACK

main71072-22121-02i197808-198008

FB.DARK WINE,RED/MAROON

main71072-22121-05i197808-198008

FB.BEIGE,BEIGE

main71072-22180-01i197708-197808

PF.BLACK,BLACK

main71072-22180-03i197708-197808

PF.GRAY,GRAY

main71072-22180-05i197708-197808

PF.BEIGE,BEIGE

main71072-22181-01i197808-198008

PF.BLACK,BLACK

main71072-22181-02i197808-198008

PF.DARK WINE,RED/MAROON

main71072-22181-05i197808-198008

PF.BEIGE,BEIGE

main71072-22250-02i197808-198008

FB.DARK WINE,RED/MAROON

main71072-22250-03i197808-198008

FB.GRAY,GRAY

main71072-22250-05i197808-198008

FB.BEIGE,BEIGE

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-22530-01i197708-197808

FB.BLACK,BLACK

main71073-22530-03i197708-197808

FB.GRAY,GRAY

main71073-22530-05i197708-197808

FB.BEIGE,BEIGE

main71073-22531-01i197808-198008

FB.BLACK,BLACK

main71073-22531-02i197808-198008

FB.DARK WINE,RED/MAROON

main71073-22531-05i197808-198008

FB.BEIGE,BEIGE

main71073-22540-01i197708-198008

PF.BLACK,BLACK

main71073-22540-02i197808-198008

PF.DARK WINE,RED/MAROON

main71073-22540-03i197708-197808

PF.GRAY,GRAY

main71073-22540-05i197708-198008

PF.BEIGE,BEIGE

main71073-22750-02i197808-198008

FB.DARK WINE,RED/MAROON

main71073-22750-03i197808-198008

FB.GRAY,GRAY

main71073-22750-05i197808-198008

FB.BEIGE,BEIGE

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-22510-01i197708-197808

FB.BLACK,BLACK

main71074-22510-03i197708-197808

FB.GRAY,GRAY

main71074-22510-05i197708-197808

FB.BEIGE,BEIGE

main71074-22511-01i197808-198008

FB.BLACK,BLACK

main71074-22511-02i197808-198008

FB.DARK WINE,RED/MAROON

main71074-22511-05i197808-198008

FB.BEIGE,BEIGE

main71074-22580-01i197708-198008

PF.BLACK,BLACK

main71074-22580-02i197808-198008

PF.DARK WINE,RED/MAROON

main71074-22580-03i197708-197808

PF.GRAY,GRAY

main71074-22580-05i197708-198008

PF.BEIGE,BEIGE

main71074-22640-02i197808-198008

FB.DARK WINE,RED/MAROON

main71074-22640-03i197808-198008

FB.GRAY,GRAY

main71074-22640-05i197808-198008

FB.BEIGE,BEIGE

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-22400-01i197708-197808

FB.BLACK,BLACK

main71410-22400-03i197708-197808

FB.GRAY,GRAY

main71410-22400-05i197708-197808

FB.BEIGE,BEIGE

main71410-22401-01i197808-198008

FB.BLACK,BLACK

main71410-22401-02i197808-198008

FB.DARK WINE,RED/MAROON

main71410-22401-05i197808-198008

FB.BEIGE,BEIGE

main71410-22450-01i197708-197808

PF.BLACK,BLACK

main71410-22450-03i197708-197808

PF.GRAY,GRAY

main71410-22450-05i197708-197808

PF.BEIGE,BEIGE

main71410-22451-01i197808-198008

PF.BLACK,BLACK

main71410-22451-02i197808-198008

PF.DARK WINE,RED/MAROON

main71410-22451-05i197808-198008

PF.BEIGE,BEIGE

main71410-22550-02i197808-198008

FB.DARK WINE,RED/MAROON

main71410-22550-03i197808-198008

FB.GRAY,GRAY

main71410-22550-05i197808-198008

FB.BEIGE,BEIGE

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-22170-01i197708-197808

FB.BLACK,BLACK

main71420-22170-03i197708-197808

FB.GRAY,GRAY

main71420-22170-05i197708-197808

FB.BEIGE,BEIGE

main71420-22171-01i197808-198008

FB.BLACK,BLACK

main71420-22171-02i197808-198008

FB.DARK WINE,RED/MAROON

main71420-22171-05i197808-198008

FB.BEIGE,BEIGE

main71420-22210-01i197708-197808

PF.BLACK,BLACK

main71420-22210-03i197708-197808

PF.GRAY,GRAY

main71420-22210-05i197708-197808

PF.BEIGE,BEIGE

main71420-22211-01i197808-198008

PF.BLACK,BLACK

main71420-22211-02i197808-198008

PF.DARK WINE,RED/MAROON

main71420-22211-05i197808-198008

PF.BEIGE,BEIGE

main71420-22320-02i197808-198008

FB.DARK WINE,RED/MAROON

main71420-22320-03i197808-198008

FB.GRAY,GRAY

main71420-22320-05i197808-198008

FB.BEIGE,BEIGE

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-22520-01i197708-197808

FB.BLACK,BLACK

main71430-22520-03i197708-197808

FB.GRAY,GRAY

main71430-22520-05i197708-197808

FB.BEIGE,BEIGE

main71430-22521-01i197808-198008

FB.BLACK,BLACK

main71430-22521-02i197808-198008

FB.DARK WINE,RED/MAROON

main71430-22521-05i197808-198008

FB.BEIGE,BEIGE

main71430-22570-01i197708-197808

PF.BLACK,BLACK

main71430-22570-03i197708-197808

PF.GRAY,GRAY

main71430-22570-05i197708-197808

PF.BEIGE,BEIGE

main71430-22571-01i197808-198008

PF.BLACK,BLACK

main71430-22571-02i197808-198008

PF.DARK WINE,RED/MAROON

main71430-22571-05i197808-198008

PF.BEIGE,BEIGE

main71430-22810-02i197808-198008

FB.DARK WINE,RED/MAROON

main71430-22810-03i197808-198008

FB.GRAY,GRAY

main71430-22810-05i197808-198008

FB.BEIGE,BEIGE

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-22410-01i197708-197808

FB.BLACK,BLACK

main71440-22410-03i197708-197808

FB.GRAY,GRAY

main71440-22410-05i197708-197808

FB.BEIGE,BEIGE

main71440-22411-01i197808-198008

FB.BLACK,BLACK

main71440-22411-02i197808-198008

FB.DARK WINE,RED/MAROON

main71440-22411-05i197808-198008

FB.BEIGE,BEIGE

main71440-22460-01i197708-197808

PF.BLACK,BLACK

main71440-22460-03i197708-197808

PF.GRAY,GRAY

main71440-22460-05i197708-197808

PF.BEIGE,BEIGE

main71440-22461-01i197808-198008

PF.BLACK,BLACK

main71440-22461-02i197808-198008

PF.DARK WINE,RED/MAROON

main71440-22461-05i197808-198008

PF.BEIGE,BEIGE

main71440-22700-02i197808-198008

FB.DARK WINE,RED/MAROON

main71440-22700-03i197808-198008

FB.GRAY,GRAY

main71440-22700-05i197808-198008

FB.BEIGE,BEIGE

71579BOARD, FRONT SEATBACK

main71701-22040-01×2i197708-197808

BLACK,BLACK

main71701-22040-03×2i197708-197808

GRAY,GRAY

main71701-22040-05×2i197708-197808

BEIGE,BEIGE

main71701-22041-01×2i197808-198008

BLACK,BLACK

main71701-22041-02×2i197808-198008

DARK WINE,RED/MAROON

main71701-22041-05×2i197808-198008

BEIGE,BEIGE

71579AWASHER, FRONT SEATBACK BOARD SETTING

main71328-30010×2i197708-197808

main71788-22010-01×2i197808-198008

BLACK,BLACK

main71788-22010-02×2i197808-198008

DARK WINE,RED/MAROON

main71788-22010-05×2i197808-198008

BEIGE,BEIGE

71812CLIP (FOR FRONT SEAT CUSHION COVER)

main71812-30010i197708-198008

71950HEADREST ASSY, FRONT SEAT

main71910-22240-01×2i197708-198008

BLACK,BLACK

main71910-22240-02×2i197808-198008

DARK WINE,RED/MAROON

main71910-22240-03×2i197708-197808

GRAY,GRAY

main71910-22240-05×2i197708-198008

BEIGE,BEIGE

main71910-22261-02×2i197808-198008

DARK WINE,RED/MAROON

main71910-22261-03×2i197808-198008

GRAY,GRAY

main71910-22261-05×2i197808-198008

BEIGE,BEIGE

71950CCOVER, FRONT SEAT HEADREST UNDER

main71922-22010-01×2i197808-198008

BLACK

71956SUPPORT, HEADREST

main71956-30020-01×2i197708-198008

L/LOCK,BLACK,BLACK

main71956-30020-02×2i197808-198008

L/LOCK,DARK WINE,DARK WINE

main71956-30020-05×2i197708-198008

L/LOCK,BEIGE,BEIGE

main71990-30020-01×2i197708-198008

W/LOCK,BLACK,BLACK

main71990-30020-02×2i197808-198008

W/LOCK,DARK WINE,DARK WINE

main71990-30020-05×2i197708-198008

W/LOCK,BEIGE,BEIGE

72510ADJUSTER ASSY, RECLINING SEATBACK, RH

main72510-20100i197808-198008

main72510-22050i197708-197808

72519KNOB, RECLINING SEATBACK ADJUSTING ARM

main72525-20050-01i197808-198008

FOR RH. BLACK,BLACK

main72525-20050-02i197808-198008

FOR RH. DARK WINE,RED/MAROON

main72525-20050-05i197808-198008

FOR RH. BEIGE,BEIGE

main72525-22010-01i197708-197808

FOR RH.BLACK,BLACK

main72525-22010-05i197708-197808

FOR RH.BEIGE,BEIGE

main72526-20040-01i197808-198008

FOR LH. BLACK,BLACK

main72526-20040-02i197808-198008

FOR LH. DARK WINE,RED/MAROON

main72526-20040-05i197808-198008

FOR LH. BEIGE,BEIGE

main72526-22010-01i197708-197808

FOR LH.BLACK,BLACK

main72526-22010-05i197708-197808

FOR LH.BEIGE,BEIGE

72520ADJUSTER ASSY, RECLINING SEATBACK, LH

main72520-20110i197808-198008

main72520-22050i197708-197808

72537COVER, RECLINING HINGE OUTER, RH

main71811-20060-01i197808-198008

BLACK,BLACK

main71811-20060-02i197808-198008

DARK WINE,RED/MAROON

main71811-20060-05i197808-198008

BEIGE,BEIGE

main71821-22050-01i197708-197808

BLACK,BLACK

main71821-22050-03i197708-197808

GRAY,GRAY

main71821-22050-05i197708-197808

BEIGE,BEIGE

72538COVER, RECLINING HINGE OUTER, LH

main71812-20010-01i197808-198008

BLACK,BLACK

main71812-20010-02i197808-198008

DARK WINE,RED/MAROON

main71812-20010-05i197808-198008

BEIGE,BEIGE

main71822-22050-01i197708-197808

BLACK,BLACK

main71822-22050-03i197708-197808

GRAY,GRAY

main71822-22050-05i197708-197808

BEIGE,BEIGE

72791LEVER, LUMBAR SUPPORT

main72791-22010-01i197708-198008

BLACK,BLACK

main72791-22010-02i197808-198008

DARK WINE,RED/MAROON

main72791-22010-05i197708-198008

BEIGE,BEIGE

72797SPACER, LUMBAR SUPPORT

main72797-22010-01i197708-198008

BLACK,BLACK

main72797-22010-02i197808-198008

DARK WINE,RED/MAROON

main72797-22010-05i197708-198008

BEIGE,BEIGE

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

9011910037

main90119-10037

9011910112

main90119-10112

9015150003

main90151-50003

9015480004

main90154-80004

9015980004

main90159-80004

9016240026

main90162-40026

9038612016

main90386-12016

9038612099

main90386-12099

9056414155

main90564-14155

9324954005

main93249-54005

9354054008

main93540-54008

9356014008

main93560-14008

9461120800

main94611-20800

9616001000

main96160-01000

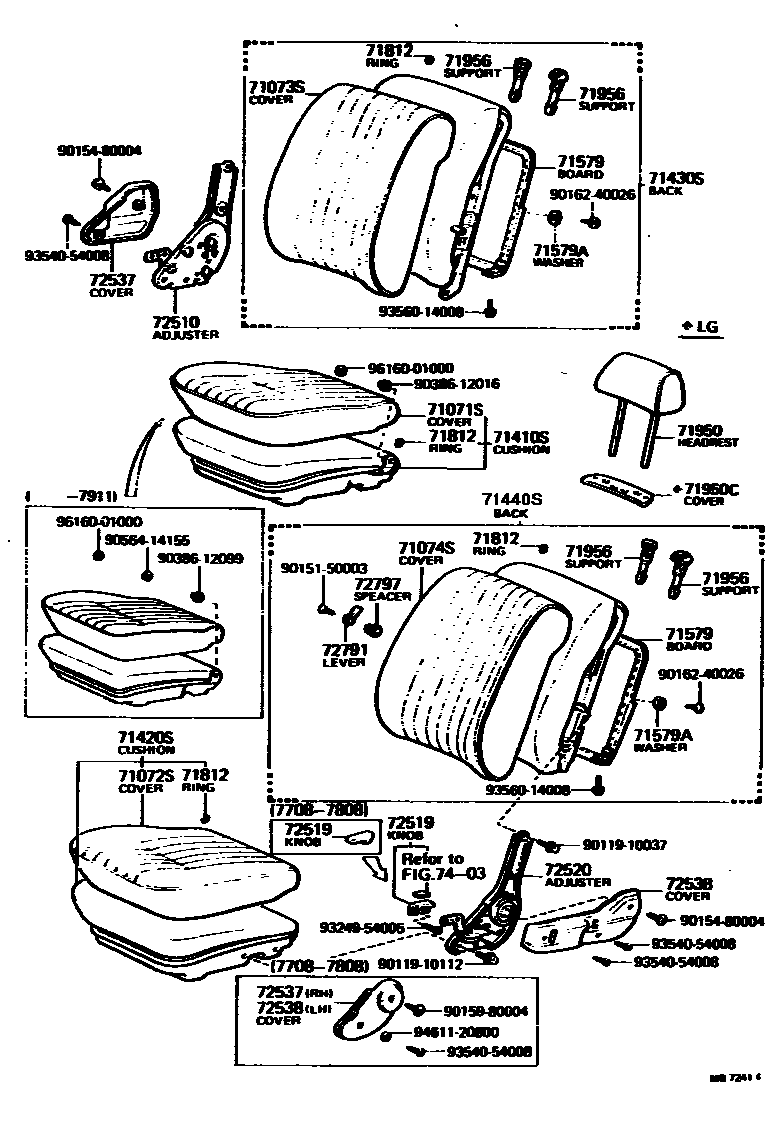

FRONT SEAT & SEAT TRACK
