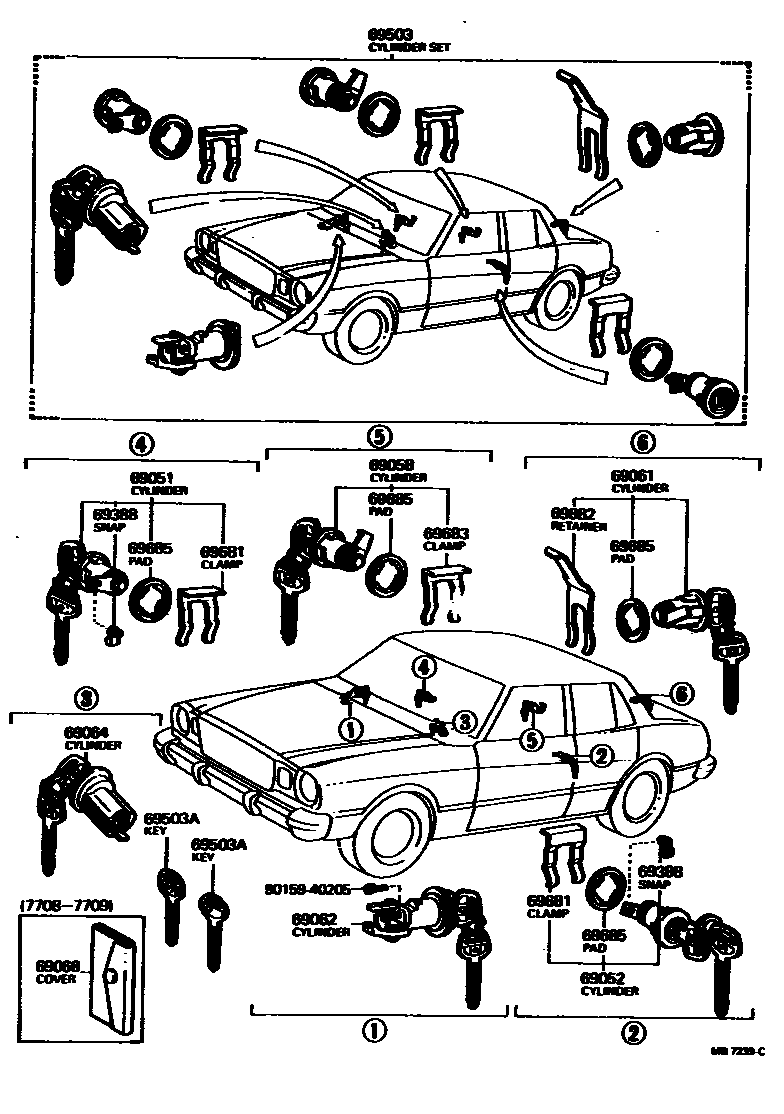

LOCK CYLINDER SET
69058CYLINDER & KEY SET, FUEL FILLER LID
69061CYLINDER & KEY SET, LUGGAGE LOCK
69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69068COVER SUB-ASSY, KEY
69388SNAP, ROD(FOR DOOR LOCK)
FOR FRONT DOOR
RH,FOR FRONT DOOR
LH,FOR FRONT DOOR
FOR BACK DOOR
69503CYLINDER SET, LOCK
69503AKEY, BLANK
MASTER KEY,FOR MASTER KEY
SUB KEY,FOR SUB KEY
69681CLAMP, DOOR LOCK CYLINDER & SLEEVE
69682RETAINER, LOCK CYLINDER
69683CLAMP, FUEL LOCK CYLINDER
69685PAD, LOCK CYLINDER
FOR FRONT DOOR LOCK
FOR FUEL LID
FOR BACK DOOR LOCK
FOR LUGGAGE DOOR LOCK
9015940205
main90159-40205
15 parts on this diagram · 3 diagrams in section
