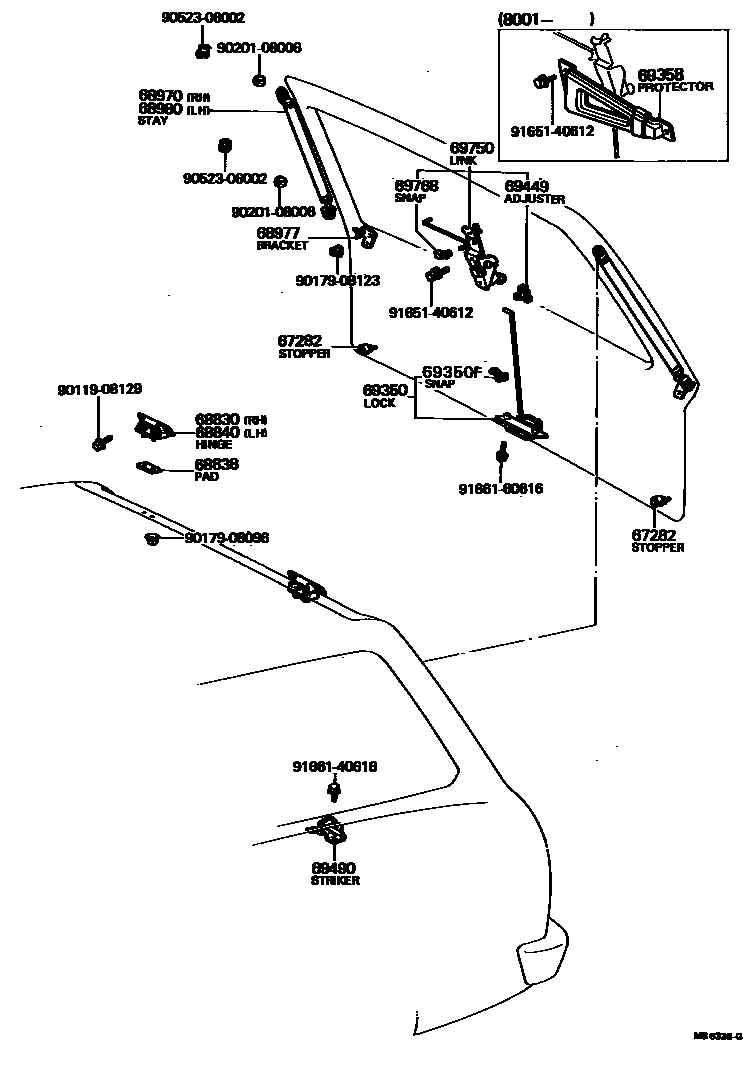

BACK DOOR LOCK & HANDLE
67282STOPPER, BACK DOOR, NO.1
68830HINGE ASSY, BACK DOOR, RH
68838PAD, BACK DOOR HINGE, NO.1
68840HINGE ASSY, BACK DOOR, LH
68970STAY ASSY, BACK DOOR, RH
W/REAR WIPER
68977BRACKET, BACK DOOR STAY
FOR RH.
FOR LH.
68980STAY ASSY, BACK DOOR
W/REAR WIPER
69350LOCK ASSY, BACK DOOR
69350FSNAP, DOOR LOCK CONTROL ROD
69358PROTECTOR, BACK DOOR LOCK
69449ADJUSTER, BACK DOOR LOCK CONTROL LINK
69750LINK SUB-ASSY, BACK DOOR REMOTE CONTROL
69768SNAP, BACK DOOR LOCK CONTROL LINK
9011908129
main90119-08129
9017908096
main90179-08096
9017908123
main90179-08123
9020108006
main90201-08006
9052306002
main90523-06002
9165140612
main91651-40612
9166140616
main91661-40616
9166160616
main91661-60616
22 parts on this diagram · 1 diagram in section
