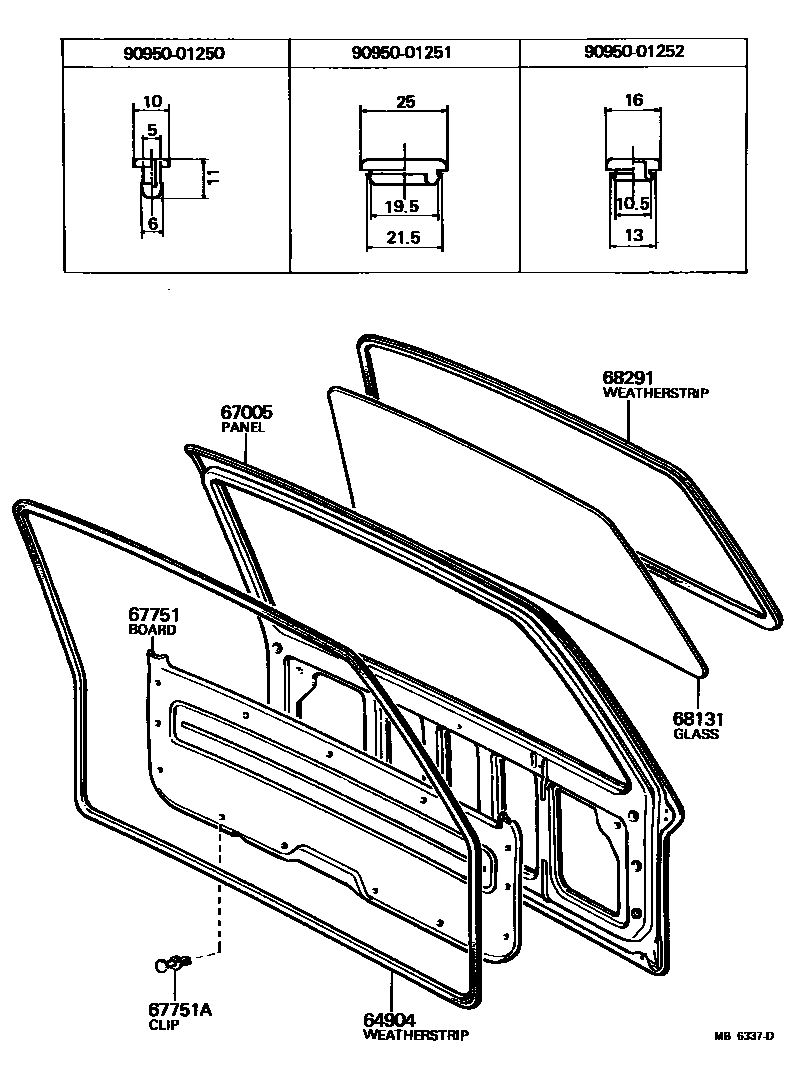

BACK DOOR PANEL & GLASS

64904WEATHERSTRIP SUB-ASSY, BACK DOOR

main67881-91605iMX32..LG..CBR197708-198008

67005PANEL SUB-ASSY, BACK DOOR

main67005-91661iMX36197708-197808

main67005-91662iMX36197708-197808

W/REAR WIPER

main67005-91678iMX32..LG..CBR197808-198008

main67005-91679iMX32..LG..CBR197808-198008

W/REAR WIPER

67751BOARD, BACK DOOR TRIM

main67751-91606-01iMX36197708-197808

BLACK,BLACK

main67751-91606-03iMX36197708-197808

GRAY,GRAY

main67751-91606-05iMX36197708-197808

BEIGE,BEIGE

main67751-91607-01iMX32..LG..CBR197808-198008

BLACK,BLACK

main67751-91607-02iMX32..LG..CBR197808-198008

DARK WINE,RED/MAROON

main67751-91607-05iMX32..LG..CBR197808-198008

BEIGE,BEIGE

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-08114-02×13iMX32..LG..CBR197808-198008

DARK WINE,RED/MAROON

main90467-08114-11×13iMX32..LG..CBR197708-198008

BLACK,BLACK

main90467-08114-25×13iMX32..LG..CBR197708-198008

BEIGE,BEIGE

main90467-08114-53×13iMX36197708-197808

GRAY,GRAY

68131GLASS, BACK DOOR

main68105-91612iMX32..LG..CBR197708-198008

ELECT.TN.TP.T=4.0

main68105-91615iMX32..LG..CBR197708-198008

ARCTIC,ELECT.TN.TP.T=4.0

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-91608iMX32..LG..CBR197708-198008

9095001250

main90950-01250

9095001251

main90950-01251

9095001252

main90950-01252

9 parts on this diagram · 1 diagram in section
