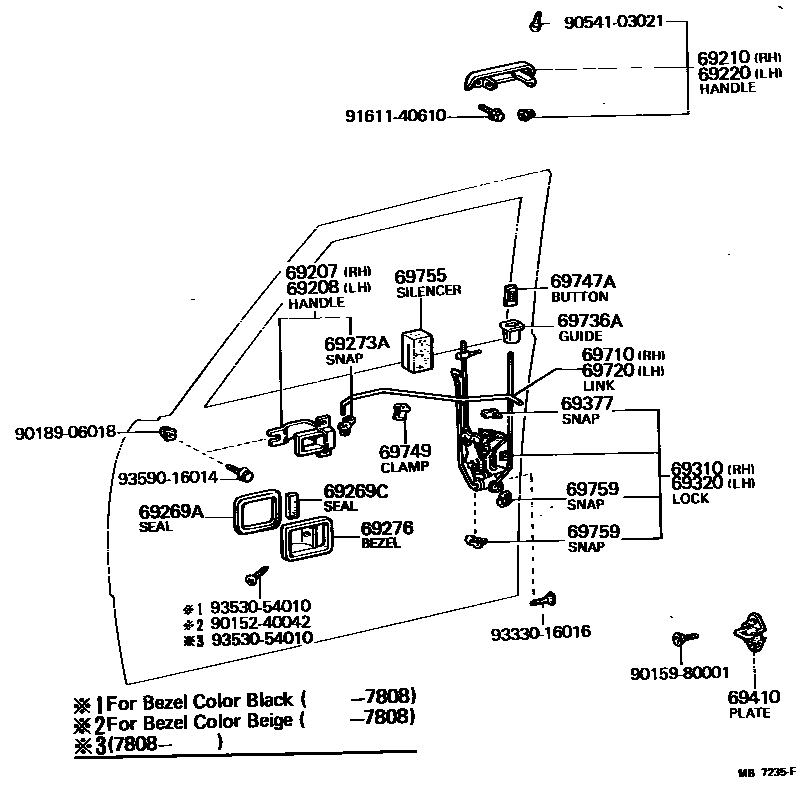

FRONT DOOR LOCK & HANDLE
69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69269ASEAL, DOOR INSIDE HANDLE NO.1(FOR FRONT DOOR)
69269CSEAL, DOOR INSIDE HANDLE NO.2(FOR FRONT DOOR)
69273ASNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)
69276BEZEL, FRONT DOOR INSIDE HANDLE
BLACK,BLACK
DARK WINE,RED/MAROON
BEIGE,BEIGE
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69377SNAP, FRONT DOOR LOCK CONTROL ROD
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
sub69410-89103
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69736AGUIDE, FRONT DOOR LOCK LINK
sub69736-22021
69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)
sub69741-32010
69749CLAMP, FRONT DOOR LOCK LINK
69755SILENCER, FRONT DOOR LOCK LINK
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
9015240042
main90152-40042
9015980001
main90159-80001
9018906018
main90189-06018
9054103021
main90541-03021
9161140610
main91611-40610
9333016016
main93330-16016
9353054010
main93530-54010
9359016014
main93590-16014
27 parts on this diagram · 1 diagram in section
