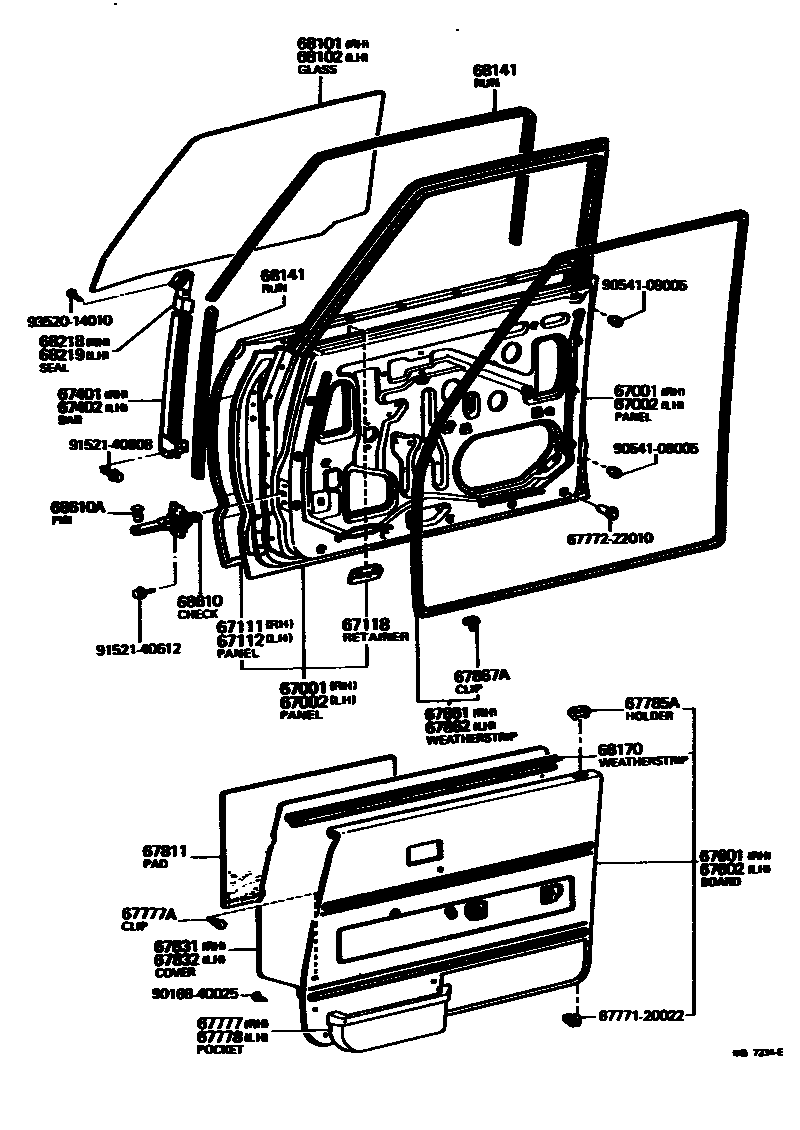

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67118RETAINER, OUTER MIRROR
RH
LH
67401BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT RH
67402BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT LH
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
BLACK,BLACK
GRAY,GRAY
BEIGE,BEIGE
BLACK,BLACK
DARK WINE,RED/MAROON
BEIGE,BEIGE
BLACK,BLACK
DARK WINE,RED/MAROON
BEIGE,BEIGE
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
BLACK,BLACK
GRAY,GRAY
BEIGE,BEIGE
BLACK,BLACK
DARK WINE,RED/MAROON
BEIGE,BEIGE
BLACK,BLACK
DARK WINE,RED/MAROON
BEIGE,BEIGE
67777POCKET, FRONT DOOR TRIM, RH
BLACK,BLACK
DARK WINE,RED/MAROON
BEIGE,BEIGE
67777ACLIP, FRONT DOOR POCKET
BLACK,BLACK
DARK WINE,RED/MAROON
BEIGE,BEIGE
67778POCKET, FRONT DOOR TRIM, LH
BLACK,BLACK
DARK WINE,RED/MAROON
BEIGE,BEIGE
67785AHOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)
67811PAD, FRONT DOOR SILENCER
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
68101GLASS SUB-ASSY, FRONT DOOR, RH
TN.TP.T=4.0
68102GLASS SUB-ASSY, FRONT DOOR, LH
TN.TP.T=4.0
68141RUN, FRONT DOOR GLASS
L=1677
L=1000
L=426
L=426
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68218SEAL, FRONT DOOR WINDOW CORNER, RH
68219SEAL, FRONT DOOR WINDOW CORNER, LH
68610CHECK ASSY, FRONT DOOR
68610APIN(FOR FRONT DOOR CHECK)
6777120022WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-20022
6777222010WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-22010
9016840025
main90168-40025
9054109005
main90541-09005
9152140608
main91521-40608
9152140612
main91521-40612
9352014010
main93520-14010
34 parts on this diagram · 1 diagram in section
