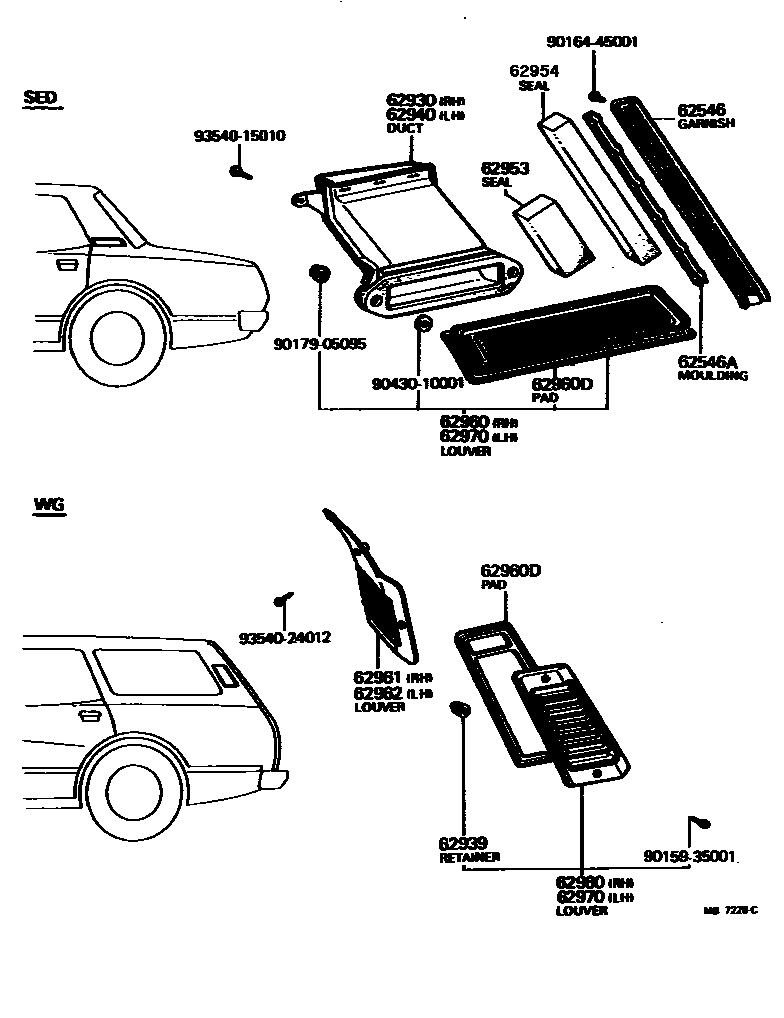

ROOF SIDE VENTILATOR
62546GARNISH, QUARTER VENTILATION, LOUVER
FOR RH. BEIGE,BEIGE
FOR RH. IVORY,IVORY
FOR LH. BEIGE,BEIGE
FOR LH. IVORY,IVORY
62546AMOULDING, QUARTER VENTILATION LOUVER GARNISH
BEIGE,BEIGE
IVORY,IVORY
62930DUCT ASSY, ROOF SIDE VENT, RH
62939RETAINER, ROOF SIDE VENT
62940DUCT ASSY, ROOF SIDE VENT, LH
62953SEAL, QUARTER VENT DUCT, NO.1
62954SEAL, QUARTER VENT DUCT, NO.2
62960LOUVER ASSY, ROOF SIDE VENT, RH
62960DPAD, NO.1(FOR ROOF SIDE VENT LOUVER)
FOR RH.
FOR RH.
FOR RH.
FOR LH.
FOR LH.
FOR LH.
62961LOUVER, ROOF SIDE VENT INLET, RH
GRAY,GRAY
BEIGE,BEIGE
IVORY,IVORY
62962LOUVER, ROOF SIDE VENT INLET, LH
GRAY,GRAY
BEIGE,BEIGE
IVORY,IVORY
62970LOUVER ASSY, ROOF SIDE VENT, LH
9015935001
main90159-35001
9016445001
main90164-45001
9017905095
main90179-05095
9043010001
main90430-10001
9354015010
main93540-15010
9354024012
main93540-24012
18 parts on this diagram · 1 diagram in section
