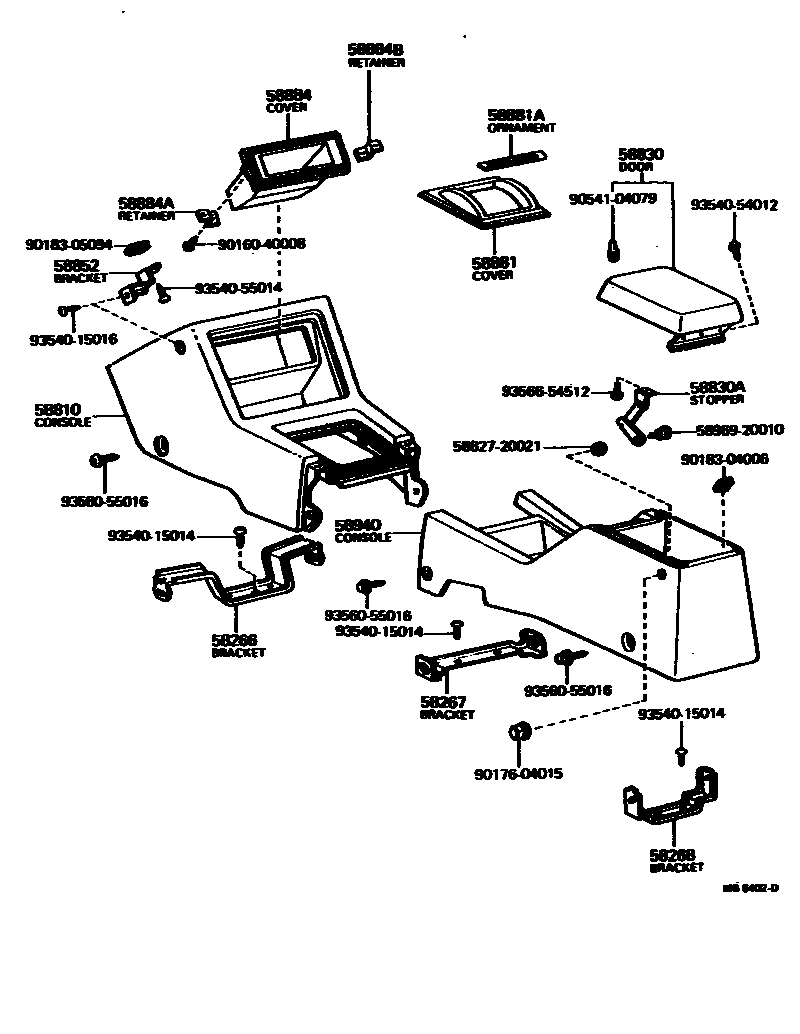

CONSOLE BOX & BRACKET
58266BRACKET, CONSOLE BOX SUPPORT, FRONT
58267BRACKET, CONSOLE BOX SUPPORT, CENTER
58268BRACKET, CONSOLE BOX SUPPORT, REAR
58810CONSOLE ASSY
BLACK,BLACK
DARK WINE,RED/MAROON
GRAY,GRAY
BEIGE,BEIGE
BLACK,BLACK
BEIGE,BEIGE
58830DOOR SUB-ASSY, CONSOLE COMPARTMENT
BLACK,BLACK
DARK WINE,RED/MAROON
GRAY,GRAY
BEIGE,BEIGE
58830ASTOPPER,CONSOLE COMPARTMENT DOOR
58852BRACKET, CONSOLE SUPPORT, UPPER LH
58881COVER, SHIFTING HOLE
GRAY M.,GRAY
SILVER M.,GRAY
SILVER,GRAY
58881AORNAMENT, CONSOLE BOX
58884COVER, STEREO OPENING
58884ARETAINER, STEREO OPENING, NO.1
58884BRETAINER, STEREO OPENING, NO.2
58940CONSOLE ASSY, REAR
BLACK,BLACK
DARK WINE,RED/MAROON
GRAY,GRAY
BEIGE,BEIGE
BLACK,BLACK
BEIGE,BEIGE
5882720021STOPPER, FUEL INLET COVER, LOWER
main58827-20021
5896920010PROTECTOR, SAFETY LATCH HAND
main58969-20010
9016040008
main90160-40008
9017604015
main90176-04015
9018304006
main90183-04006
9018305094
main90183-05094
9054104079
main90541-04079
9354015014
main93540-15014
9354015016
main93540-15016
9354054012
main93540-54012
9354055014
main93540-55014
9356055016
main93560-55016
9356654512
main93566-54512
26 parts on this diagram · 1 diagram in section
