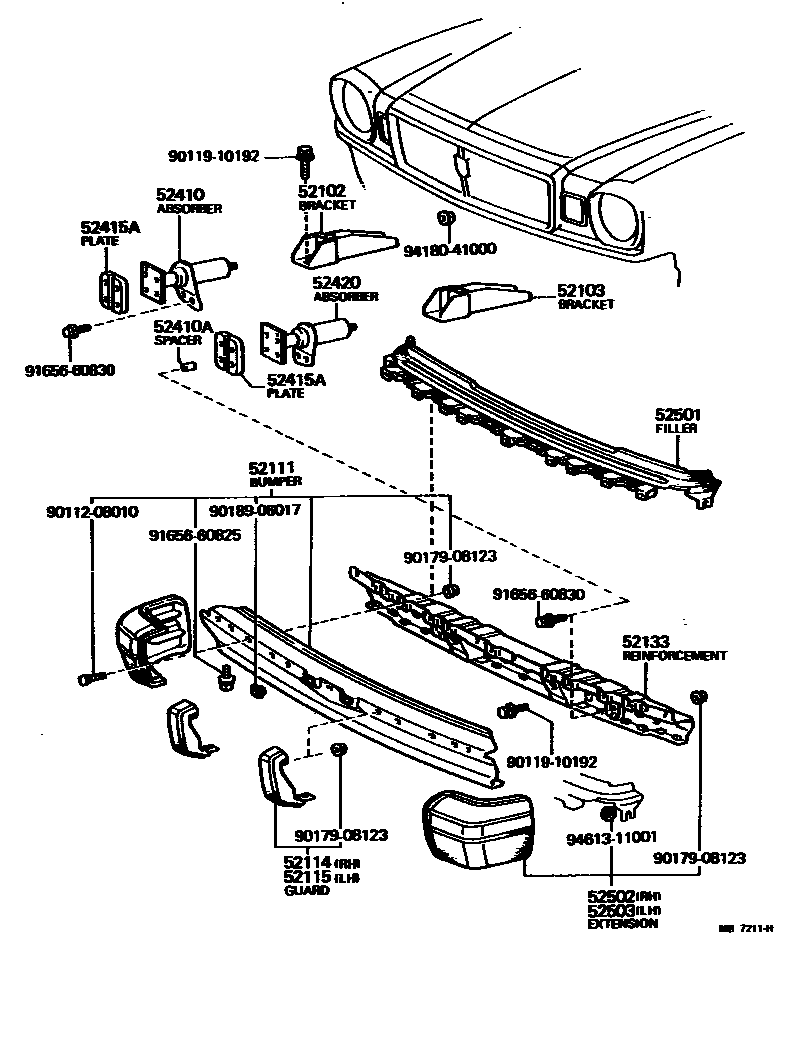

FRONT BUMPER & BUMPER STAY

52102BRACKET SUB-ASSY, FRONT BUMPER, RH

main52011-22030iMX32..LG..CBR197708-198008

52103BRACKET SUB-ASSY, FRONT BUMPER, LH

main52011-22030iMX32..LG..CBR197708-198008

52111BUMPER ASSY, FRONT

main52111-29315iMX32..LG..CBR197708-198008

52114GUARD, BUMPER, FRONT RH

main52401-29025iMX32..LG197708-197908

main52401-29026iMX3#197908-198008

52115GUARD, BUMPER, FRONT LH

main52401-29025iMX32..LG197708-197908

main52401-29026iMX3#197908-198008

52133REINFORCEMENT, FRONT BUMPER

main52021-22010iMX32..LG197708-197908

main52021-22011iMX3#197908-198008

52410ABSORBER, FRONT BUMPER, RH

main52601-22020iMX32..LG..CBR197708-198008

52410ASPACER, FRONT BUMPER ABSORBER

main90560-08421×8iMX32..LG..CBR197708-198008

52415APLATE, FRONT ABSORBER MOUNTING

main52415-22010×2iMX32..LG..CBR197708-198008

52420ABSORBER, FRONT BUMPER, LH

main52602-22010iMX32..LG..CBR197708-198008

52501FILLER SUB-ASSY, FRONT BUMPER

main52501-22010iMX32..LG..CBR197708-198008

52502EXTENSION SUB-ASSY, FRONT BUMPER, RH

main52102-29025iMX32..LG..CBR197708-198008

52503EXTENSION SUB-ASSY, FRONT BUMPER, LH

main52103-29125iMX32..LG..CBR197708-198008

9011208010

main90112-08010

9011910192

main90119-10192

9017908123

main90179-08123

9018906017

main90189-06017

9165660825

main91656-60825

9165660830

main91656-60830

9418041000

main94180-41000

9461311001

main94613-11001

21 parts on this diagram · 1 diagram in section
