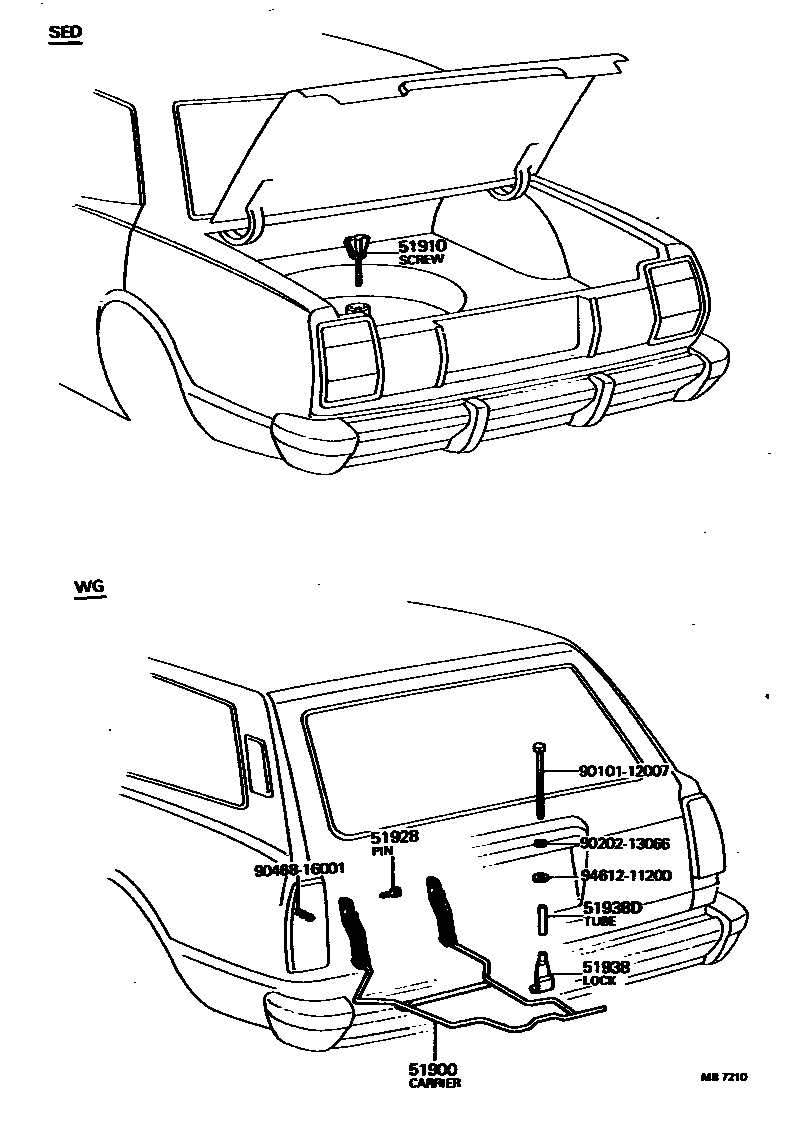

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-91608iMX36197708-197808

main51900-91610iMX32..LG..CBR197808-198008

51910SCREW ASSY, SPARE WHEEL CLAMP

main51910-14040iMX32..LG..CBR197901-198008

main51910-22020iMX32..LG197708-197901

51928PIN, SPARE WHEEL CARRIER

main90240-08008×2iMX32..LG..CBR197708-198008

51938LOCK, SPARE WHEEL CARRIER

main51938-13010iMX32..LG..CBR197708-198008

sub51938-28020

51938DTUBE(FOR SPARE WHEEL CARRIER BOLT)

main90440-16003iMX32..LG..CBR197708-198008

9010112007

main90101-12007

9020213066

main90202-13066

9046816001

main90468-16001

9461211200

main94612-11200

9 parts on this diagram · 1 diagram in section
