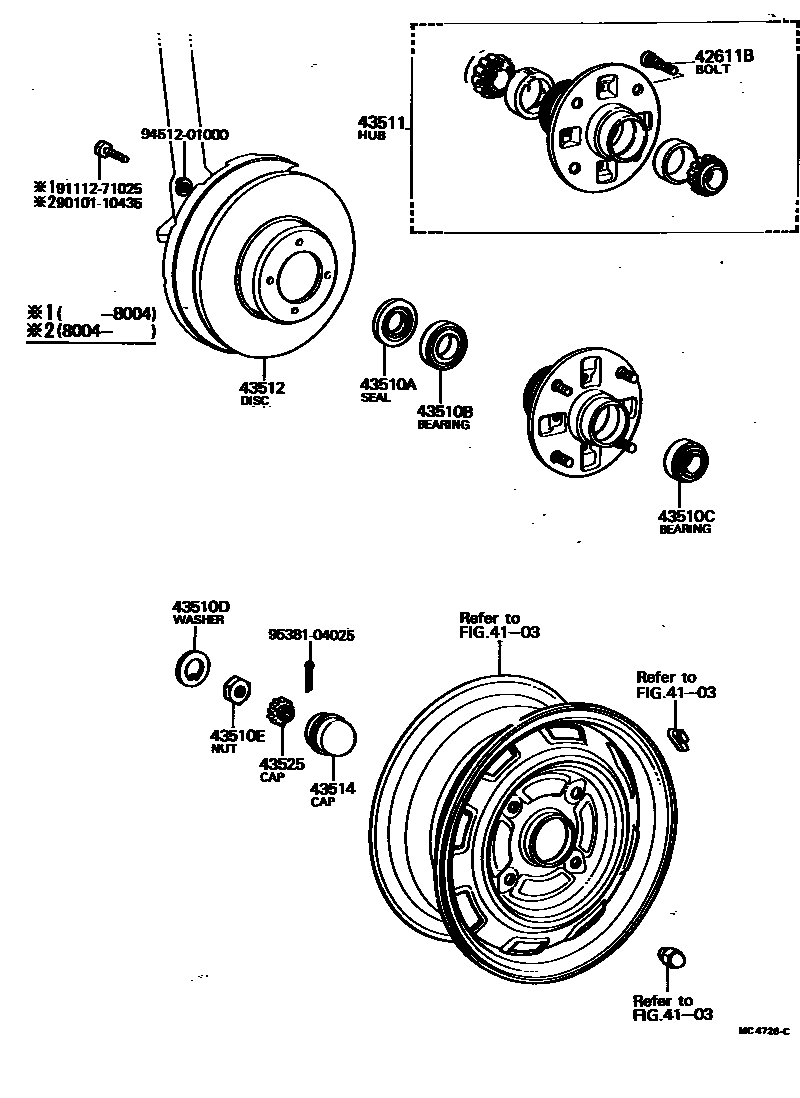

FRONT AXLE HUB

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02035×8iMX32..LG..CBR197710-198008

main90942-02036×8iMX3#197708-197710

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-48001×2iMX32..LG..CBR197708-198008

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-31036×2iMX32..LG..CBR197708-198008

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-19037×2iMX32..LG..CBR197708-198008

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20005×2iMX32..LG..CBR197708-198008

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185×2iMX32..LG..CBR197708-198008

43511HUB, FRONT AXLE

main43502-29015×2iMX32..LG..CBR197708-198008

43512DISC, FRONT

main43512-22030×2iMX32..LG..CBR197812-198008

main43512-22040×2iMX32..LG197708-197812

43514CAP, FRONT HUB GREASE

main43514-22020×2iMX32..LG..CBR197708-198008

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010×2iMX32..LG..CBR197708-198008

9010110435

main90101-10435

9111271025

main91112-71025

9451201000

main94512-01000

9538104025

main95381-04025

15 parts on this diagram · 1 diagram in section
