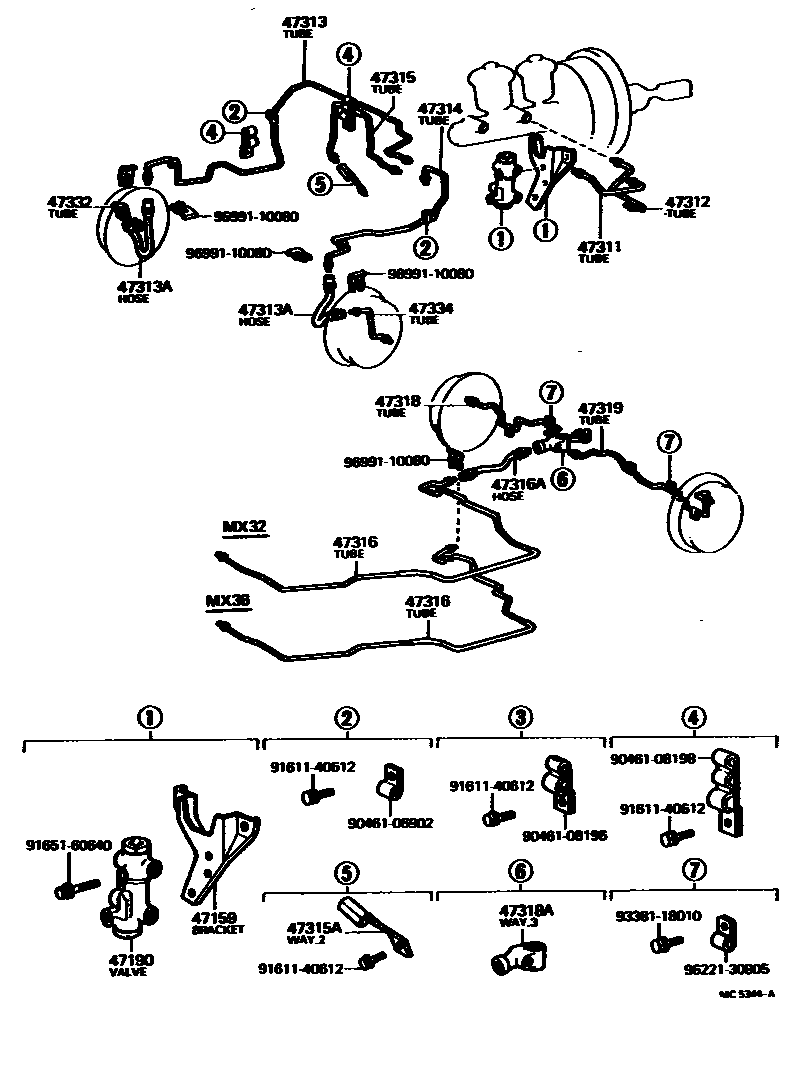

BRAKE TUBE & CLAMP

47159BRACKET, PROPORTIONING VALVE

main47159-22110iMX32..LG..CBR197708-198008

47190VALVE ASSY, PROPORTIONING & BY-PASS

main47190-22040iMX32..LG..CBR197708-198008

47311TUBE, FRONT BRAKE, NO.1

main47311-22160iMX3#197708-197709

main47311-22161iMX32..LG..CBR197709-198008

47312TUBE, FRONT BRAKE, NO.2

main47321-22010iMX3#197708-197709

main47321-22011iMX32..LG..CBR197709-198008

47313TUBE, FRONT BRAKE, NO.3

main47312-22030iMX32..LG..CBR197708-198008

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02347×2iMX32..LG197708-197902

main96950-33205×2iMX32..LG..CBR197902-198008

47314TUBE, FRONT BRAKE, NO.4

main47313-22170iMX32..LG..CBR197708-198008

47315TUBE, FRONT BRAKE, NO.5

main47322-22050iMX32..LG..CBR197708-198008

47315AWAY OR UNION(FOR REAR BRAKE TUBE)

main90412-10017iMX32..LG..CBR197708-198008

47316TUBE, FRONT BRAKE, NO.6

main47324-22030iMX32..LG..CBR197708-198008

main47324-23030iMX32..LG..CBR197708-198008

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02341iMX32..LG197708-197902

main90947-02346iMX32..LG..CBR197708-198008

main96940-33805iMX32..LG..CBR197902-198008

47318TUBE, FRONT BRAKE, NO.8

main47327-22010iMX32..LG..CBR197708-198008

main47327-23010iMX32..LG..CBR197708-198008

47318AWAY(FOR REAR RH BRAKE TUBE)

main90413-10120iMX32..LG..CBR197708-198008

47319TUBE, FRONT BRAKE, NO.9

main47328-22010iMX32..LG..CBR197708-198008

main47328-23010iMX32..LG..CBR197708-198008

47332TUBE, REAR BRAKE, NO.11

main47341-22010iMX32..LG..CBR197708-198008

47334TUBE, REAR BRAKE, NO.13

main47343-22010iMX32..LG..CBR197708-198008

9046106902

main90461-06902

9046108196

main90461-08196

9046108198

main90461-08198

9161140612

main91611-40612

9165160640

main91651-60640

9338118010

main93381-18010

9622130905

main96221-30905

9699110080

main96991-10080

24 parts on this diagram · 1 diagram in section
