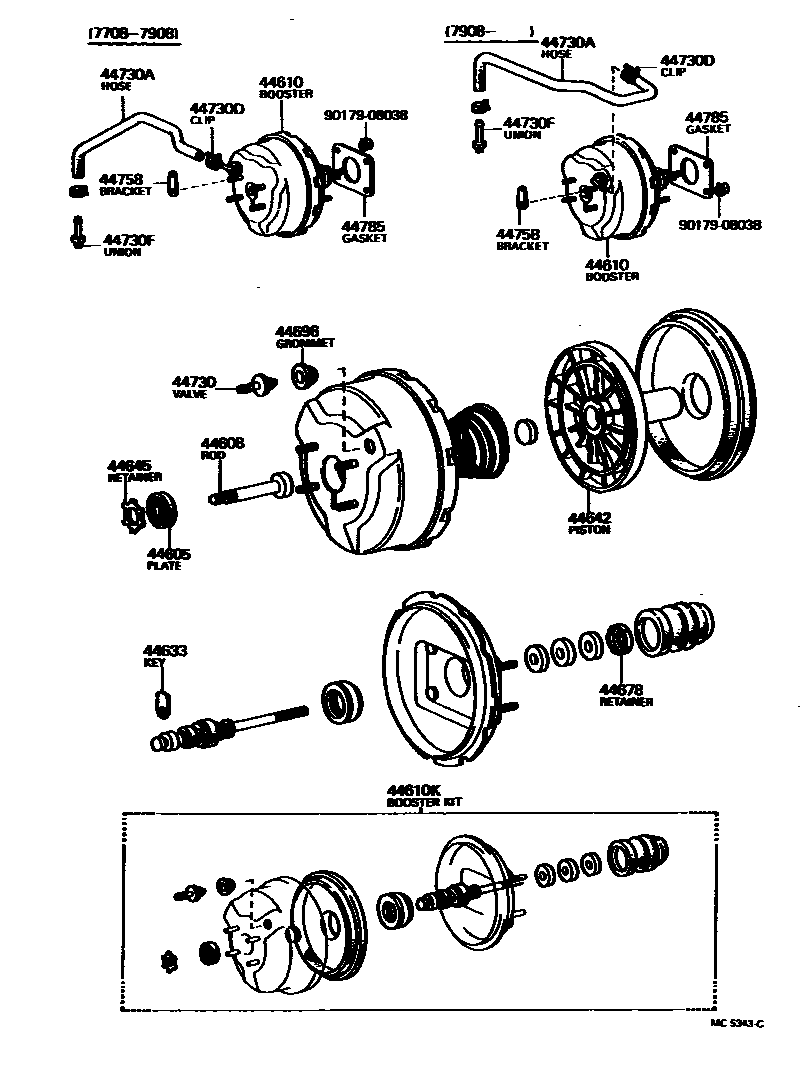

BRAKE BOOSTER & VACUUM TUBE

44605PLATE & SEAL SUB-ASSY, BOOSTER

main44605-22021iMX32..LG..CBR197708-198008

44608PUSH ROD SUB-ASSY, BOOSTER

main44608-14040iMX32..LG197708-197908

main44608-22090iMX3#197908-198008

44610BOOSTER ASSY, BRAKE

main44610-22270iMX32..LG197708-197908

main44610-22321iMX3#197908-198008

44610KBOOSTER KIT, BRAKE

main04443-22200iMX32..LG197708-197908

main04443-22220iMX3#197908-198008

44633KEY, BOOSTER VALVE PLUNGER

main44633-22020iMX32..LG..CBR197708-198008

44642PISTON, BRAKE BOOSTER

main44642-20330iMX32..LG197708-197908

main44642-25080iMX3#197908-198008

44645RETAINER, BOOSTER PUSH ROD SEAL

main44645-22020iMX32..LG..CBR197708-198008

44678RETAINER, BOOSTER AIR CLEANER

main44678-22020iMX32..LG..CBR197708-198008

44696GROMMET, CHECK VALVE

main90480-24517iMX32..LG..CBR197708-198008

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-22090iMX32..LG..CBR197708-198008

44730AHOSE, VACUUM, NO.1

main44773-22160iMX32..LG197708-197908

main44773-22161iMX3#197908-198008

44730DCLIP(FOR VACUUM HOSE, NO.1)

main90467-16141×2iMX32..LG..CBR197708-198008

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51009iMX32..LG197808-197908

main90404-51319iMX32..LG..CBR197808-198008

main90404-51320iMX32..LG197908-198008

44758BRACKET, VACUUM CHECK VALVE

main44758-20060iMX32..LG197708-197908

main44758-22030iMX3#197908-198008

44785GASKET, BRAKE BOOSTER

main44785-22010iMX3#197708-197802

main44785-30020iMX32..LG..CBR197802-198008

9017908038

main90179-08038

16 parts on this diagram · 1 diagram in section
