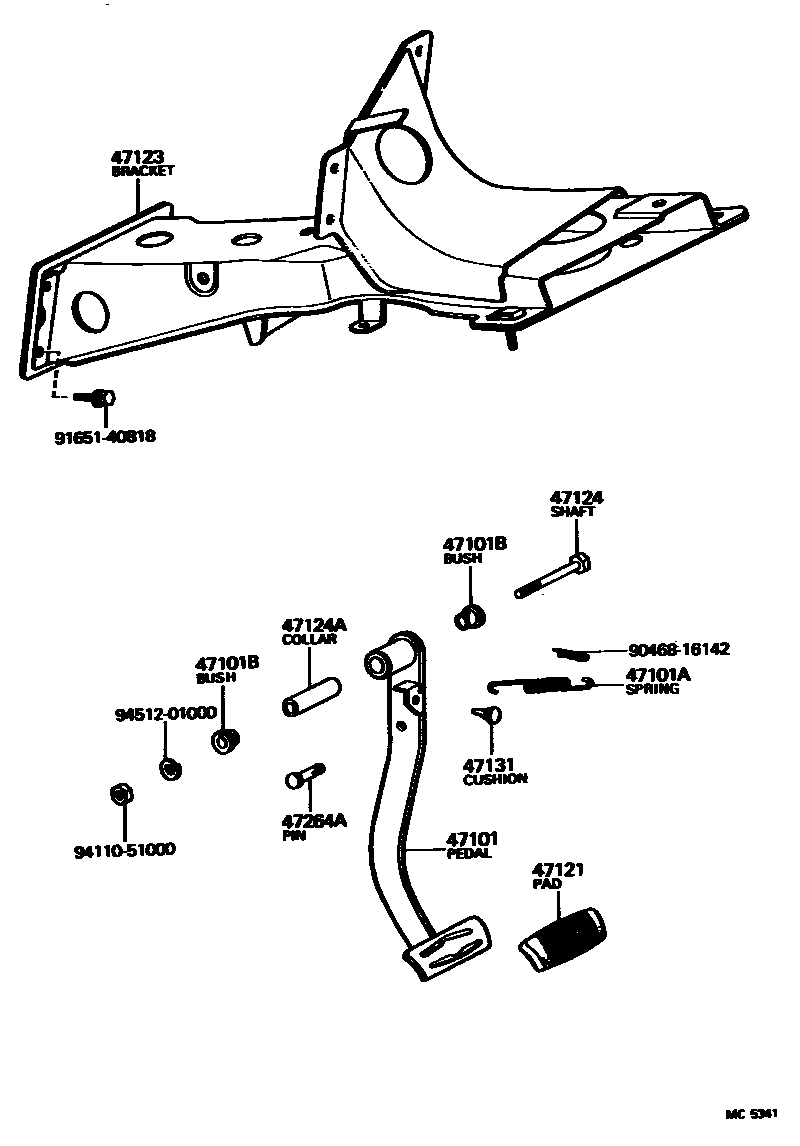

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-22140iMX32..LG..CBR197708-198008

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-16333iMX32..LG..CBR197708-198008

47101BBUSH(FOR BRAKE PEDAL)

main90386-13192×2iMX32..LG..CBR197708-198008

47121PAD, BRAKE PEDAL

main47121-30050iMX32..LG..CBR197708-198008

47123BRACKET, BRAKE PEDAL

main55106-22080iMX3#197708-197808

main55106-22081iMX32..LG..CBR197808-198008

47124SHAFT, BRAKE PEDAL

main90101-10039iMX32..LG..CBR197708-198008

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iMX32..LG..CBR197708-198008

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iMX32..LG..CBR197708-198008

47264APIN(FOR PUSH ROD)

main90249-10064iMX32..LG..CBR197708-198008

9046816142

main90468-16142

9165140818

main91651-40818

9411051000

main94110-51000

9451201000

main94512-01000

13 parts on this diagram · 1 diagram in section
