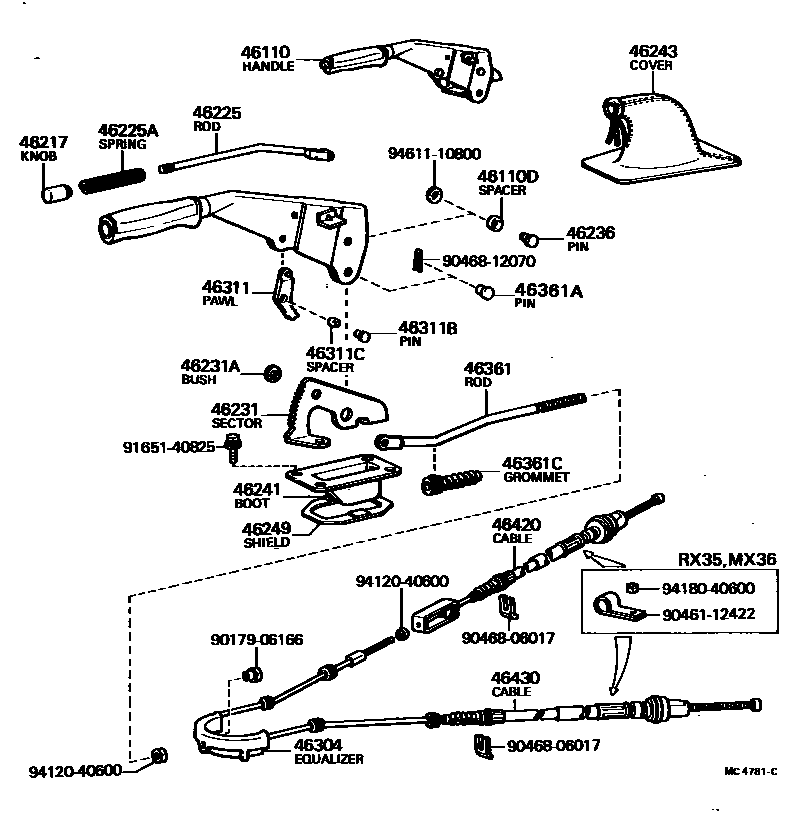

PARKING BRAKE & CABLE
46110HANDLE ASSY, PARKING BRAKE CONTROL
BLACK
BROWN
BROWN
BLACK
46110DSPACER(FOR PARKING BRAKE HANDLE)
46217KNOB, PARKING BRAKE RELEASE ROD
BLACK,BLACK
BLACK,BLACK
BROWN,BROWN
46225ROD, PARKING BRAKE PAWL RELEASE
46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
46231SECTOR, PARKING BRAKE LEVER
46231ABUSH(FOR PARKING BRAKE LEVER SECTOR)
46236PIN, LEVER PIVOT
46241BOOT, PARKING BRAKE LEVER
46243COVER, PARKING BRAKE LEVER
46249SHIELD, PARKING BRAKE HOLE
46304EQUALIZER SUB-ASSY, PARKING BRAKE
46311PAWL, PARKING BRAKE
46311BPIN, PARKING BRAKE PAWL PIVOT
46311CSPACER(FOR PARKING BRAKE PAWL PIVOT)
46361ROD, PARKING BRAKE PULL
46361APIN, PARKING BRAKE PULL ROD
46361CGROMMET(FOR PARKING BRAKE PULL ROD)
46420CABLE ASSY, PARKING BRAKE, NO.2
46430CABLE ASSY, PARKING BRAKE, NO.3
9017906166
main90179-06166
9046112422
main90461-12422
9046806017
main90468-06017
9046812070
main90468-12070
9165140825
main91651-40825
9412040600
main94120-40600
9418040600
main94180-40600
9461110800
main94611-10800
28 parts on this diagram · 2 diagrams in section
