STEERING WHEEL

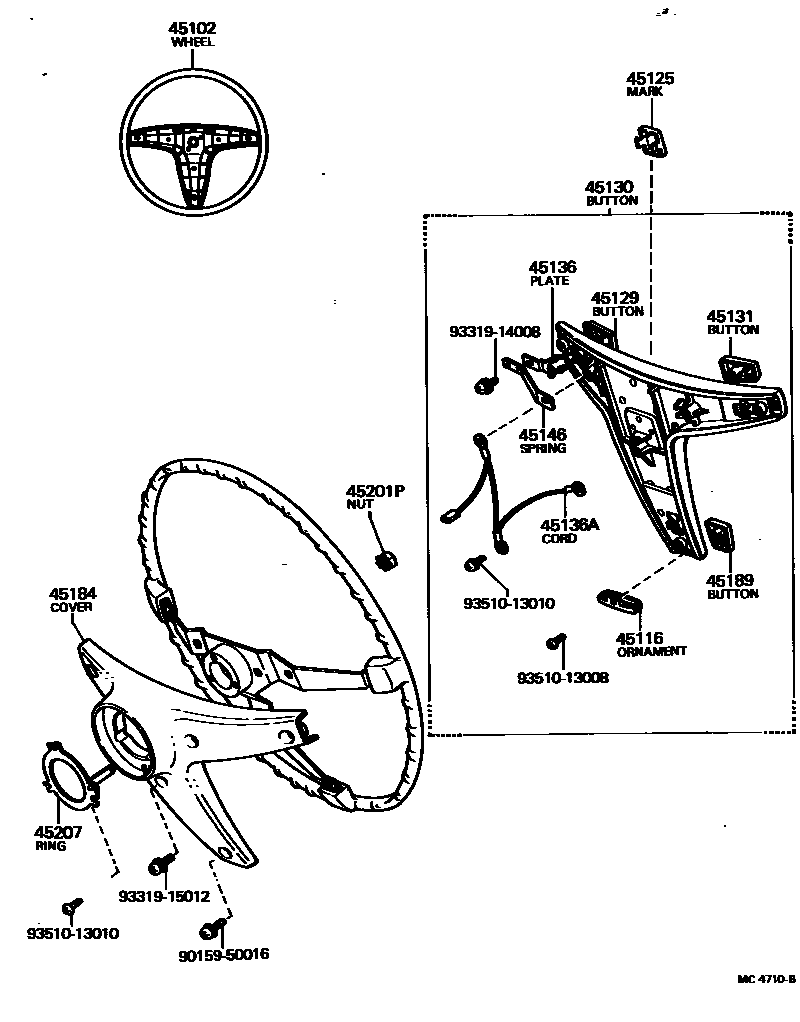

Parts diagram

45102WHEEL SUB-ASSY, STEERING

main45100-14250-01i197908-198008

BLACK,BLACK

main45100-14250-02i197908-198008

DARK WINE,RED/MAROON

main45100-14250-05i197908-198008

BEIGE,BEIGE

main45100-22120-01i197708-197808

BLACK,BLACK

main45100-22120-02i197808-198008

DARK WINE,RED/MAROON

main45100-22120-06i197808-198008

BROWN,BROWN

main45100-22130-01i197808-197908

BLACK,BLACK

main45100-22130-02i197808-197908

DARK WINE,RED/MAROON

main45100-22130-05i197808-197908

BEIGE,BEIGE

45116ORNAMENT, STEERING WHEEL, NO.1

main45116-22020-03×3i197708-197808

GRAY M.,GRAY

main45116-22020-13×3i197708-197808

SLILVER M.,GRAY

main45116-22020-23×3i197808-198008

SLIVER,GRAY

main45116-22031×3i197808-197908

45125MARK, STEERING WHEEL PAD

main45125-22050i197708-197808

main45125-22061i197808-197908

main45125-22090i197908-198008

45129BUTTON, HORN, NO.2

main45129-14020×2i197908-198008

main45131-22060i197908-198008

45130BUTTON ASSY, HORN

main45130-22050-01i197708-197808

BLACK,BLACK

main45130-22050-03i197708-197808

GRAY,GRAY

main45130-22050-05i197708-197808

BEIGE,BEIGE

main45130-22061-01i197808-197908

BLACK,BLACK

main45130-22061-02i197808-197908

DARK WINE,RED/MAROON

main45130-22061-05i197808-197908

BEIGE,BEIGE

main45130-22100-01i197808-198008

BLACK,BLACK

main45130-22100-02i197808-198008

DARK WINE,RED/MAROON

main45130-22100-05i197808-198008

BEIGE,BEIGE

45131BUTTON, HORN, NO.1

main45131-14070-01×2i197908-198008

BLACK,BLACK

main45131-14070-02×2i197908-198008

DARK WINE,RED/MAROON

main45131-14070-06×2i197908-198008

BROWN,BROWN

main45131-22060i197708-197908

45136PLATE, HORN BUTTON CONTACT

main45136-22040×3i197708-197908

45136ACORD(FOR HORN CONTACT RING)

main90945-02032i197708-197908

45146SPRING, HORN BUTTON CONTACT

main45146-22040×3i197708-197908

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-14030-01i197908-198008

BLACK,BLACK

main45184-14030-02i197908-198008

DARK WINE,RED/MAROON

main45184-14030-06i197908-198008

BROWN,BROWN

main45184-22020-01i197908-198008

BLACK,BLACK

main45184-22020-02i197808-197908

DARK WINE,RED/MAROON

main45184-22020-03i197708-197808

GRAY,GRAY

main45184-22020-05i197708-197908

BEIGE,BEIGE

45189BUTTON, HORN, NO.3

main45131-22060i197708-197908

45201PNUT, STEERING WHEEL SET

main90179-12086i197708-198008

45207RING, HORN CONTACT

main45176-14030i197908-198008

main45176-30030i197708-197908

9015950016

main90159-50016

9331914008

main93319-14008

9331915012

main93319-15012

9351013008

main93510-13008

9351013010

main93510-13010

18 parts on this diagram · 3 diagrams in section
