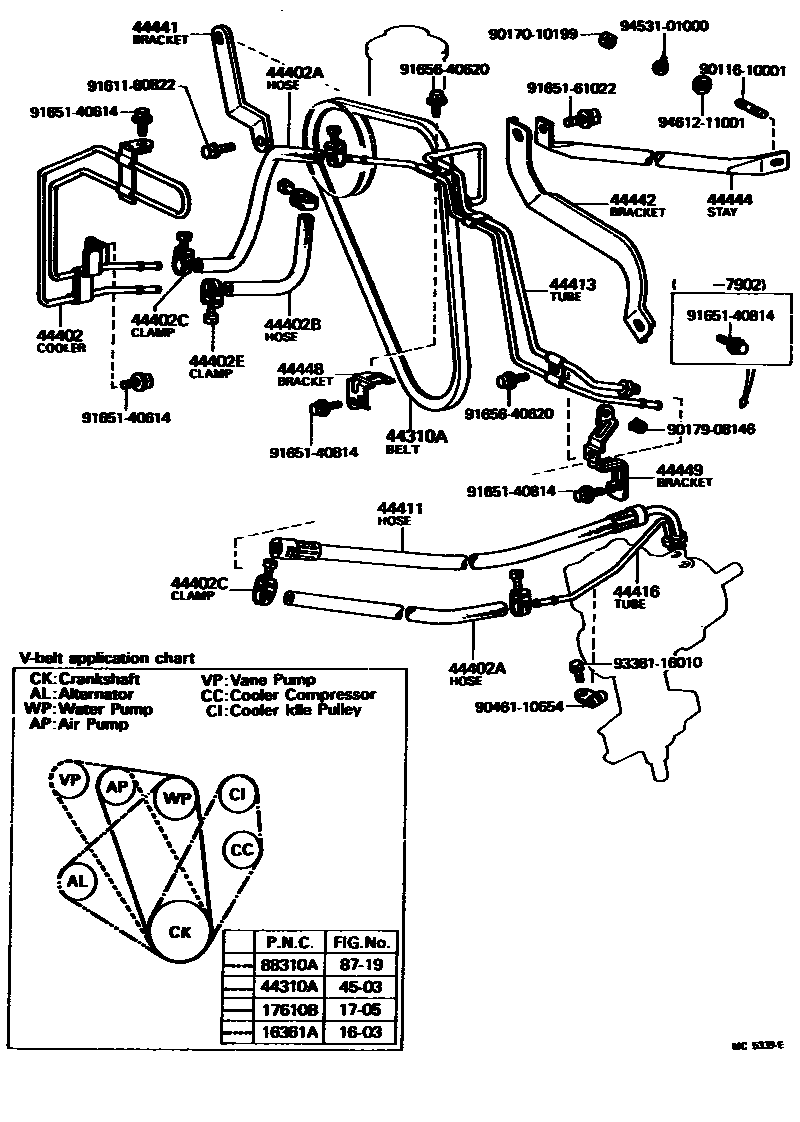

POWER STEERING TUBE
44310ABELT, V(FOR VANE PUMP)
L=1395
44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402AHOSE, POWER STEERING OIL COOLER INLET
44402BHOSE, POWER STEERING OIL COOLER OUTLET
44402CCLAMP, POWER STEERING OIL COOLER INLET HOSE
44402ECLAMP, POWER STEERING OIL COOLER OUTLET HOSE
44413TUBE, PRESSURE FEED, NO.1
44416TUBE, RETURN(FOR STEERING GEAR OUTLET)
44441BRACKET, PUMP, FRONT
44444STAY, PUMP, REAR
N0.1
N0.2
44448BRACKET, PRESSURE FEED HOSE SUPPORT, NO.1
44449BRACKET, PRESSURE FEED HOSE SUPPORT, NO.2
9011610001
main90116-10001
9017010199
main90170-10199
9017908146
main90179-08146
9046110654
main90461-10654
9161160822
main91611-60822
9165140614
main91651-40614
9165140814
main91651-40814
9165161022
main91651-61022
9165640620
main91656-40620
9338116010
main93381-16010
9453101000
main94531-01000
9461211001
main94612-11001
26 parts on this diagram · 2 diagrams in section
