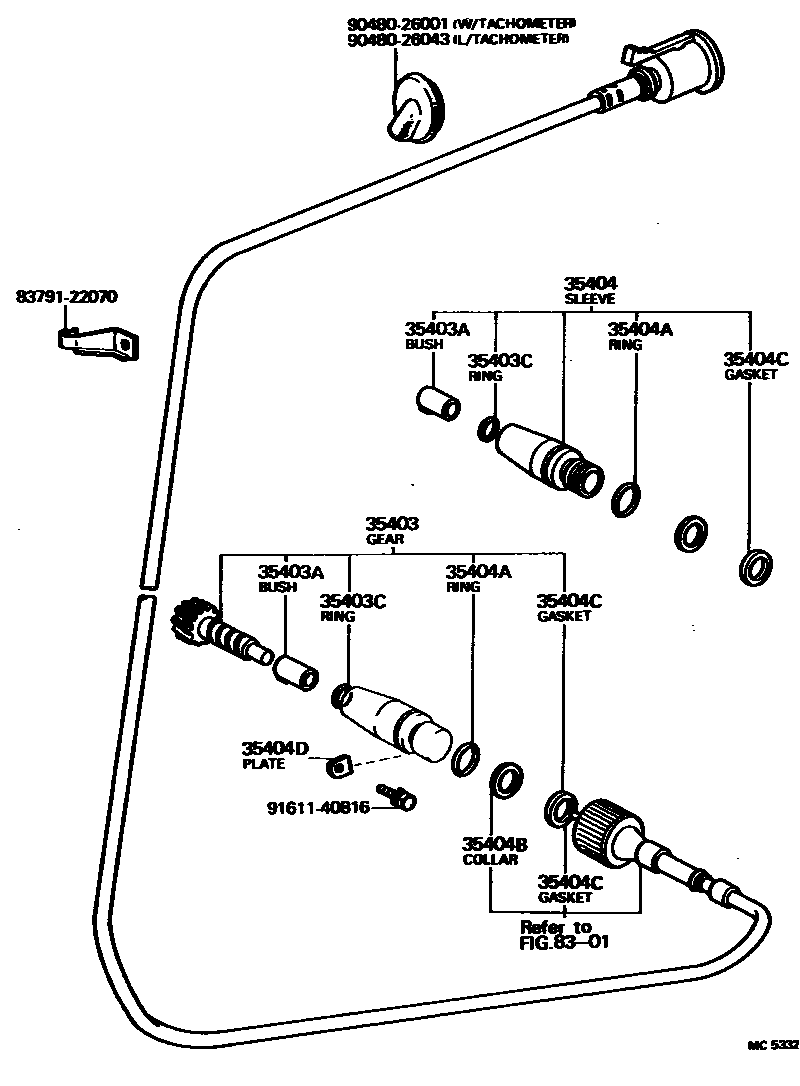

SPEEDOMETER DRIVEN GEAR (ATM)

35403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-29065iMX32..LG..CBR197808-198008

N=20

main33403-69026iMX3#197708-197808

N=19

35403ABUSH (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90386-09078iMX32..LG..CBR197708-198008

35403CRING, O (FOR AUTOMATIC TRANSMISSION SPEEDOMETER SHAFT)

main90301-09017iMX32..LG..CBR197708-198008

35404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-39016iMX32..LG..CBR197708-198008

35404ARING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iMX32..LG..CBR197708-198008

35404BCOLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (ATM)

main90201-07069iMX32..LG..CBR197708-198008

35404CGASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (ATM)

main90303-06017iMX32..LG..CBR197708-198008

35404DPLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30010iMX32..LG..CBR197708-198008

8301METER

→ Go to FIG 83-01

8379122070

main83791-22070

9048026001

main90480-26001

9048026043

main90480-26043

9161140816

main91611-40816

13 parts on this diagram · 1 diagram in section
