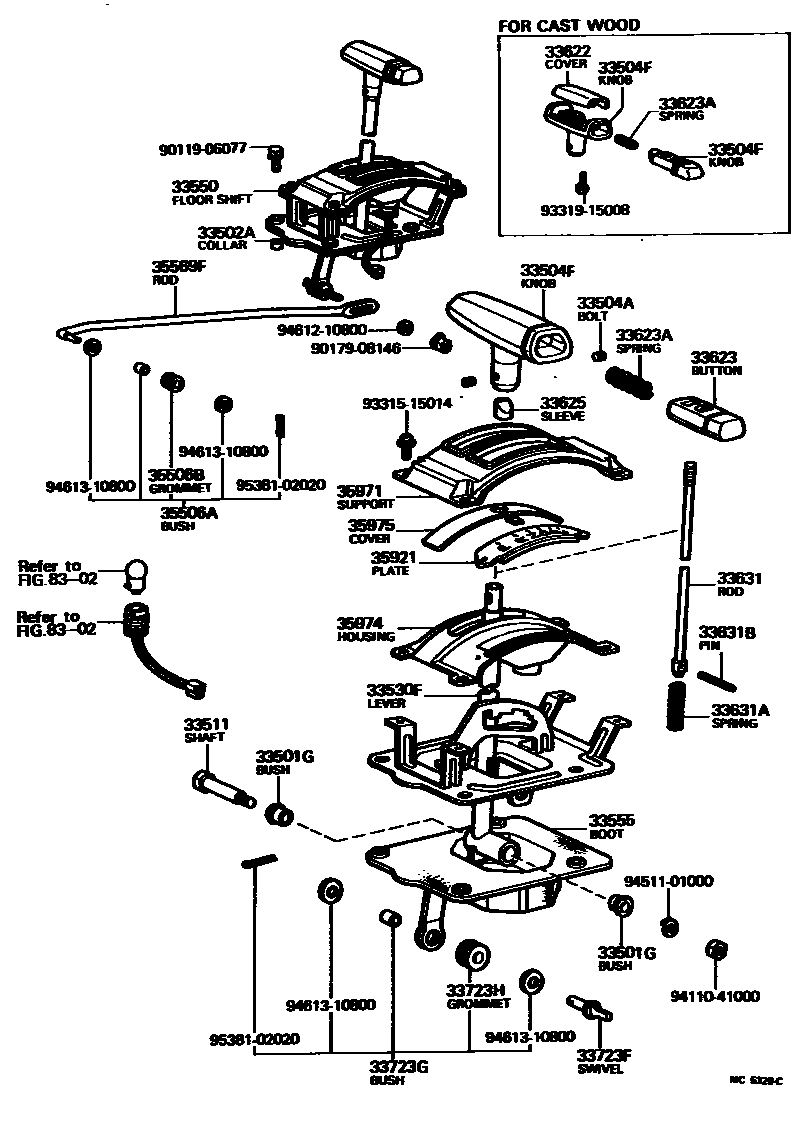

SHIFT LEVER & RETAINER
33501GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)
33502ACOLLAR (FOR FLOOR SHIFT SETTING)
OD=8.8
33504ABOLT OR PIN (FOR SHIFT LEVER KNOB SETTING)
33504FKNOB SUB-ASSY, SHIFT LEVER
DARK BROWN,WOODY
BROWN,WOODY
CAST WOOD
BLACK,BLACK
33511SHAFT, CONTROL (FOR FLOOR SHIFT)
33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33550FLOOR SHIFT ASSY, TRANSMISSION
BROWN,WOODY
DARK BROWN,WOODY
BLACK
CAST WOOD
33555BOOT, SHIFT LEVER
33622COVER, SHIFT LEVER KNOB, NO.1
33623BUTTON, SHIFT LEVER KNOB
33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
33625SLEEVE, SHIFT LEVER KNOB
33631ROD, DETENT
33631ASPRING, COMPRESSION (FOR DETENT ROD)
33631BPIN, SLOTTED SPRING (FOR DETENT ROD)
33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)
33723HGROMMET (FOR FLOOR SHIFT CONTROL SHAFT)
35506ABUSH (FOR MANUAL VALVE LEVER SHAFT)
35506BGROMMET (FOR MANUAL VALVE LEVER SHAFT)
35569FROD, TRANSMISSION CONTROL, 1ST (FOR FLOOR SHIFT)
35921PLATE, CONTROL POSITION INDICATOR
35971SUPPORT, POSITION INDICATOR
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
8302INDICATOR
9011906077
main90119-06077
9017908146
main90179-08146
9331515014
main93315-15014
9331915008
main93319-15008
9411041000
main94110-41000
9451101000
main94511-01000
9461210800
main94612-10800
9461310800
main94613-10800
9538102020
main95381-02020
35 parts on this diagram · 1 diagram in section
