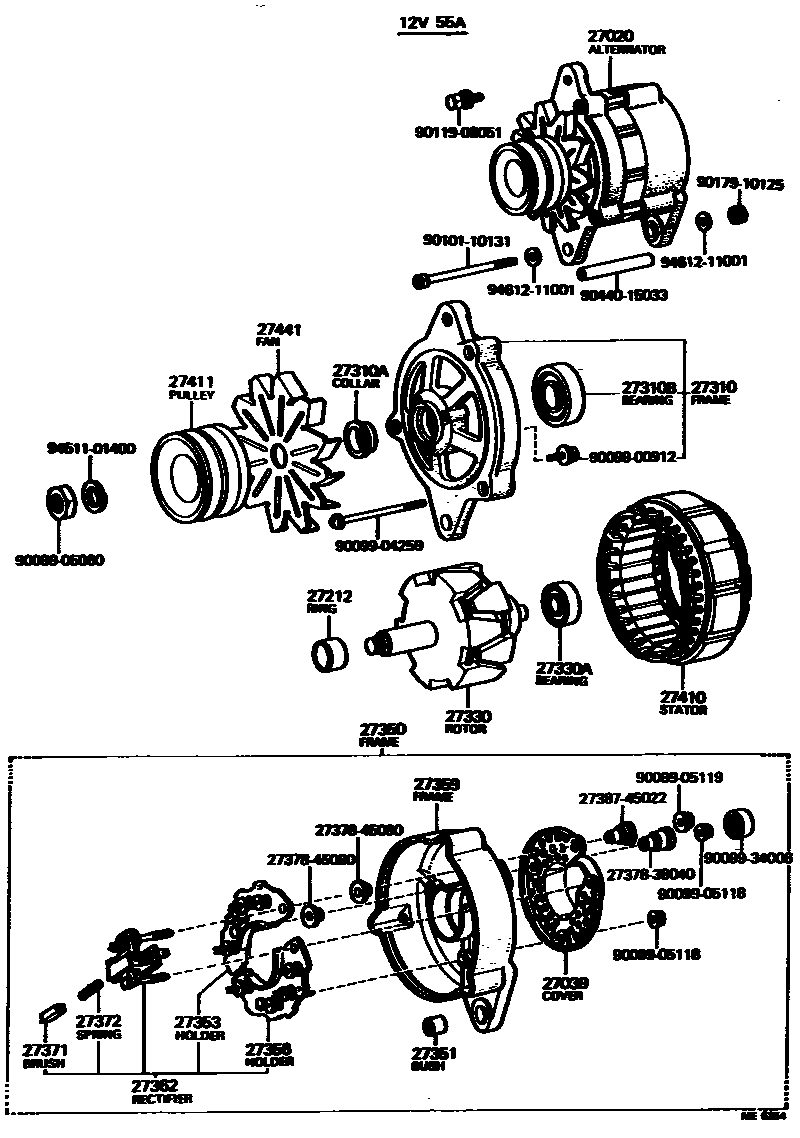

ALTERNATOR

0001 1 0002 1 0003 1

27020ALTERNATOR ASSY

main27020-41080i4M..MX32..LG197808-197903

12V 55A,W/O REGULATOR

main27020-41081i4M..MX32..LG197903-197908

12V 55A,W/O REGULATOR

main27020-45100i4M..MX3#197708-197808

12V 55A

main27020-45110i4M..MX3#197708-197808

12V 60A W/O REGULATOR

main27020-45121i4ME..MX3#197908-198008

12V 60A,W/O REGULATOR

27039COVER, ALTERNATOR REAR END

main27039-38050i4M..MX3#197708-197808

12V 55A

main27039-45110i4M..MX3#197708-197808

12V 60A

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27412-45070i4M..MX32..LG197708-198008

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-45070i4M..MX3#197708-197808

12V 55A

main27310-45110i4M..MX3#197708-197808

12V 60A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-31040i4M..MX32..LG197708-198008

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10125i4M..MX32..LG197708-198008

6203DDU8

27330ROTOR ASSY, ALTERNATOR

main27330-45070i4M..MX3#197708-197808

12V 55A

main27330-45090i4M..MX3#197708-197808

12V 60A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10116i4M..MX32..LG197708-198008

6201VV8

27350FRAME ASSY, RECTIFIER END

main27350-45100i4M..MX3#197708-197808

12V 55A

main27350-45110i4M..MX3#197708-197808

12V 60A

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i4M..MX3#197708-197808

27353HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR

main27353-45100i4M..MX3#197708-197808

12V 55A

main27353-45110i4M..MX3#197708-197808

12V 60A

27356HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR

main27356-45100i4M..MX3#197708-197808

12V 55A

main27356-45110i4M..MX3#197708-197808

12V 60A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-38050i4M..MX3#197708-197808

12V 55A

main27359-45110i4M..MX3#197708-197804

12V 60A

main27359-45111i4M..MX3#197804-197808

12V 60A

main27359-45121i4M..MX32..LG197808-197903

main27359-45122i4M..MX32..LG197903-198008

27362RECTIFIER ASSY, W/BRUSH

main27362-41080i4M..MX32..LG197808-197908

main27362-45100i4M..MX3#197708-197808

12V 55A

main27362-45110i4M..MX3#197708-197808

12V 60A

main27362-45120i4ME..MX3#197908-198007

main27362-70020i4ME..MX3#198007-198008

27371BRUSH, ALTERNATOR

main27371-31011×2i4M..MX3#197708-197808

main27371-44070×2i4M..MX32..LG197808-198007

27372SPRING, ALTERNATOR BRUSH

main27372-31011×2i4M..MX3#197708-197808

main90099-17114×2i4M..MX32..LG197808-198007

27410STATOR ASSY, ALTERNATOR

main27410-41080i4M..MX32..LG197808-197908

main27410-45070i4M..MX3#197708-197808

main27410-45120i4ME..MX3#197908-198008

27411PULLEY, ALTERNATOR

main27411-41071i4M..MX32..LG197708-198008

27441FAN, ALTERNATOR

main27441-34030i4M..MX3#197708-197808

12V 55A

main27441-45110i4M..MX3#197708-197808

12V 60A

2737838040INSULATOR, ALTERNATOR, NO.1

main27378-38040

2737845090INSULATOR, ALTERNATOR, NO.1

main27378-45090

2738745022INSULATOR, TERMINAL

main27387-45022

9009900912

main90099-00912

9009904259

main90099-04259

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9009934006

main90099-34006

9010110131

main90101-10131

9011908051

main90119-08051

9017910125

main90179-10125

9044015033

main90440-15033

9451101400

main94511-01400

9461211001

main94612-11001
