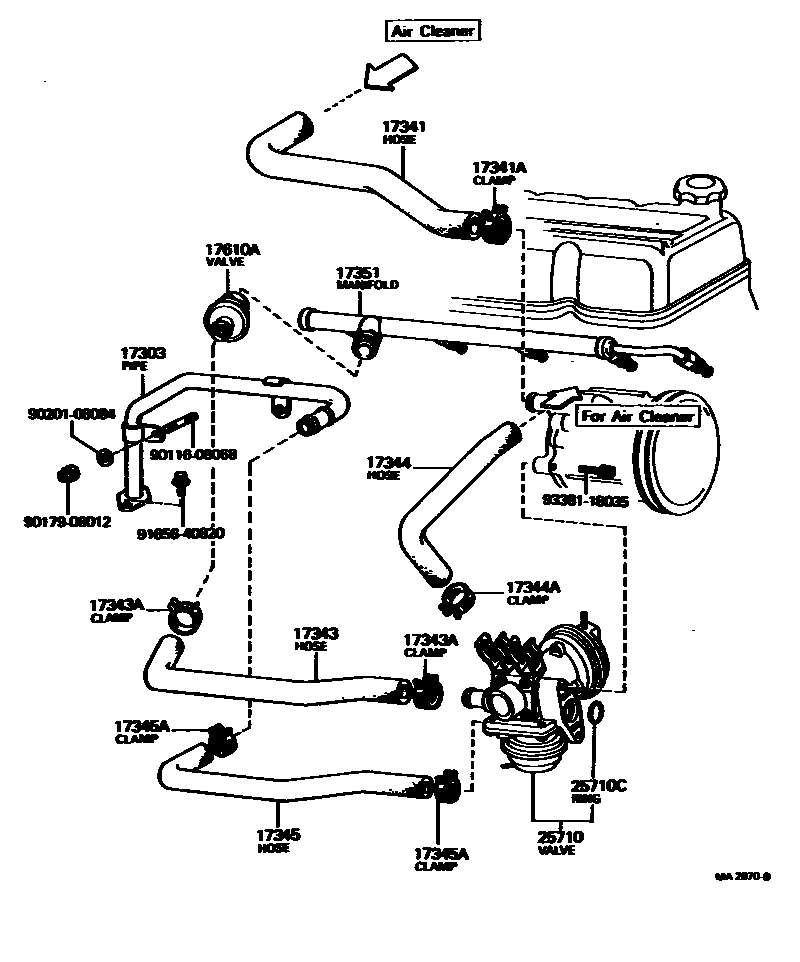

MANIFOLD AIR INJECTION SYSTEM

17303PIPE SUB-ASSY, AIR

main17303-41041i4M..MX32..LG197708-197908

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-45030i4M..MX32..LG197708-197908

17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)

main90467-28001i4M..MX32..LG197708-197908

17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)

main17343-45020i4M..MX32..LG197708-197908

17343ACLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)

main90467-26001×2i4M..MX32..LG197708-197908

17344HOSE, NO.4(FOR AIR INJECTION SYSTEM)

main17344-45020i4M..MX32..LG197708-197908

17344ACLAMP OR CLIP, NO.4(FOR AIR INJECTION SYSTEM HOSE, NO.4)

main90467-26001i4M..MX32..LG197708-197908

17345HOSE, NO.5(FOR AIR INJECTION SYSTEM)

main17345-45010i4M..MX32..LG197708-197908

17345ACLAMP OR CLIP, NO.5(FOR AIR INJECTION SYSTEM HOSE, NO.5)

main90467-23001×2i4M..MX32..LG197708-197908

17351MANIFOLD, AIR INJECTION

main17351-41040i4M..MX32..LG197808-197908

main17351-45040i4M..MX3#197708-197808

17610AVALVE, CHECK(FOR AIR INJECTION SYSTEM)

main90917-10051i4M..MX32..LG197708-197908

25710VALVE ASSY, AIR SWITCHING

main25710-45020i4M..MX3#197708-197808

main25710-45040i4M..MX32..LG197808-197908

25710CRING, O

main96710-01022i4M..MX32..LG197708-197908

9011608068

main90116-08068

9017908012

main90179-08012

9020108084

main90201-08084

9165640820

main91656-40820

9338118035

main93381-18035

18 parts on this diagram · 1 diagram in section
