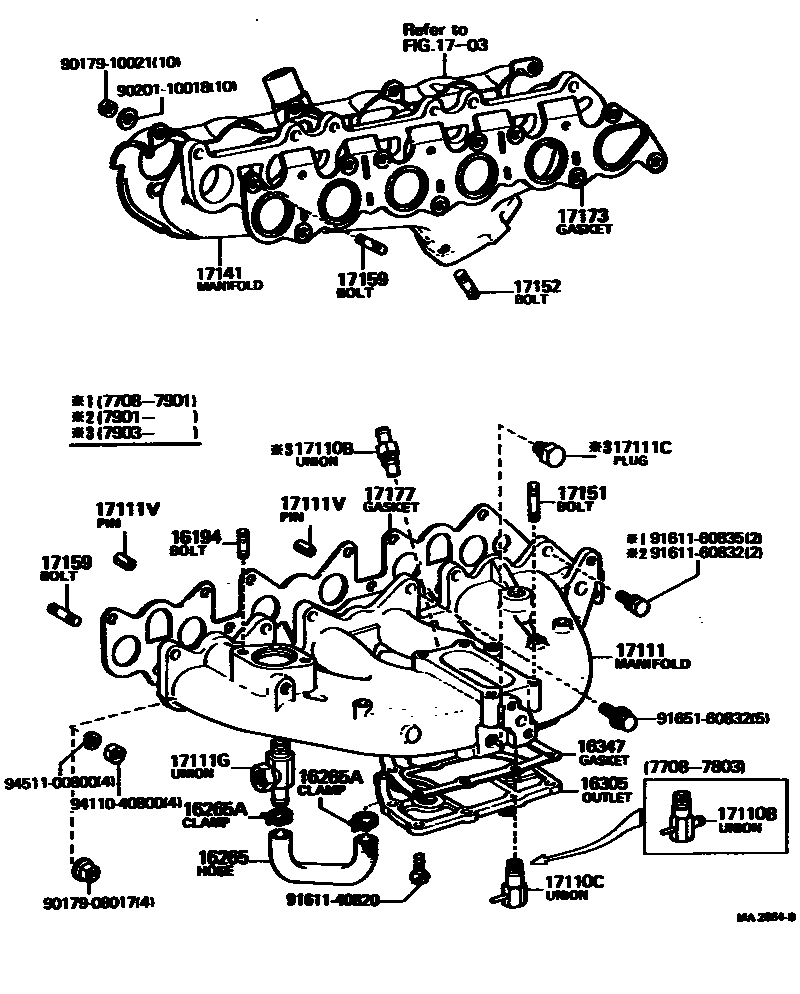

MANIFOLD
16194BOLT, STUD(FOR WATER OUTLET SETTING)
16265HOSE, INTAKE MANIFOLD WATER
16265ACLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
16305OUTLET SUB-ASSY, WATER BY-PASS
16347GASKET, WATER BY-PASS
1703AIR CLEANER
17110BUNION(FOR VENTILATION HOSE TO MANIFOLD)
17110CUNION(FOR AIR CLEANER TO MANIFOLD)
17111MANIFOLD, INTAKE
17111CPLUG, NO.3
17111GUNION(FOR INTAKE MANIFOLD WATER)
17111VPIN, STRAIGHT(FOR INTAKE MANIFOLD SETTING)
17141MANIFOLD, EXHAUST
17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
L=36,S=15&15
L=41,S=14&20
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE,L=44,S=12&18
EXHAUST LOWER,L=53,S=15&29
EXHAUST UPPER,L=57,S=15&31
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
9017908017
main90179-08017
9017910021
main90179-10021
9020110018
main90201-10018
9161140820
main91611-40820
9161160832
main91611-60832
9161160835
main91611-60835
9165160832
main91651-60832
9411040800
main94110-40800
9451100800
main94511-00800
27 parts on this diagram · 2 diagrams in section
