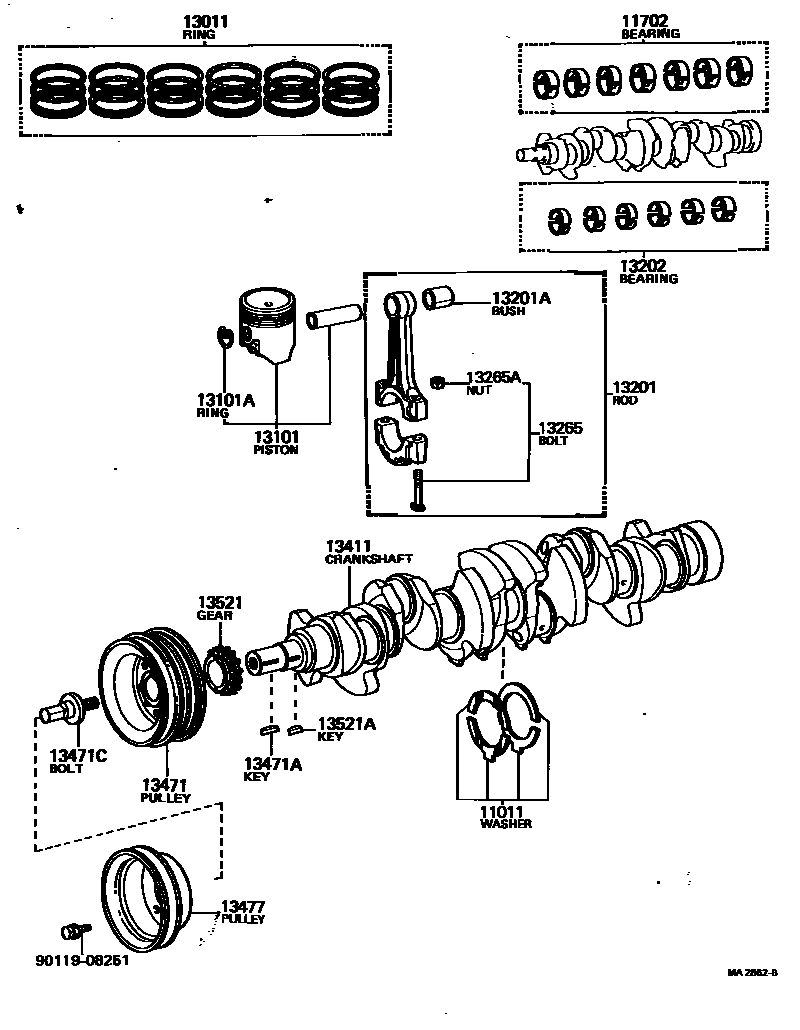

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD,STD
STD,STD
O/S 0.125,O/S 0.125
O/S 0.125,O/S 0.125
O/S 0.250,O/S 0.25
11702BEARING SET, CRANKSHAFT
STD,STD
U/S 0.05,U/S 0.05
U/S 0.25,U/S 0.25
U/S 0.50,U/S 0.50
13011RING SET, PISTON
STD,STD
O/S 0.50,O/S 0.50
O/S 0.75,O/S 0.75
O/S 1.00,O/S 1.00
13101PISTON SUB-ASSY, W/PIN
STD,STD
O/S 0.50,O/S 0.50
O/S 0.75,O/S 0.75
O/S 1.00,O/S 1.00
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13201ABUSH(FOR CONNECTING ROD SMALL END)
13202BEARING SET, CONNECTING ROD
STD,STD
U/S 0.05,U/S 0.05
U/S 0.25,U/S 0.25
U/S 0.50,U/S 0.50
13265BOLT, CONNECTING ROD
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
13411CRANKSHAFT
13471PULLEY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13477PULLEY, CRANKSHAFT, NO.2
W/COOLER
W/COOLER
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
N=20
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
9011908251
main90119-08251
18 parts on this diagram · 1 diagram in section
