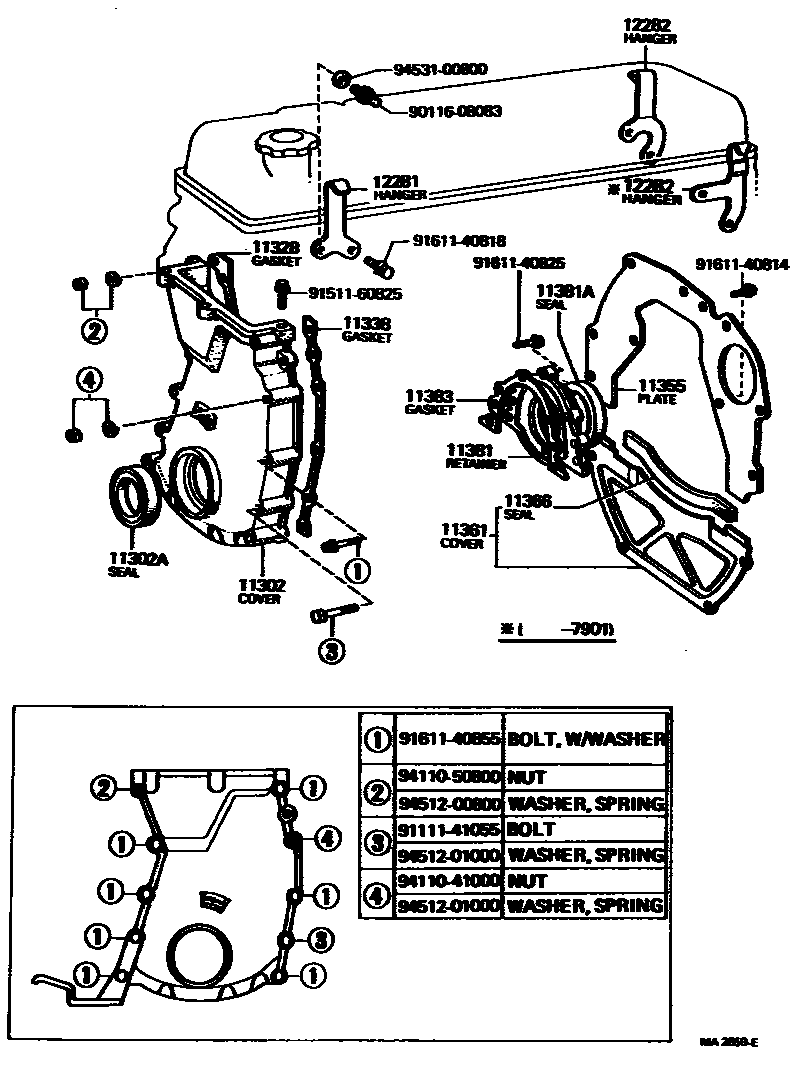

TIMING GEAR COVER & REAR END PLATE
11302COVER SUB-ASSY, TIMING CHAIN OR BELT
11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
TC3 45 68 12
11328GASKET, TIMING GEAR OR CHAIN COVER
11338GASKET, TIMING CHAIN COVER, NO.2
11355PLATE, REAR END
11361COVER, FLYWHEEL HOUSING UNDER
11366SEAL, FLYWHEEL HOUSING UNDER COVER DUST
11381RETAINER, ENGINE REAR OIL SEAL
11381ASEAL, ENGINE REAR OIL
HTC 80 100 12
11383GASKET, ENGINE REAR OIL SEAL RETAINER
12281HANGER, ENGINE, NO.1
12282HANGER, ENGINE, NO.2
9011608083
main90116-08083
9111141055
main91111-41055
9151160825
main91511-60825
9161140814
main91611-40814
9161140818
main91611-40818
9161140825
main91611-40825
9161140855
main91611-40855
9411041000
main94110-41000
9411050800
main94110-50800
9451200800
main94512-00800
9451201000
main94512-01000
9453100800
main94531-00800
24 parts on this diagram · 1 diagram in section
