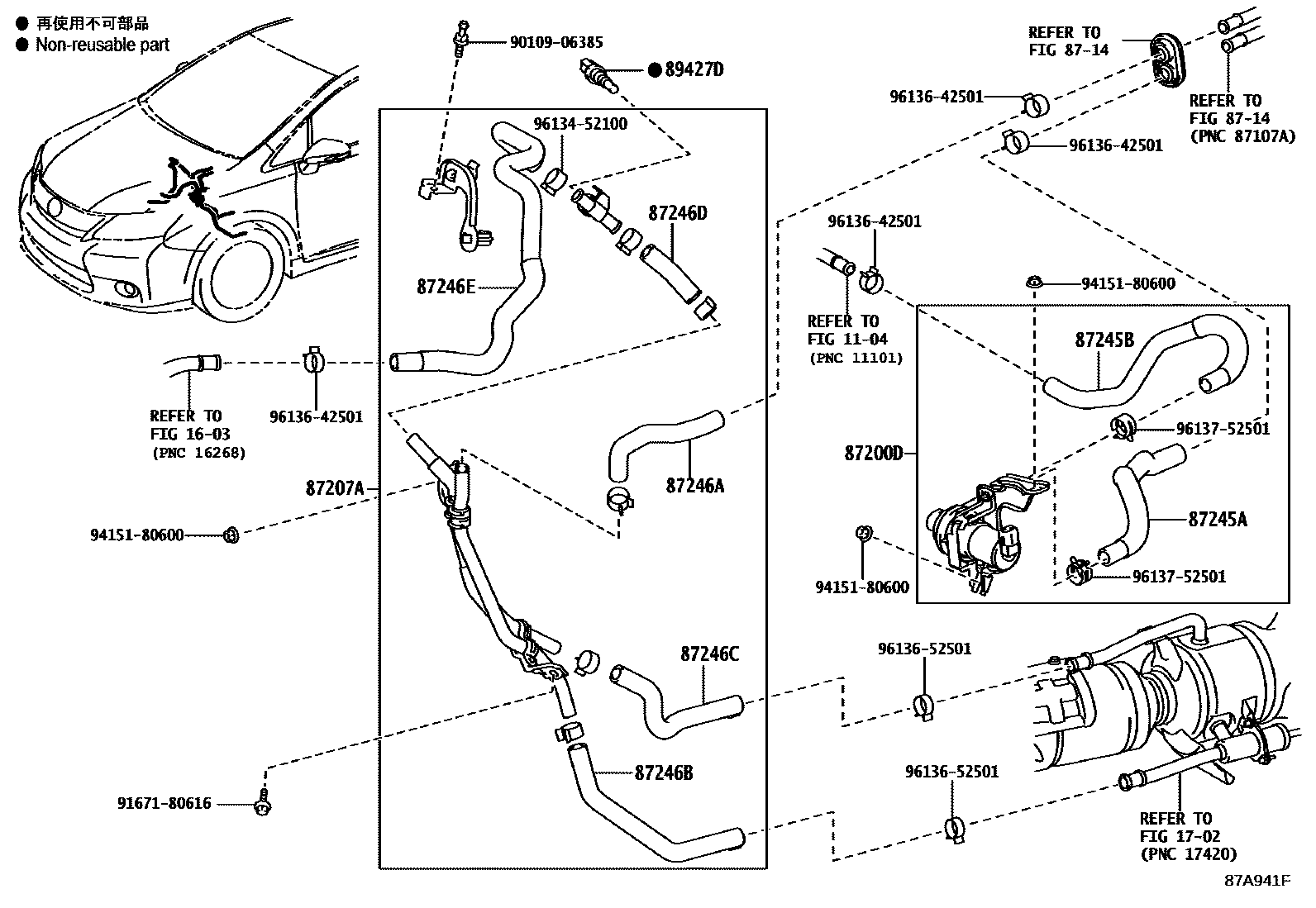

HEATING & AIR CONDITIONING - WATER PIPING

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1702EXHAUST PIPE

→ Go to FIG 17-02

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87200DACCESSORY ASSY, HEATER

main87200-75010iANF10200907-201201

87207APIPE & HOSE SUB-ASSY, WATER A

main87207-75010iANF10200907-201201

87245AHOSE, HEATER WATER, INLET A

main87245-75010iANF10200907-201201

87245BHOSE, HEATER WATER, INLET B

main87245-75020iANF10200907-201201

87246AHOSE, HEATER WATER, OUTLET A

main87245-75030iANF10200907-201201

87246BHOSE, HEATER WATER, OUTLET B

main87245-75040iANF10200907-201201

87246CHOSE, HEATER WATER, OUTLET C

main87245-75050iANF10200907-201201

87246DHOSE, HEATER WATER, OUTLET D

main87245-75060iANF10200907-201201

87246EHOSE, HEATER WATER, OUTLET E

main87245-75070iANF10200907-201201

89427DSWITCH, TEMPERATURE

main89428-12170iANF10200907-201201

9010906385

main90109-06385

9167180616

main91671-80616

9415180600

main94151-80600

9613452100

main96134-52100

9613642501

main96136-42501

9613652501

main96136-52501

9613752501

main96137-52501

21 parts on this diagram · 1 diagram in section
