HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0002 1AIR DUCT 0003 1SENSOR

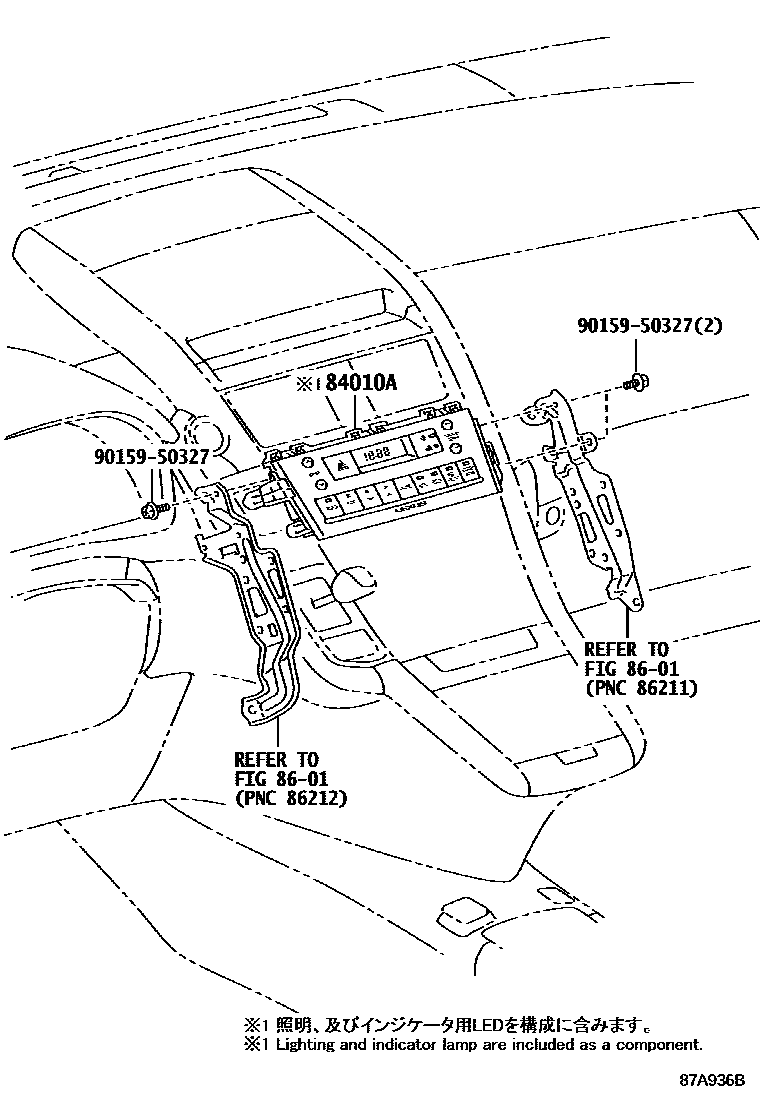

84010ACONTROL & PANEL ASSY, INTEGRATION

main84010-75040supersedes 84010-75030iANF10; ANF10..W200907-201201

BACK MONITOR(REAR TELEVISION CAMERA)-WITH; BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*WVFM)

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

9015950327

main90159-50327

3 parts on this diagram · 3 diagrams in section
