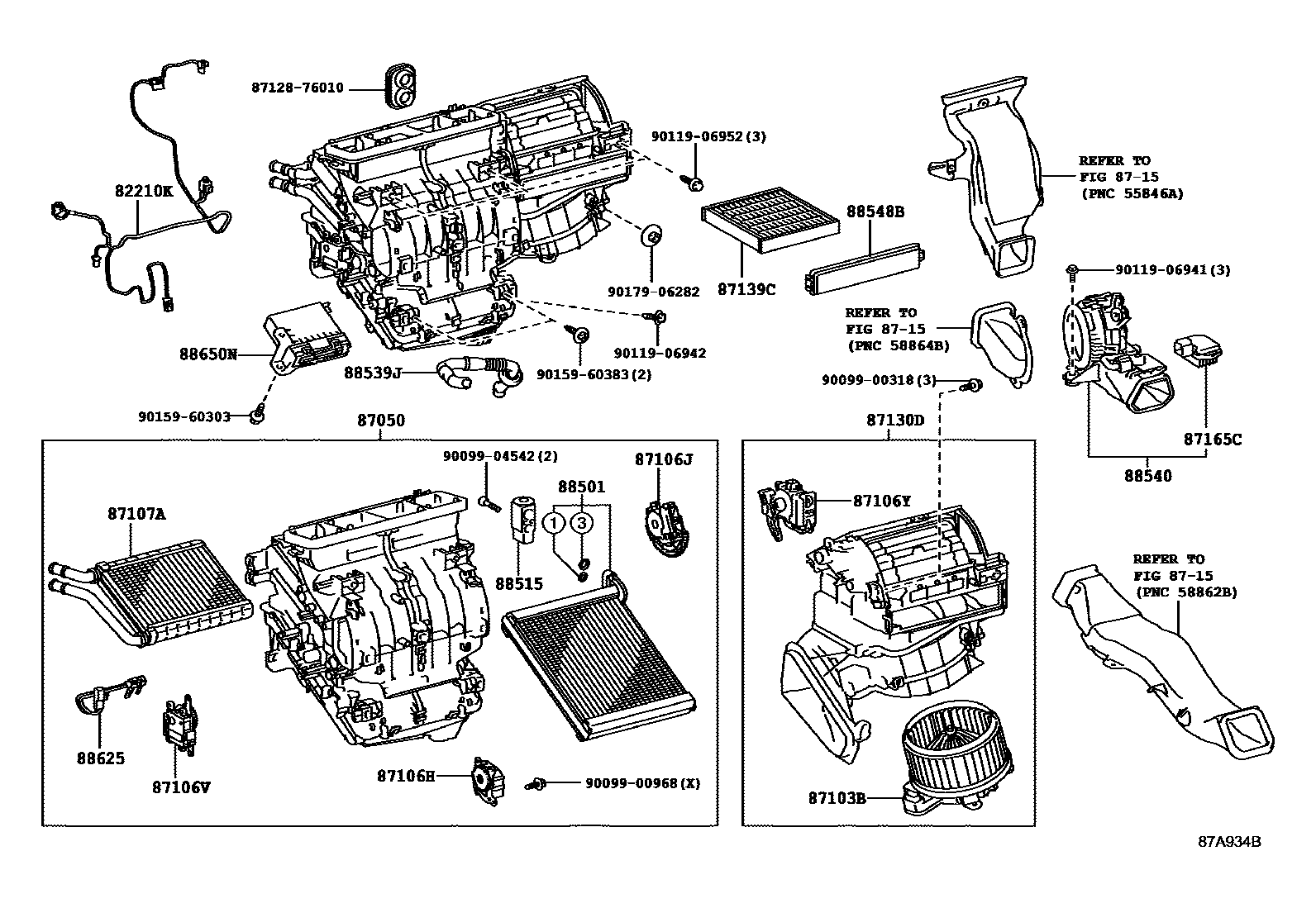

HEATING & AIR CONDITIONING - COOLER UNIT

82210KHARNESS ASSY, AIR CONDITIONER

main82212-12030i200907-201201

87050RADIATOR ASSY, AIR CONDITIONER

main87050-75030i200907-201201

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-75020i200907-201010

main87103-75021i201011-201201

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-12170i200907-201201

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-42100i200907-201201

87106VSERVO SUB-ASSY, DAMPER(FOR AIRMIX NO.2)

main87106-42090i200907-201201

87106YSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION & FRESH)

main87106-47130i200907-201201

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-42170i200907-201201

87130DBLOWER ASSY

main87130-75030i200907-201201

87139CFILTER, CLEAN AIR

main87139-30040i200907-201201

*393

main87139-50060i200907-201201

DEODORANT FILTER

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87165CCONTROL, BLOWER MOTOR

main87165-28020i200907-201201

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-75010i200907-201201

88515VALVE, COOLER EXPANSION

main88515-26070i200907-201201

88539JHOSE, DRAIN COOLER

main88539-12200i200907-201201

88540BLOWER ASSY, COOLER

main88540-75010i200907-201201

88548BCASE, AIR FILTER

main88548-42020i200907-201201

88625THERMISTOR, COOLER, NO.1

main88625-26090i200907-201201

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-75090i200907-201201

BACK MONITOR(REAR TELEVISION CAMERA)-WITH; BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*WVFM)

main88650-75110supersedes 88650-75060i200907-201201

CANADA SPEC&BACK MONITOR(REAR TELEVISION CAMERA)-WITH

main88650-75150supersedes 88650-75050i200907-201201

CANADA SPEC

8712876010GROMMET, HEATER

main87128-76010

9009900318

main90099-00318

9009900968

main90099-00968

9009904542

main90099-04542

9011906941

main90119-06941

9011906942

main90119-06942

9011906952

main90119-06952

9015960303

main90159-60303

9015960383

main90159-60383

9017906282

main90179-06282

29 parts on this diagram · 2 diagrams in section
